Basement drains without a backwater valve are ideally suited for basement rooms that lie above the backwater level, are already protected from backwater (for example, by a backwater chamber outside the building) or do not require additional protective measures for other reasons.
We supply our basement drains without a backwater valve with or without an odour trap and/or sludge bucket as well as with a horizontal or vertical outlet.
Basement drain

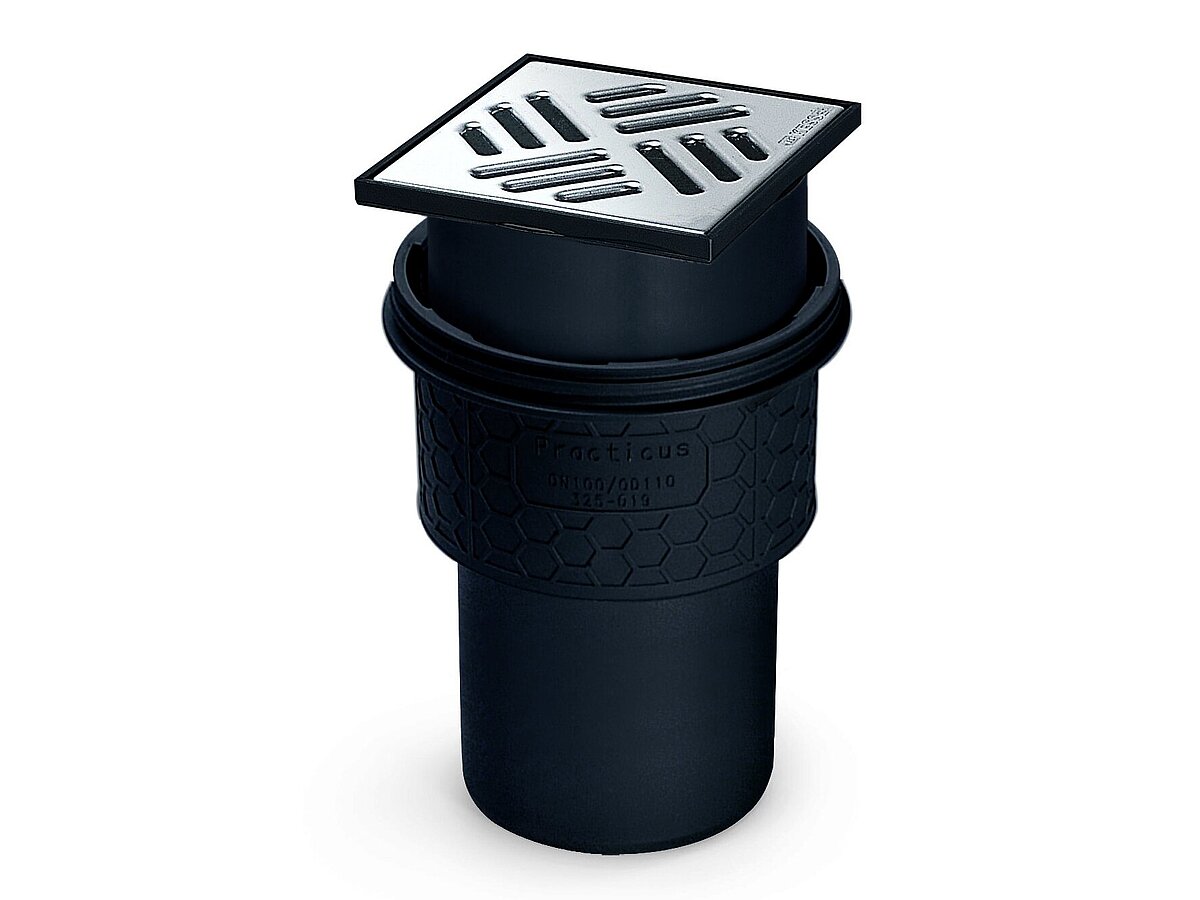

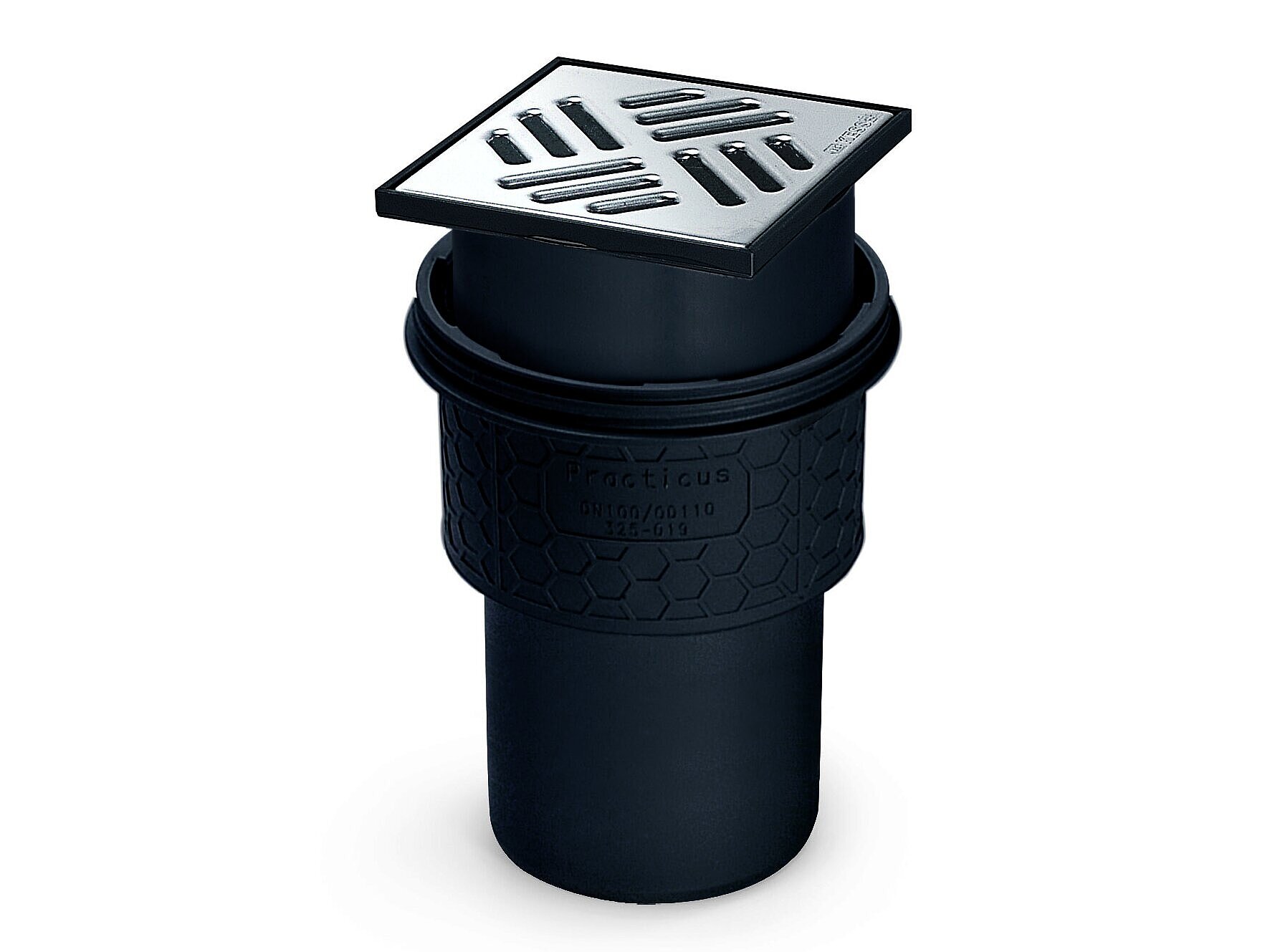

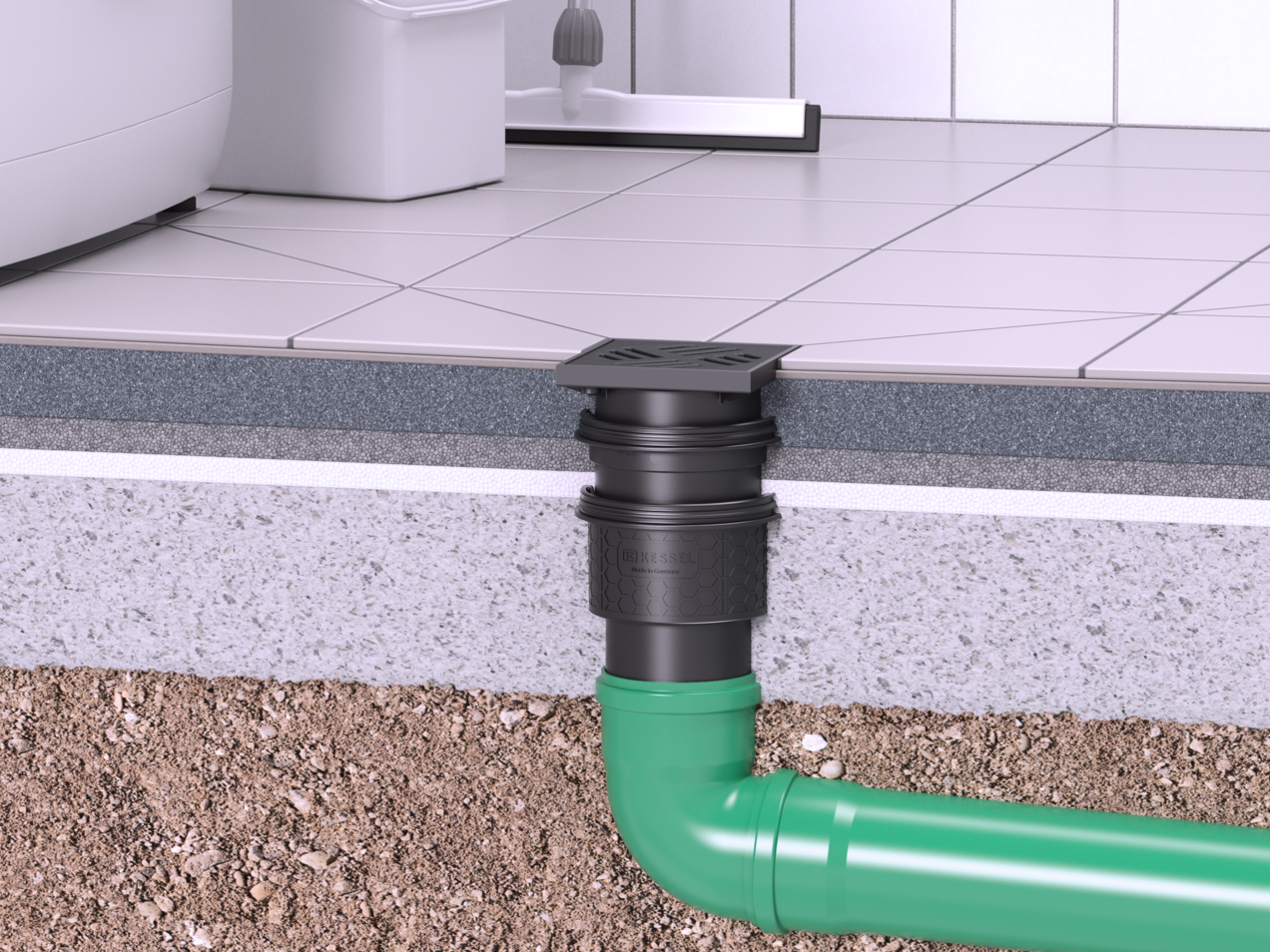

Vertical outlet
| Load class | Nominal size (DN) | Odour trap | Contents of sludge trap | Item no. | ||
|---|---|---|---|---|---|---|
29102 | 100 | included | yes | 29102 | Show | |
29103 | 100 | included | yes | 29103 | Show | |
29131 | K 3 (EN 1253-1) | 100 | included | yes | 29131 | Show |
29141 | K 3 (EN 1253-1) | 100 | included | yes | 29141 | Show |
34102 | K 3 (EN 1253-1) | 100 | no | yes | 34102 | Show |
45210.40 | K 3 (EN 1253-1) | 100 | included | no | 45210.40 | Show |

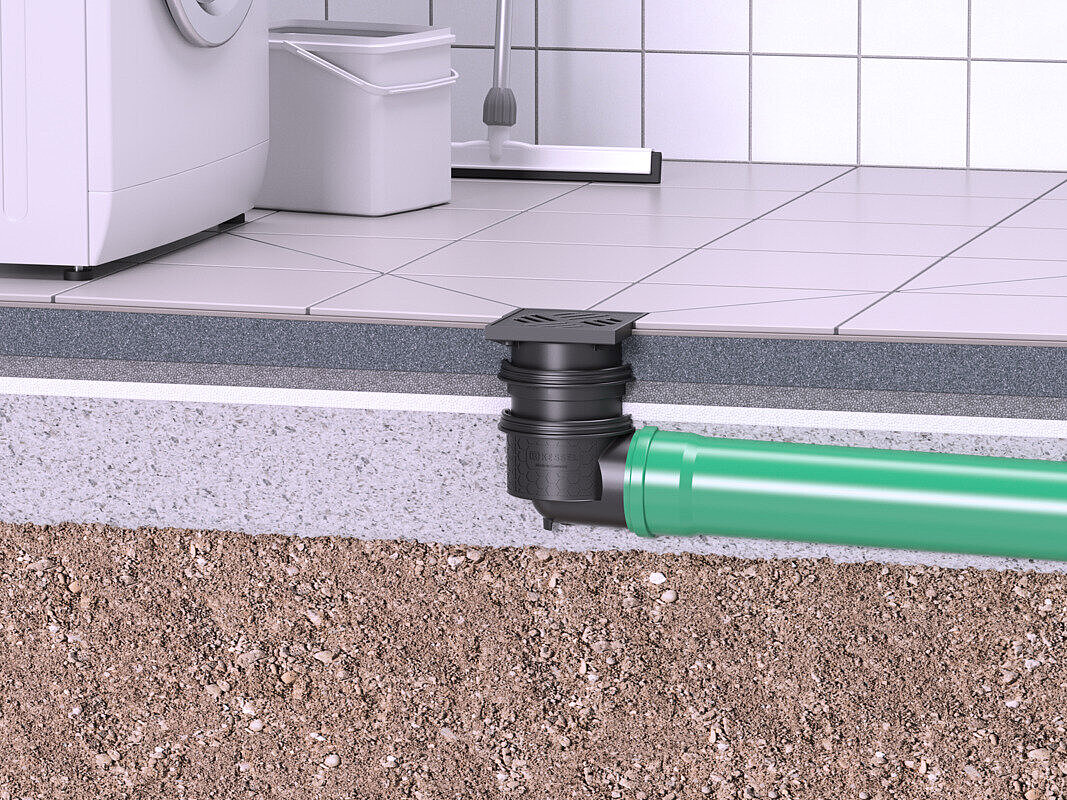

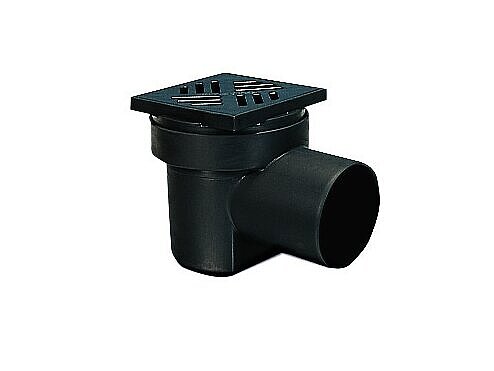

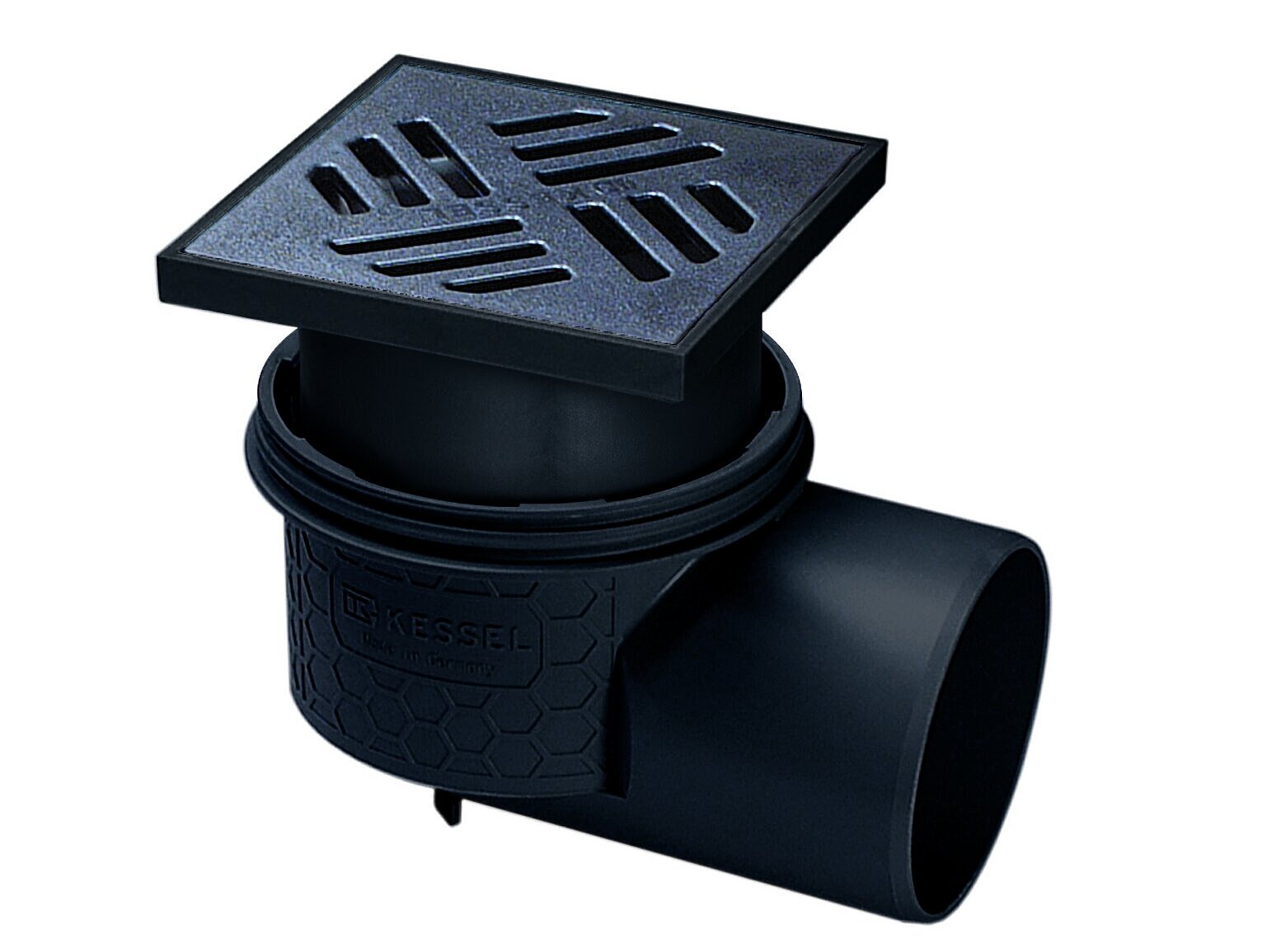

Horizontal outlet
| Load class | Nominal size (DN) | Odour trap | Contents of sludge trap | Item no. | ||
|---|---|---|---|---|---|---|
27611 | K 3 (EN 1253-1) | 100 | included | yes | 27611 | Show |
27621 | K 3 (EN 1253-1) | 100 | included | yes | 27621 | Show |
29101 | 100 | included | 29101 | Show | ||
33101 | K 3 (EN 1253-1) | 100 | included | yes | 33101 | Show |
34101 | K 3 (EN 1253-1) | 100 | no | yes | 34101 | Show |
36501 | K 3 (EN 1253-1) | 100 | included | yes | 36501 | Show |
45110.40 | K 3 (EN 1253-1) | 100 | included | no | 45110.40 | Show |
51101 | K 3 (EN 1253-1) | 100 | included | yes | 51101 | Show |
51102 | 100 | included | 51102 | Show |

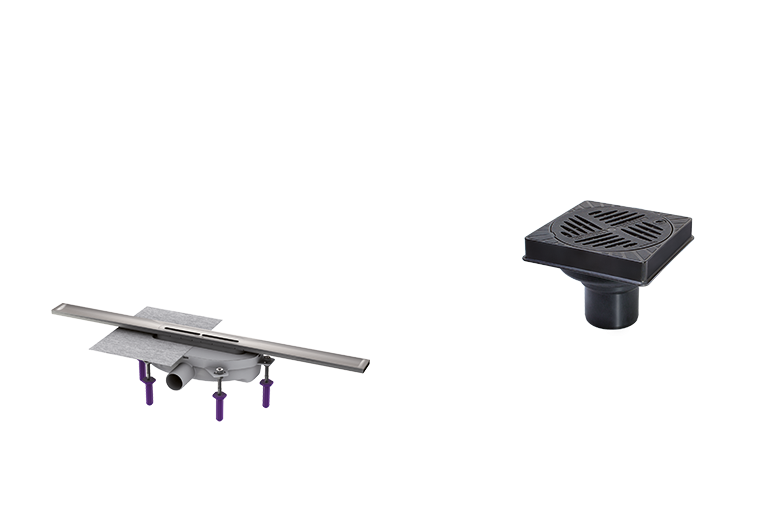

Not found the right product?
In addition to our standard drains and channels, we also develop customised solutions at the customer's request for special demands in terms of form, function and dimensioning.
