Aquapump XL pumping station

The flexible solution for residential, commercial and industrial applications.

Aquapump XL pumping station, wet installation

The demands are high where larger quantities of wastewater have to be disposed of: Here the Aquapump XL pumping station shows its strengths as a flexible drainage solution for apartment buildings as well as for commercial or industrial use.

The Aquapump XL is available as a Mono or Duo system with pumps in different performance classes, which can be designed for faecal and faecal-free wastewater. Many upper sections made of different materials ensure that the pumping station can be installed flexibly as a wet or dry installation at different installation locations.

Advantages  Product overview

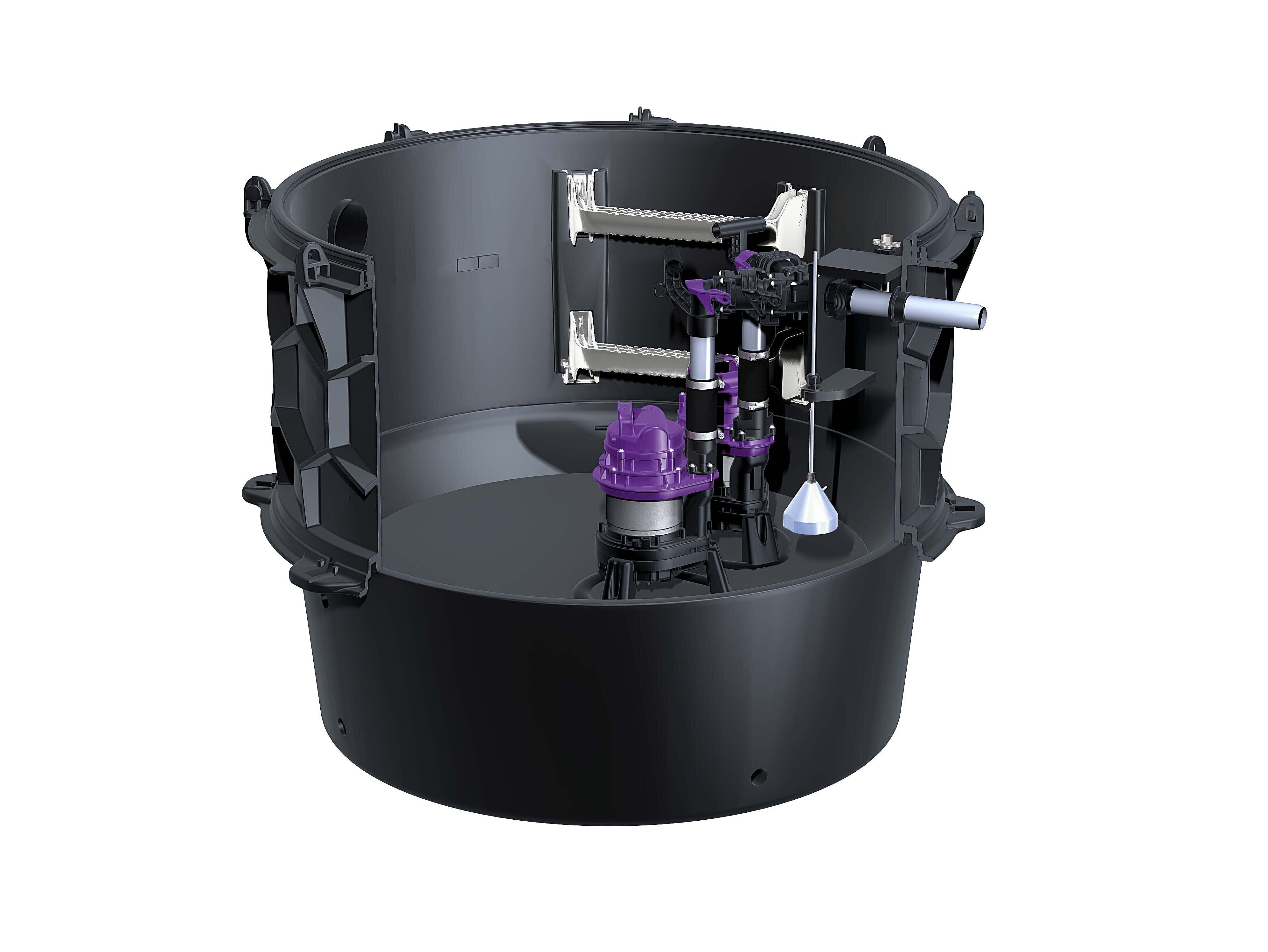

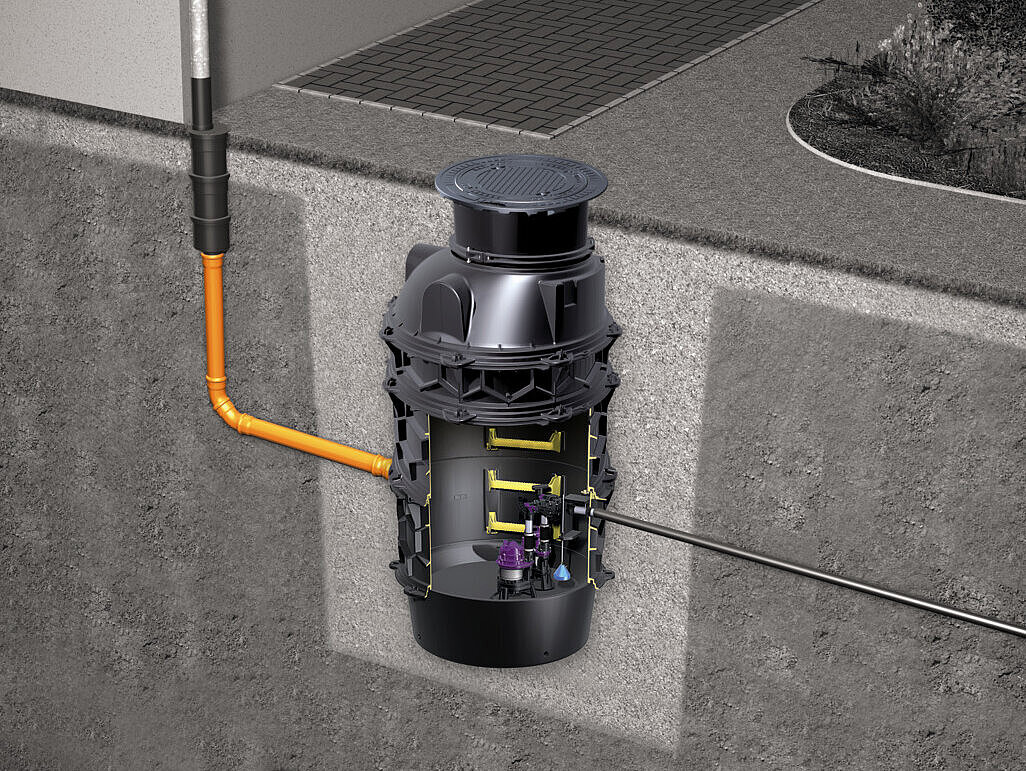

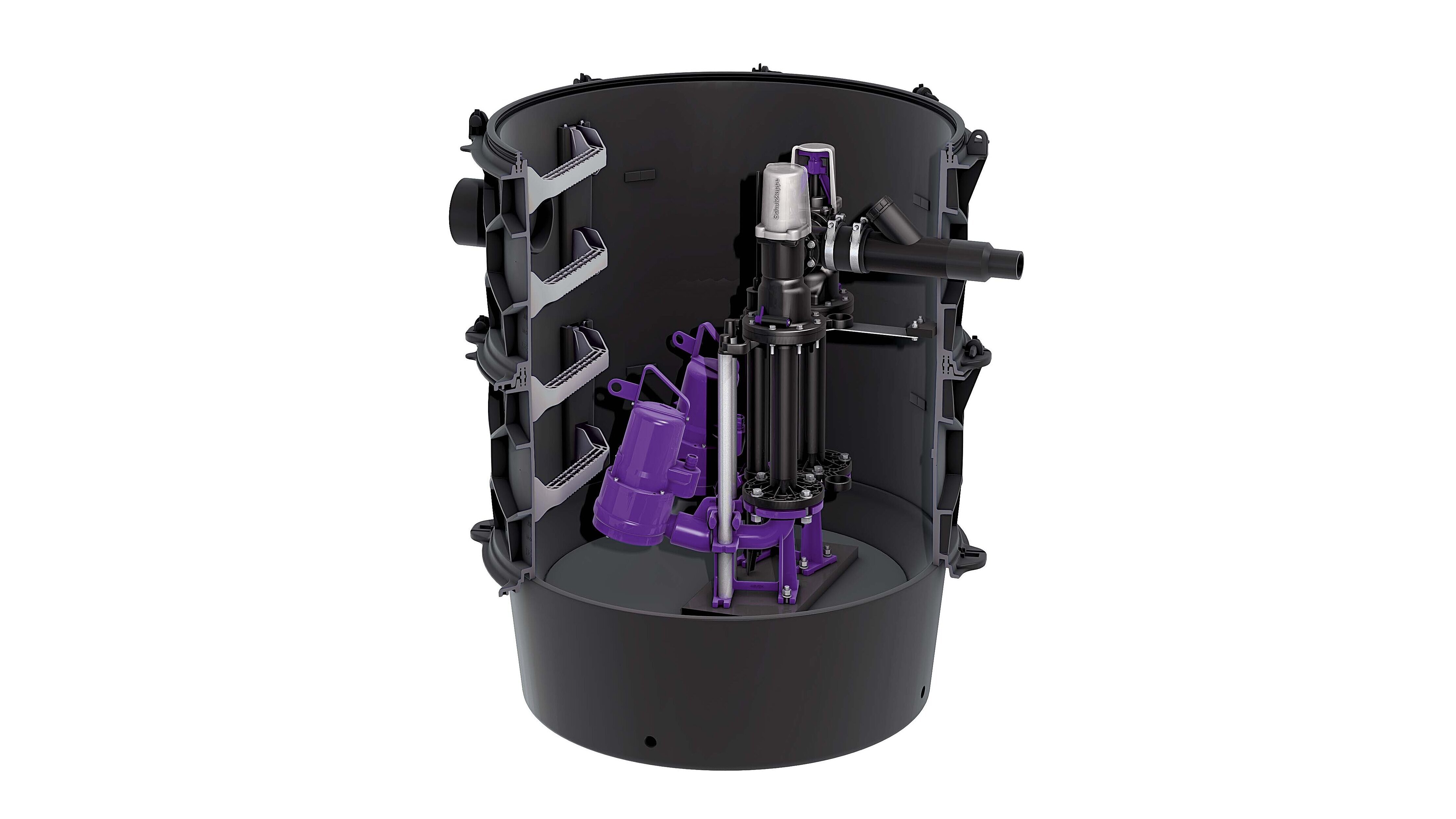

Aquapump XL pumping station, wet installation for faecal-free wastewater

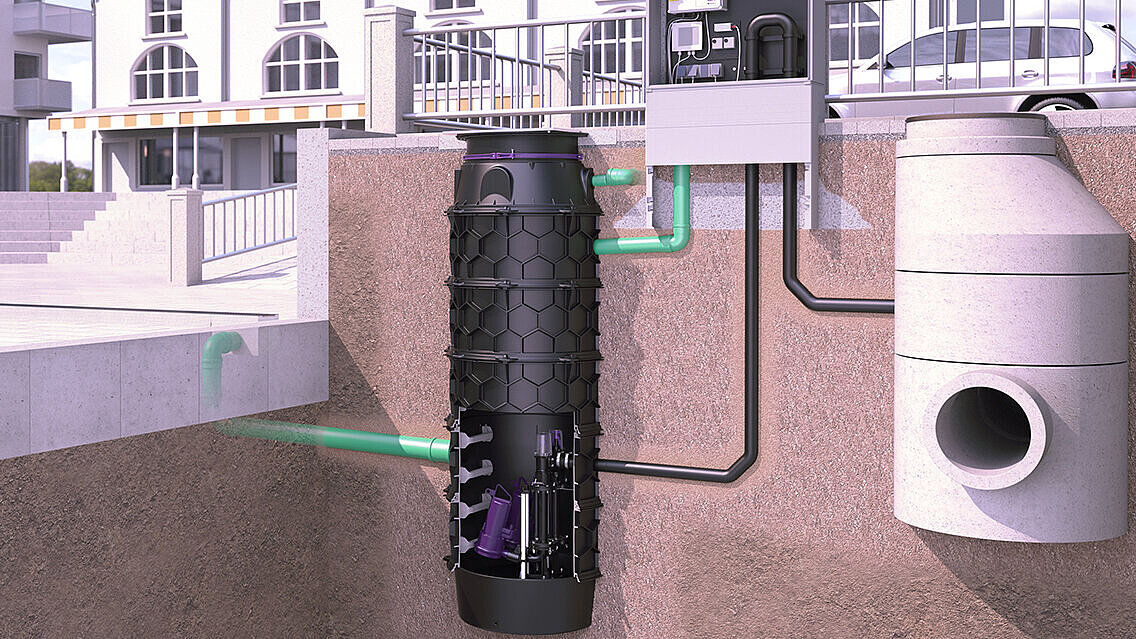

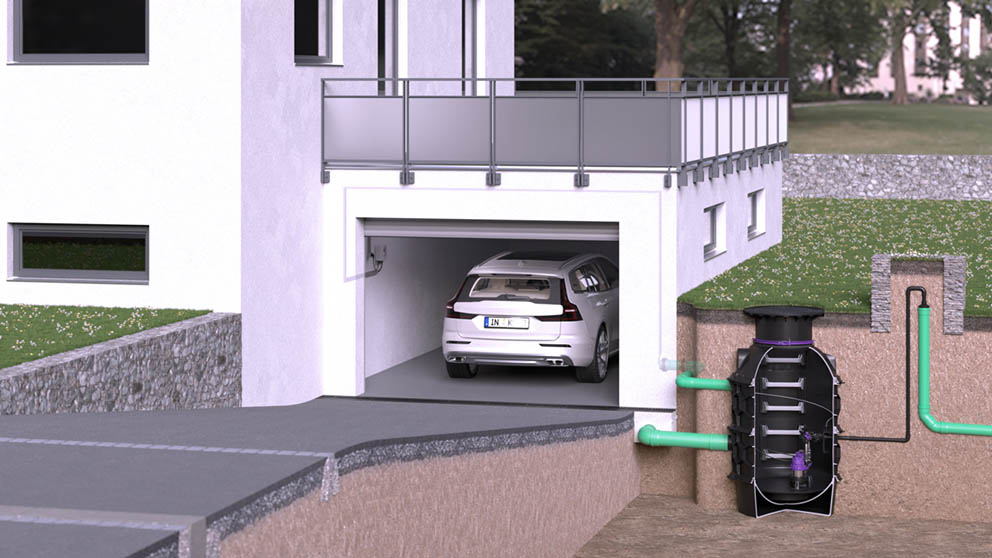

Installation diagram for Aquapump XL, wet installation for faecal-free wastewater

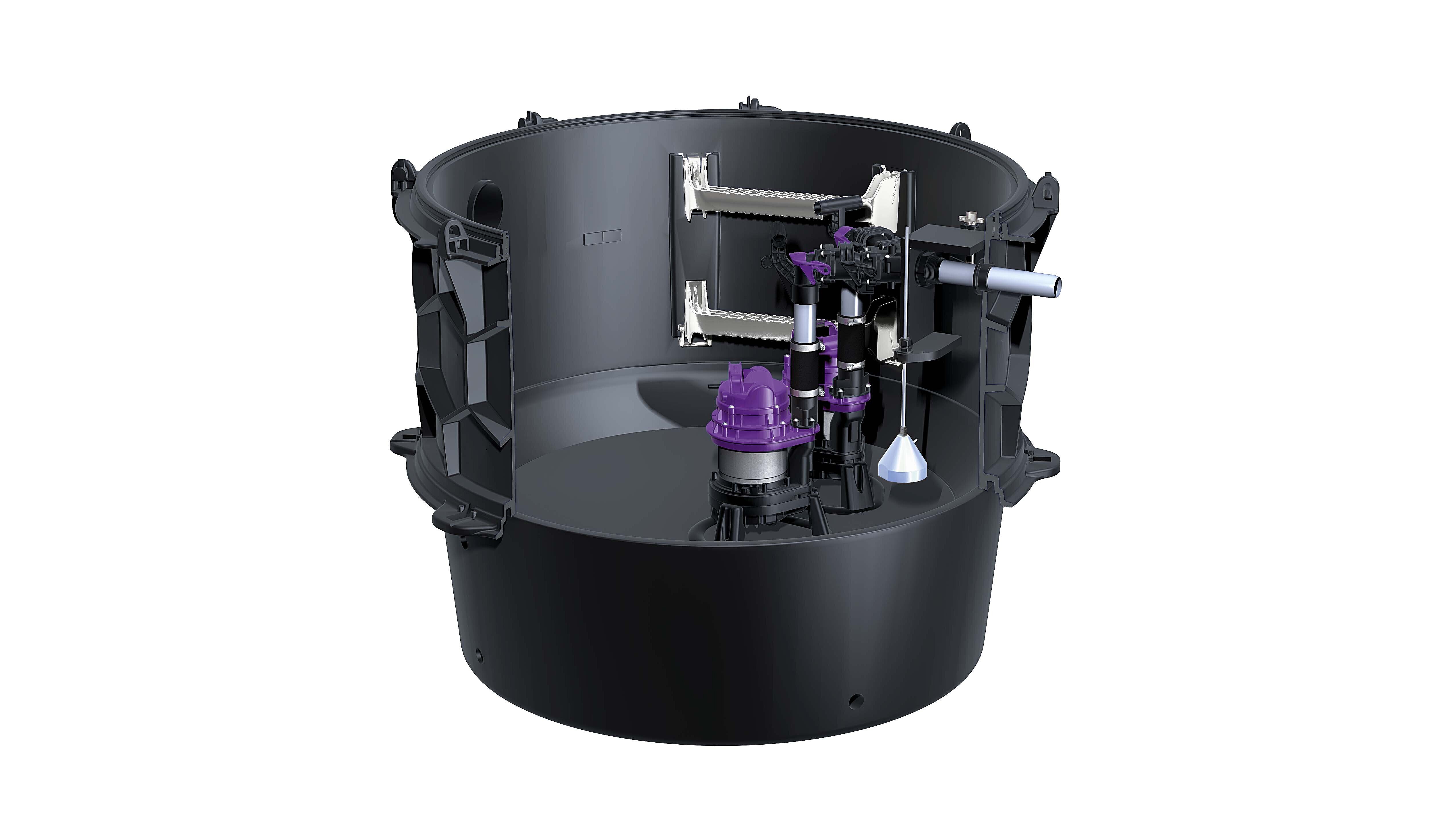

Installation diagram for Aquapump XL, wet installation for faecal-free wastewater

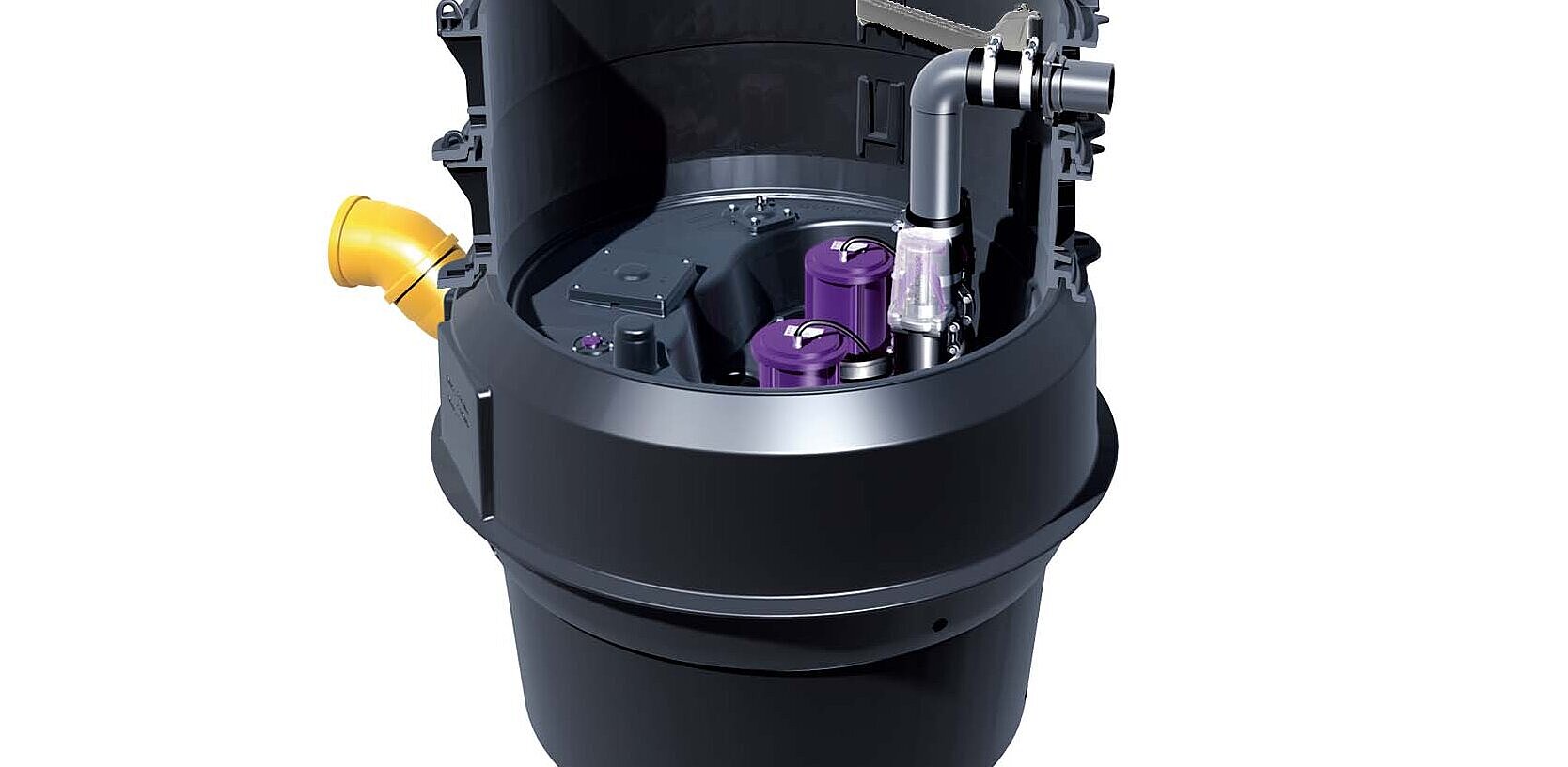

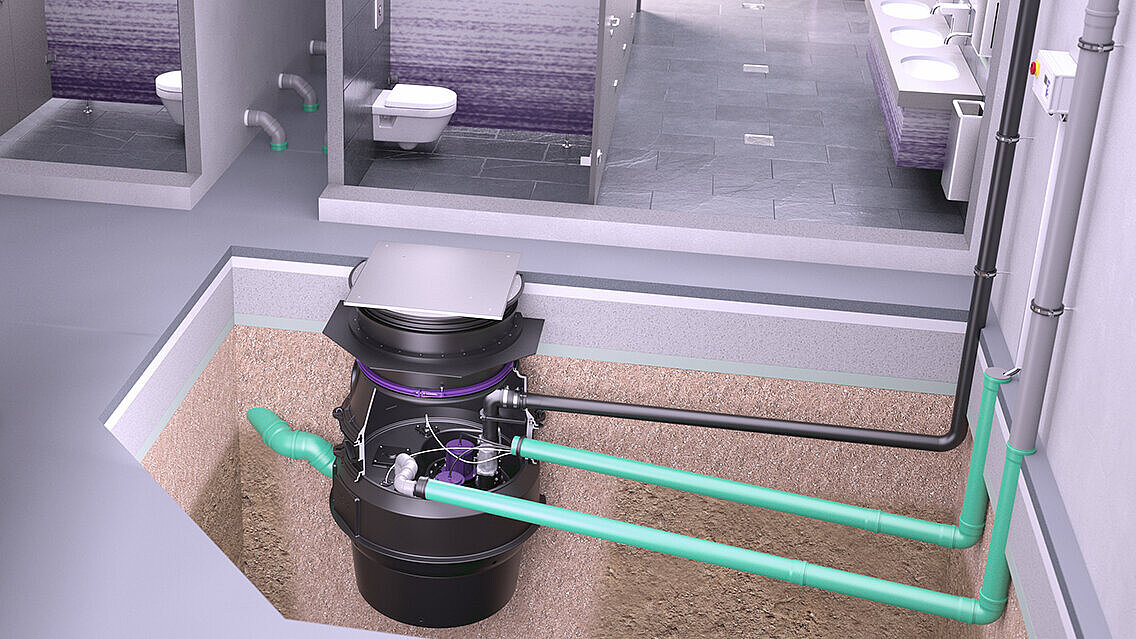

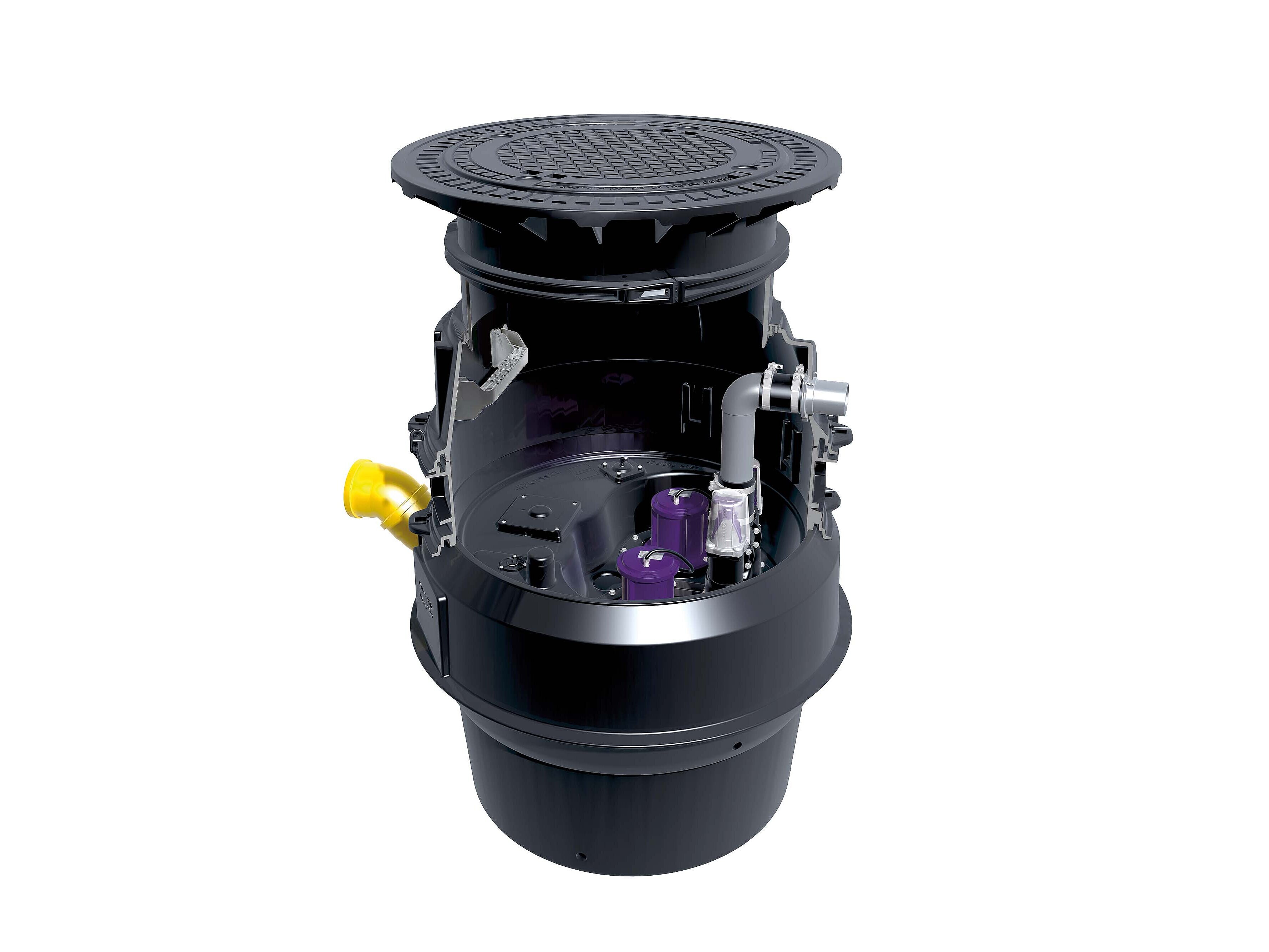

Aquapump XL pumping station, dry installation for faecal wastewater

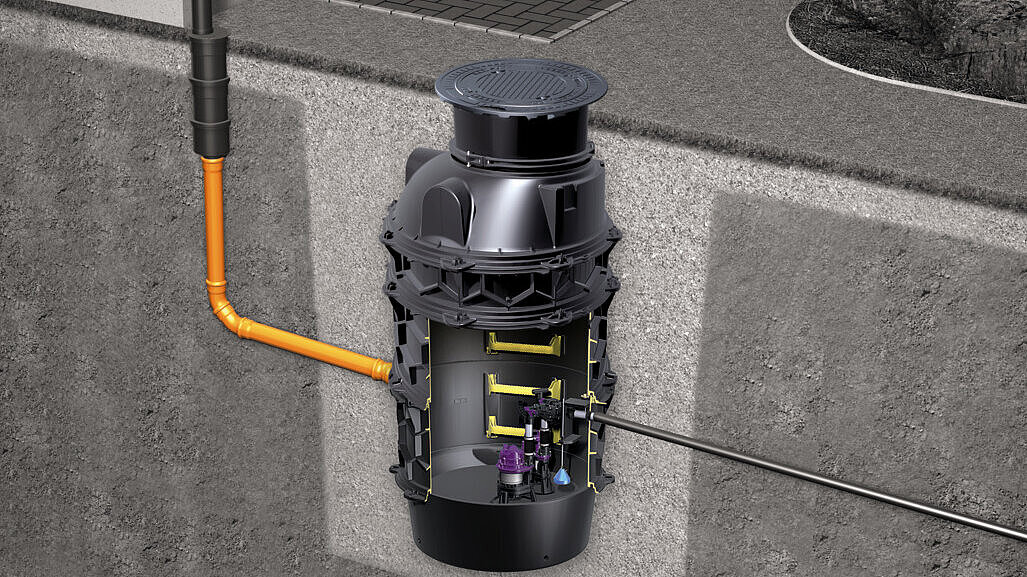

Installation diagram for Aquapump XL, dry installation for faecal wastewater
Pumping performance diagram for pump GTF 600/1200
Pumping performance diagram for pump GTF 1600/2600/4000
Pumping performance diagram for pump GTK 1300/2600/3700
Pumping performance diagram for pump SPF 1400/1500/3000/4500
Pumping performance diagram for pump STZ 1300/2500/3700
The right pump for all cases

The right pump for all cases

Whether a small or large usable volume, Mono or Duo system, with a multi-vane vortex impeller or single channel impeller or an additional macerator: The Aquapump XL can be equipped with a wide variety of pumps for faecal or faecal-free wastewater. This opens up countless possibilities to tailor the pumping station to individual needs.

Flexible installation

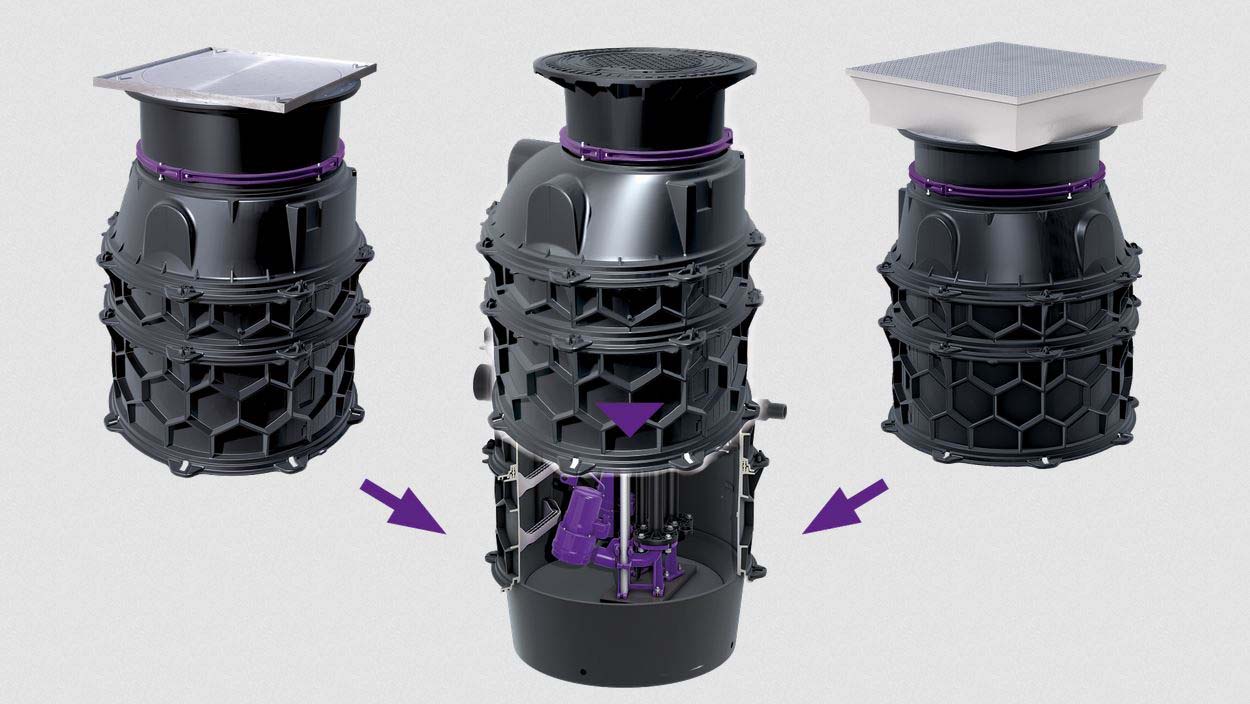

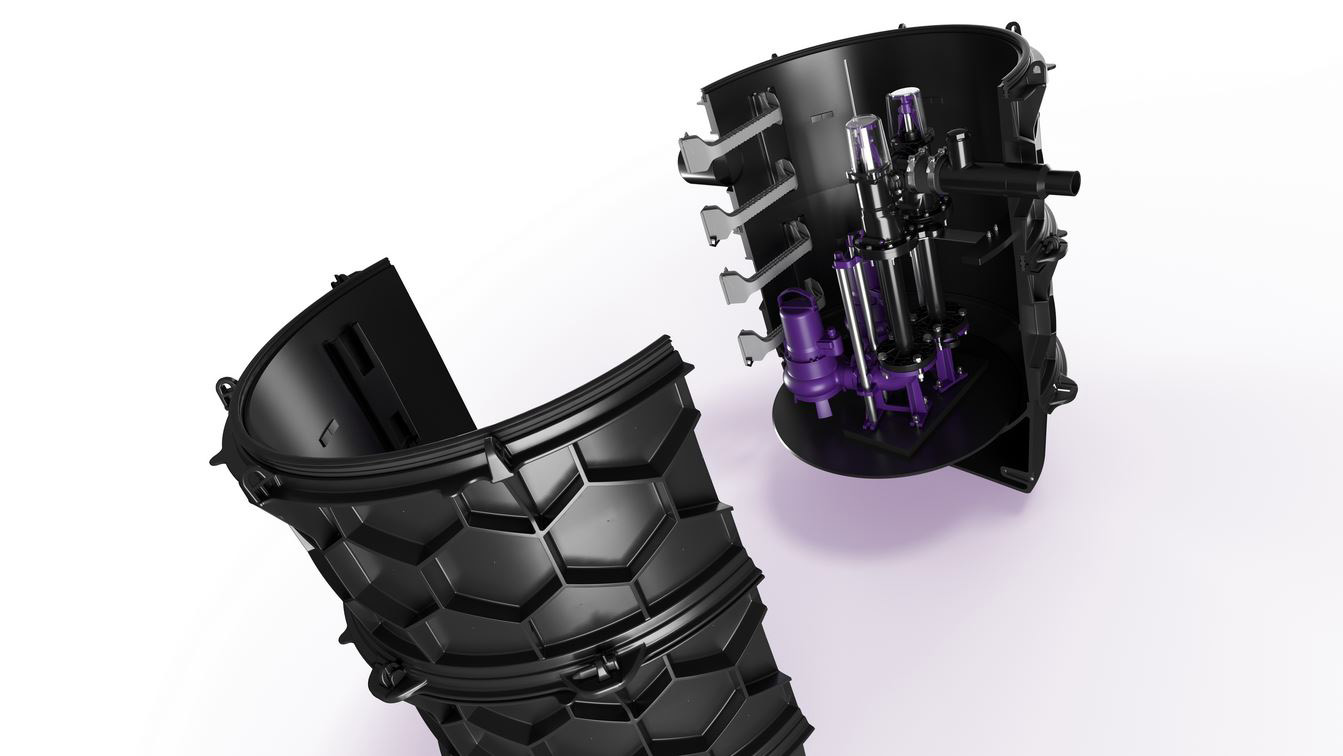

Flexible modular system

The Aquapump XL has been designed as a modular system and can be variably combined with technical and chamber modules. What this means for you: You can select the perfect drainage solution from a wide range of modules and upper sections – whether for underground or floor slab installation. Our standard engineering chambers are groundwater-resistant up to three metres and can be built up to a height of five metres.

To the engineering chambers

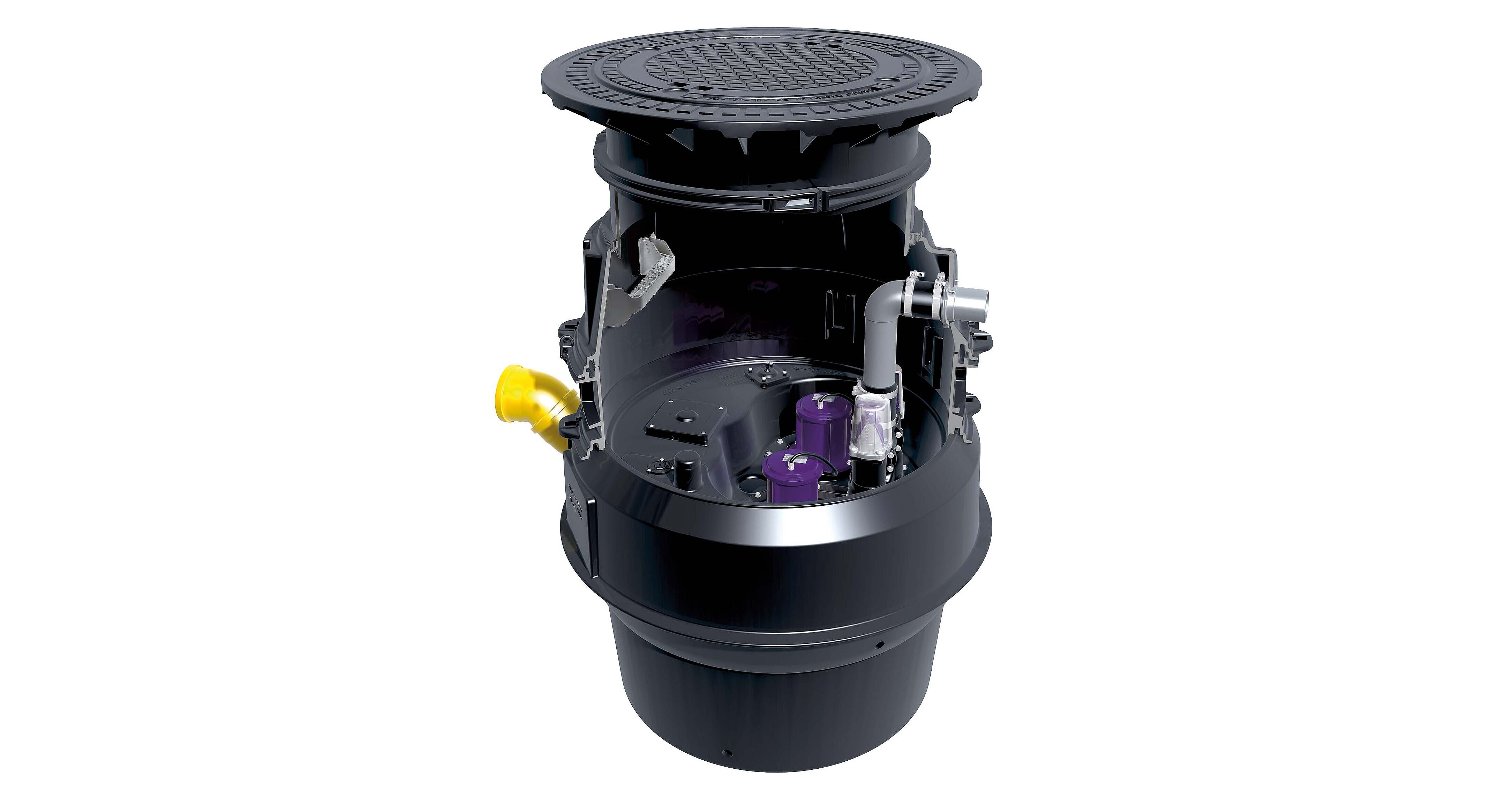

Aquapump XL pumping station, dry installation for faecal wastewater

Practical and hygienic

In comparison with the wet installation in pumping stations for faecal wastewater, the dry installation offers mainly hygienic advantages for maintenance and repairs since the pumping stations has a separate collecting chamber. In addition, pumps do not require ATEX approval for dry installation.

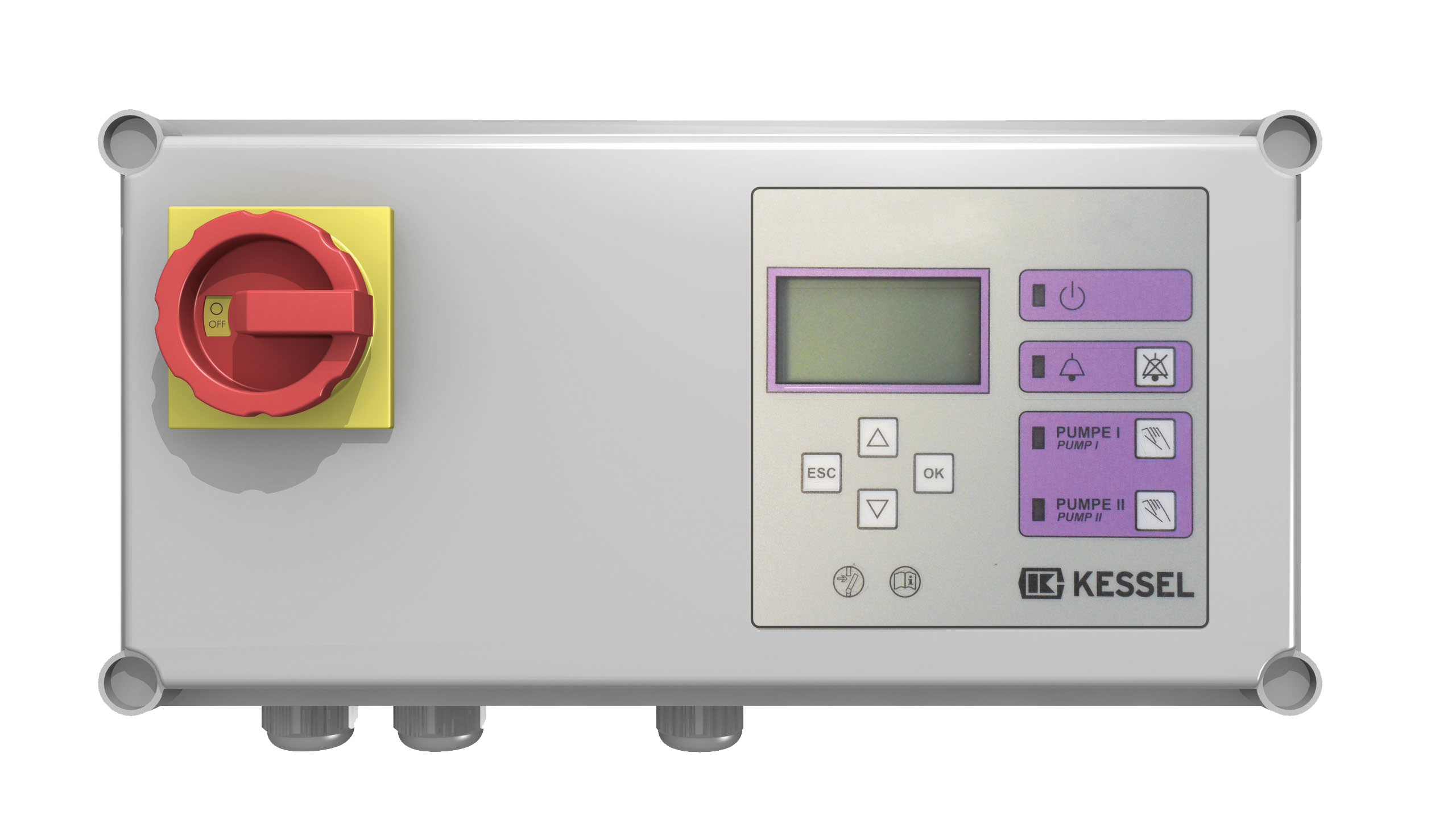

400 V control unit

Reliable control

The intelligent control unit with the integrated SDS self-diagnosis system and battery backup continuously checks all electrical components and keeps a readable, electronic operating log book.

ATEX symbol

Maximum safety

The pumping stations for faecal wastewater can be operated in potentially explosive areas – This means at locations where explosive gases may occur due to faecal wastewater and/or light liquids.

Pumping station Aquapump XL dry' installation

Type of wastewater: wastewater without sewage

Pump: GTF 600

Operating voltage Note on installation depth Operating mode Type of system Level measurement instrument Pumping volume Impeller type Installation Item no.
8743004 230  VLT in combination with a chamber module S1 Single station Float switch 90  LTR Multi-vane impeller Wet installation 8743004
8743005 230  VLT in combination with a chamber module S1 Single station Submersible pressure switch 90  LTR Multi-vane impeller Wet installation 8743005
8743007 230  VLT in combination with a chamber module S1 Twin pump station Submersible pressure switch 90  LTR Multi-vane impeller Wet installation 8743007

Pump: GTF 1200

Operating voltage Note on installation depth Operating mode Type of system Level measurement instrument Pumping volume Impeller type Installation Item no.
8743009 230  VLT in combination with a chamber module S3 - 50 % Single station Float switch 100  LTR Multi-vane impeller Wet installation 8743009
8743010 230  VLT in combination with a chamber module S1 Single station Submersible pressure switch 100  LTR Multi-vane impeller Wet installation 8743010
8743012 230  VLT in combination with a chamber module S1 Twin pump station Submersible pressure switch 100  LTR Multi-vane impeller Wet installation 8743012

Pump: GTF 1400

Operating voltage Note on installation depth Operating mode Type of system Level measurement instrument Pumping volume Impeller type Installation Item no.
8743032 - - S1 Single station Float switch 210  LTR Multi-vane impeller Wet installation 8743032
8743033 230  VLT - S1 Single station Level sensor 350  LTR Multi-vane impeller Wet installation 8743033
8743034 230  VLT - S1 Twin pump station Level sensor 340  LTR Multi-vane impeller Wet installation 8743034

Pump: GTF 1600

Operating voltage Note on installation depth Operating mode Type of system Level measurement instrument Pumping volume Impeller type Installation Item no.
8743020 400  VLT in combination with a chamber module S1 Single station Level sensor 350  LTR Multi-vane impeller Wet installation 8743020
8743023 400  VLT in combination with a chamber module S1 Twin pump station Level sensor 340  LTR Multi-vane impeller Wet installation 8743023

Pump: GTF 2600

Operating voltage Note on installation depth Operating mode Type of system Level measurement instrument Pumping volume Impeller type Installation Item no.
8743021 400  VLT in combination with a chamber module S1 Single station Level sensor 350  LTR Multi-vane impeller Wet installation 8743021
8743024 400  VLT in combination with a chamber module S1 Twin pump station Level sensor 340  LTR Multi-vane impeller Wet installation 8743024

Pump: GTF 4000

Operating voltage Note on installation depth Operating mode Type of system Level measurement instrument Pumping volume Impeller type Installation Item no.
8743022 400  VLT in combination with a chamber module S1 Single station Level sensor 350  LTR Multi-vane impeller Wet installation 8743022
8743025 400  VLT in combination with a chamber module S1 Twin pump station Level sensor 340  LTR Multi-vane impeller Wet installation 8743025

Pump: GTK 1300

Operating voltage Note on installation depth Operating mode Type of system Level measurement instrument Pumping volume Impeller type Installation Item no.
8743026 400  VLT in combination with a chamber module S1 Single station Level sensor 350  LTR Single-vane impeller Wet installation 8743026
8743029 400  VLT in combination with a chamber module S1 Twin pump station Level sensor 340  LTR Single-vane impeller Wet installation 8743029

Pump: GTK 2600

Operating voltage Note on installation depth Operating mode Type of system Level measurement instrument Pumping volume Impeller type Installation Item no.
8743027 400  VLT in combination with a chamber module S1 Single station Level sensor 350  LTR Single-vane impeller Wet installation 8743027
8743030 400  VLT in combination with a chamber module S1 Twin pump station Level sensor 340  LTR Single-vane impeller Wet installation 8743030

Pump: GTK 3700

Operating voltage Note on installation depth Operating mode Type of system Level measurement instrument Pumping volume Impeller type Installation Item no.
8743028 400  VLT in combination with a chamber module S1 Single station Level sensor 350  LTR Single-vane impeller Wet installation 8743028
8743031 400  VLT in combination with a chamber module S1 Twin pump station Level sensor 340  LTR Single-vane impeller Wet installation 8743031

Type of wastewater: wastewater with sewage

Pump: GTF 1400

Operating voltage Note on installation depth Operating mode Type of system Level measurement instrument Pumping volume Impeller type Installation Item no.
8743047 400  VLT - S1 Single station Level sensor 350  LTR Multi-vane impeller Wet installation 8743047
8743048 400  VLT - S1 Twin pump station Level sensor 350  LTR Multi-vane impeller Wet installation 8743048

Pump: SPF 1400

Operating voltage Note on installation depth Operating mode Type of system Level measurement instrument Pumping volume Impeller type Installation Item no.
8742000 230  VLT Version for deeper installation S3 - 50 % Single station Immersion pipe 160  LTR Multi-vane impeller Dry installation 8742000
8742004 230  VLT Version for deeper installation S3 - 50 % Twin pump station Immersion pipe 160  LTR Multi-vane impeller Dry installation 8742004
8742008 230  VLT Version for deeper installation S1 Twin pump station Immersion pipe 160  LTR Multi-vane impeller Dry installation 8742008
8742012 230  VLT Version with lowest installation height S3 - 50 % Single station Immersion pipe 160  LTR Multi-vane impeller Dry installation 8742012
8742016 230  VLT Version with lowest installation height S3 - 50 % Twin pump station Immersion pipe 160  LTR Multi-vane impeller Dry installation 8742016
8742020 230  VLT Version with lowest installation height S1 Twin pump station Immersion pipe 160  LTR Multi-vane impeller Dry installation 8742020

Pump: SPF 1500

Operating voltage Note on installation depth Operating mode Type of system Level measurement instrument Pumping volume Impeller type Installation Item no.
8742001 400  VLT Version for deeper installation
