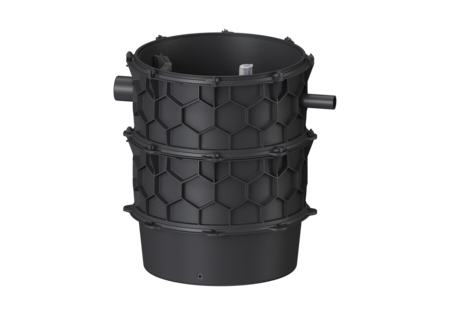

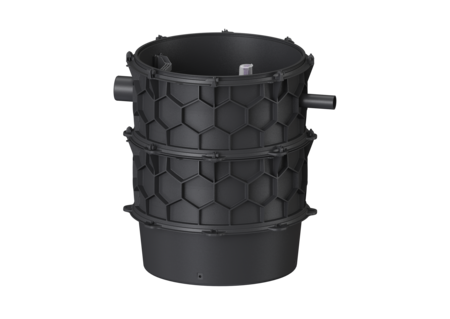

Pumping station Aquapump XL

Mono, STZ 1400-S1

8743032
8743032
PDF product data sheet

KESSEL Pumping station Aquapump XL, Mono, wastewater for wastewater with or without sewage (in installation situations without ATEX requirements), pump control by Float switch, with a submersible GTF 1400 pump, operating mode S1

    • Maximum safety
    • Flexible installation
    • Also handles large quantities of wastewater
    Item no. 8743032
    GTIN 4026092078976
    Price group 60

    Pumping station Aquapump XL Mono, STZ 1400-S1
    The pumping station is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank with universal connection options. Quick-release closures enable the integrated components to be removed easily. The KESSEL modular system provides different engineering chamber options as accessories for the further layout. Stainless steel pump removal chains available as accessory for each installation depth - Article number: 680528 = Length 2 m 680529 = Length 3 m 680530 = Length 4 m 680531 = Length 5 m Variant Type of system: Single unit Shut-off valve: Shut-off valve made of polymer Passage seal for conduit pipe (DN): 100 Access steps: yes Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Float switch Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with or without sewage (in installation situations without ATEX requirements) Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Mono ATEX: no Dimensions Net weight: 147 kg Gross weight: 168 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1300 mm Width: 1300 mm Height: 1416 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 1550 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Pumping volume: 210 l Pumping device Pump: GTF 1400 Number of pumps: 1 Weight, pump: 22 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 6,5 A Protection class: I Insulation class: H Cos phi - power factor: 0,99 Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 31 m³/h Max. pumping height: 10,5 m Speed: 2900 U/min Power P1: 1,5 kW Power P2: 1,1 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Control Motor protection switch: yes Level measurement instrument: Float switch Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Rated current: 6,5 A Type of fuse required (electrical protection): C 16 A
