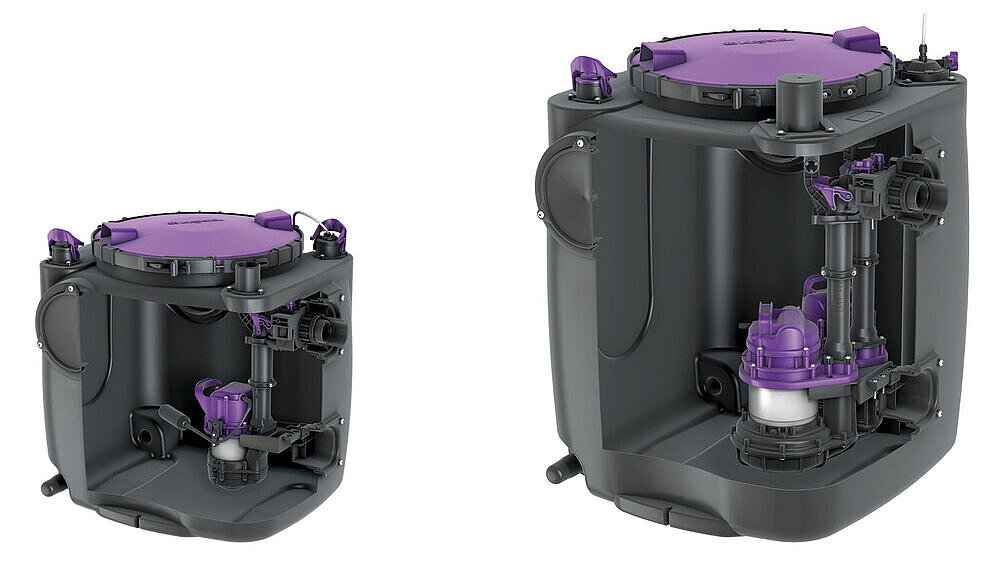

The lifting station Aqualift 100 and 200 is the perfect choice for renovations or other installation situations that require an exposed installation. Due to its small installation area, it can also be easily integrated into small rooms by means of retrofitting. Thanks to the one-handed closure that can be operated without tools, maintenance is easy to carry out.
It is available with wastewater tanks in two sizes, as well as different pump capacities. There is also a choice between a single pump with a float or control unit, and two pumps with a control unit. This makes the Aqualift 100 and 200 suitable for a wide variety of applications including the drainage of grease separators. If requirements change, the system can be converted from one to two pumps or another pump type at any time.
In the basement of an apartment block, the Aqualift 100 ensures that everything stays dry even with several washing machines connected.
In the case of a renovation, the Aqualift 100 can also be installed in an existing pump sump.

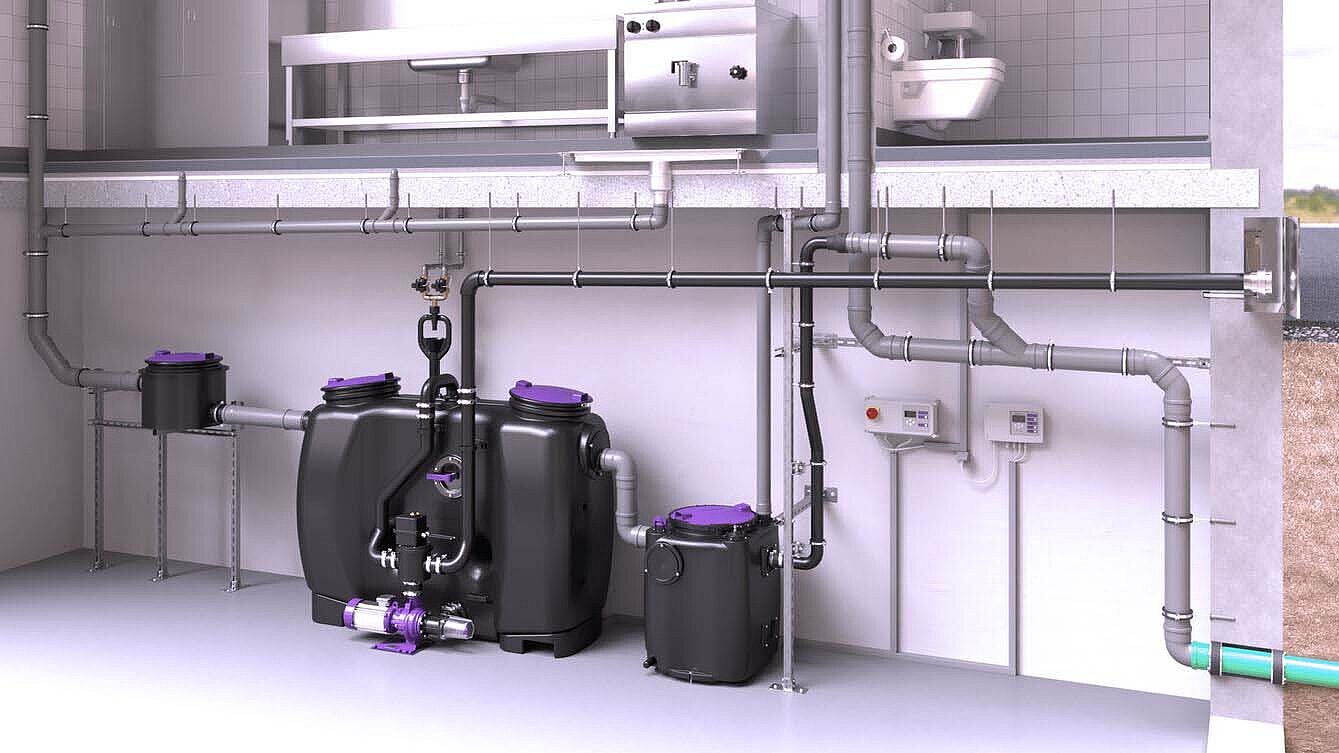

Is there a commercial kitchen in the building? In combination with a grease separator, it is possible to use the Aqualift 200 as a sampling chamber.
Optimal use of space with maximum comfort: The EasyClean free Modular Direct with the Aqualift 100 lifting station.
Application possibilities
Existing premises, little space or an existing pump sump: Flexible drainage solutions that adapt perfectly to the local conditions are required in the case of renovations. The Aqualift 100 and Aqualift 200 are designed precisely for this purpose: Available in two sizes with different pump capacities, suitable for an exposed installation and retrofittable with two pumps. This flexibility pays off in the following exemplary installation situations:
Pumps

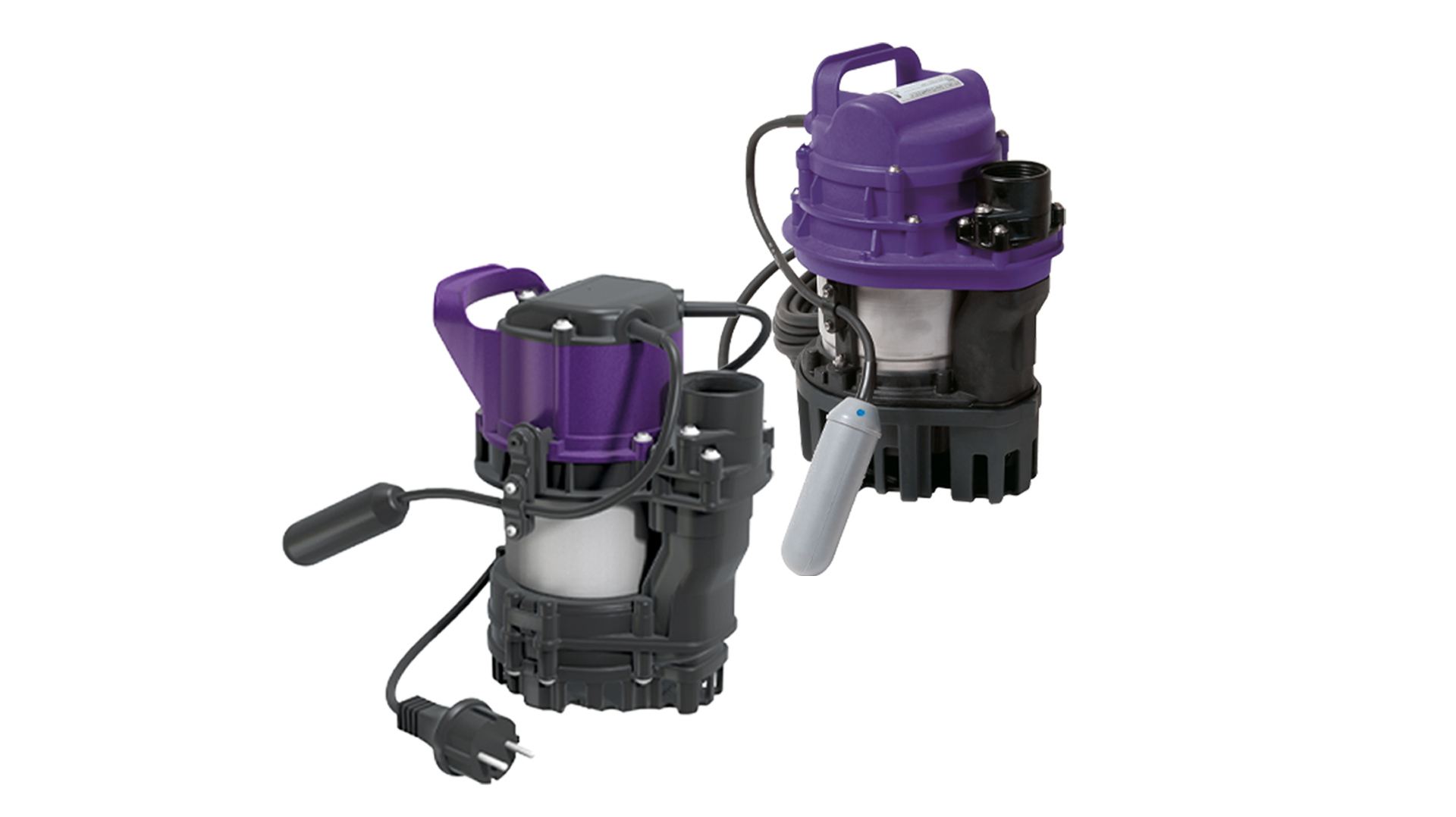

The Aqualift 100 and 200 are equipped with one or two pumps. There are four models to choose from: a 650-watt pump in S1 operating mode (continuous operation) with a float switch or switchgear, and a 1.3-kilowatt pump in S3 operating mode (batch operation) with switchgear. Both pump types are available in resistant versions that are resistant to condensate from condensing boilers and brine water.
Ideal for connection to grease separator systems

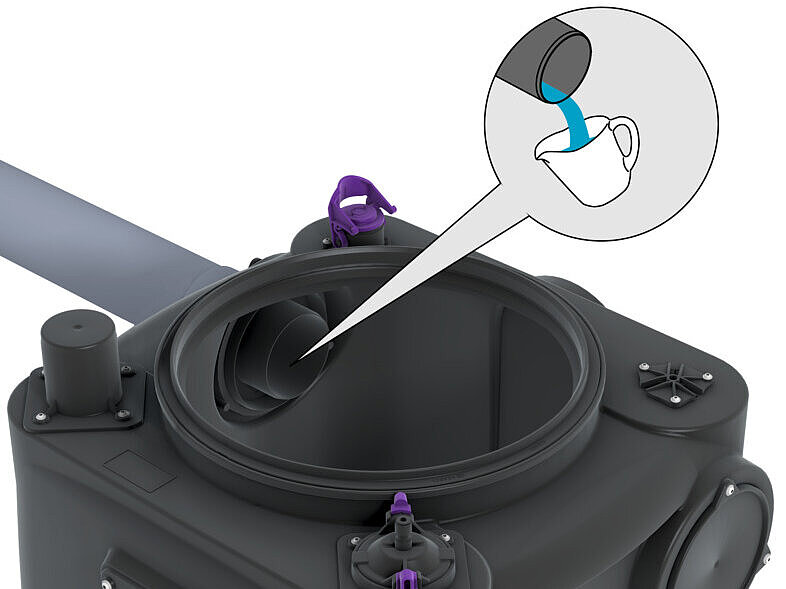

The Aqualift 100 and 200 Duo with two pumps are ideally suited for applications in which the drainage operation cannot be interrupted. This applies in particular to the drainage of grease separators. The large access cover, which can be opened without tools using one-handed closures, also contributes to the system’s reliability. A further advantage results in combination with a grease separator due to the inlet, which can also be used as a sampling opening. It is, therefore, not necessary to install a separate sampling chamber.
Aqualift 100/200 lifting station resistant
Aqualift 100
| Pump | Type of wastewater | Type of system | Type of level measurement | Item no. | ||
|---|---|---|---|---|---|---|
28511C | GTF 600 resistant | without sewage | Single unit | mechanical | 28511C | Show |
28512C | GTF 1250 resistant | without sewage | Single unit | mechanical | 28512C | Show |
28513C | GTF 600 resistant | without sewage | Single unit | pneumatic | 28513C | Show |
28514C | GTF 1250 resistant | without sewage | Single unit | pneumatic | 28514C | Show |
28515C | GTF 600 resistant | without sewage | duo pump | pneumatic | 28515C | Show |
28516C | GTF 1250 resistant | without sewage | duo pump | pneumatic | 28516C | Show |
