Roof drains for flat roof surfaces

The well thought-through solution for the roof.

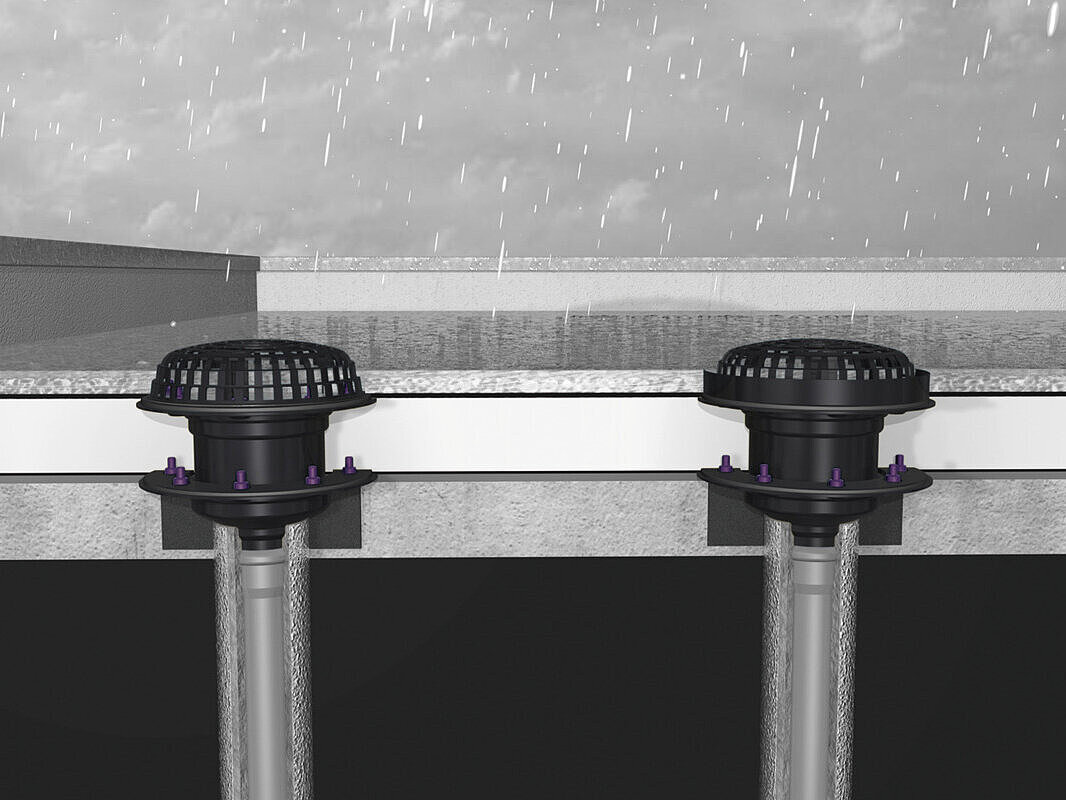

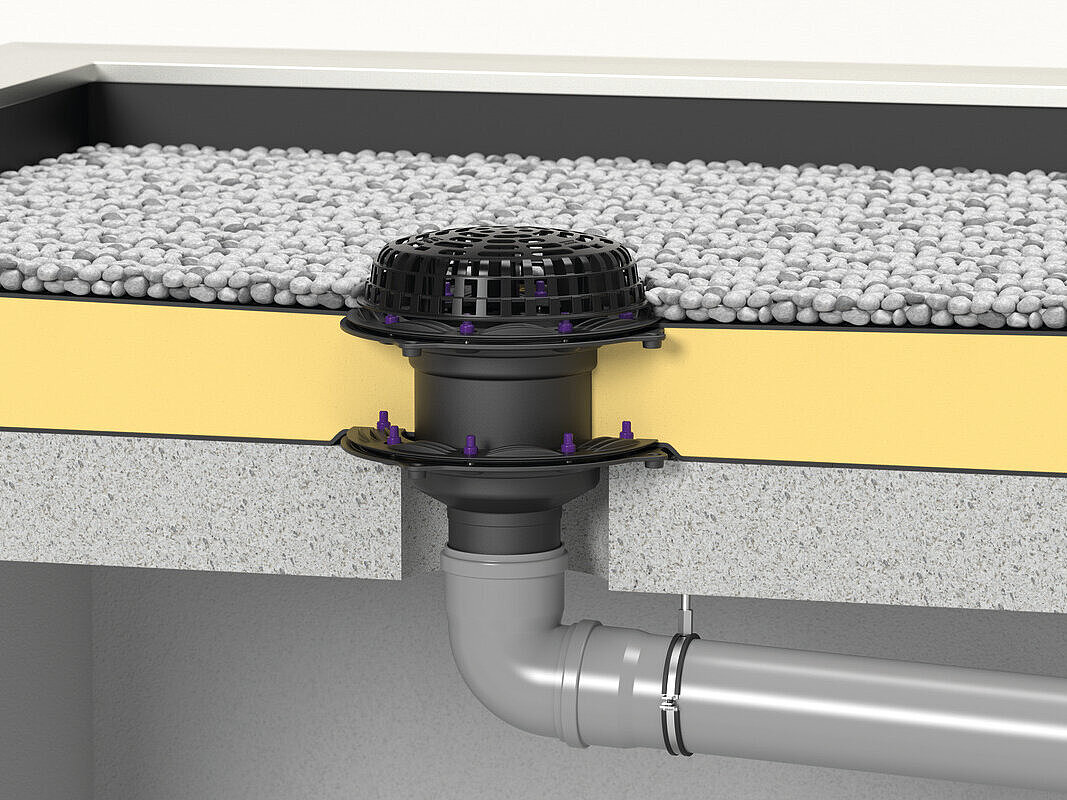

Our offer includes different roof drains for flat roof surfaces for the safe and reliable drainage of roofs in all sizes. The drains are available with optional single or double seal and can be converted into a DIN-conforming emergency drain by fitting a retainer ring available as an accessory.

We supply roof drains for flat roof surfaces not only made of polymer but also made of our Ecoguss, our high-tech composite, which combines the specific advantages of polymer and metal. They are available in nominal sizes ranging from DN 70 to DN 125.

Advantages  Article overview

The best of both worlds: floor drains made of Ecoguss

Resistance, convenience, cleanliness – all these are offered by Ecoguss – our high-tech composite material. This innovative material combines the advantages of polymer and metal: It is three times lighter than cast iron and at the same time temperature-resistant as well as highly resistant to chemical and mechanical stress. In addition, Ecoguss is non-corrosive and extremely hygienic – thanks to its uncoated, smooth surface, which prevents deposits and thus ensures a strong self-cleaning effect.

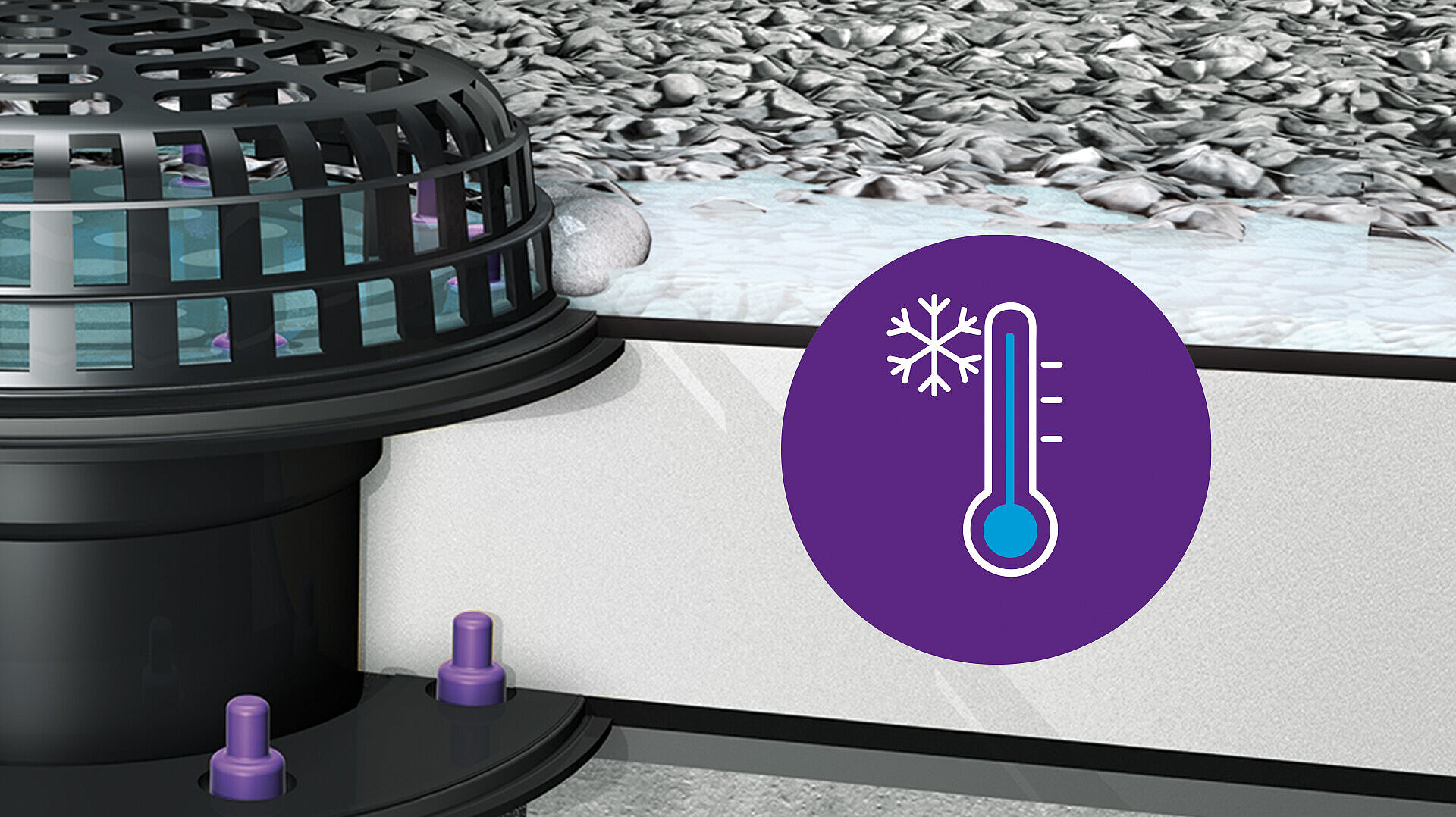

Reliable throughout the year thanks to the heating function

To ensure problem-free drainage of roofs even at low temperatures, our roof drains for flat roof surfaces are available with an optional heater. The heating function is integrated in a non-combustible insulated body and therefore does not pose a fire risk.

Roof drain for flat roof surfaces

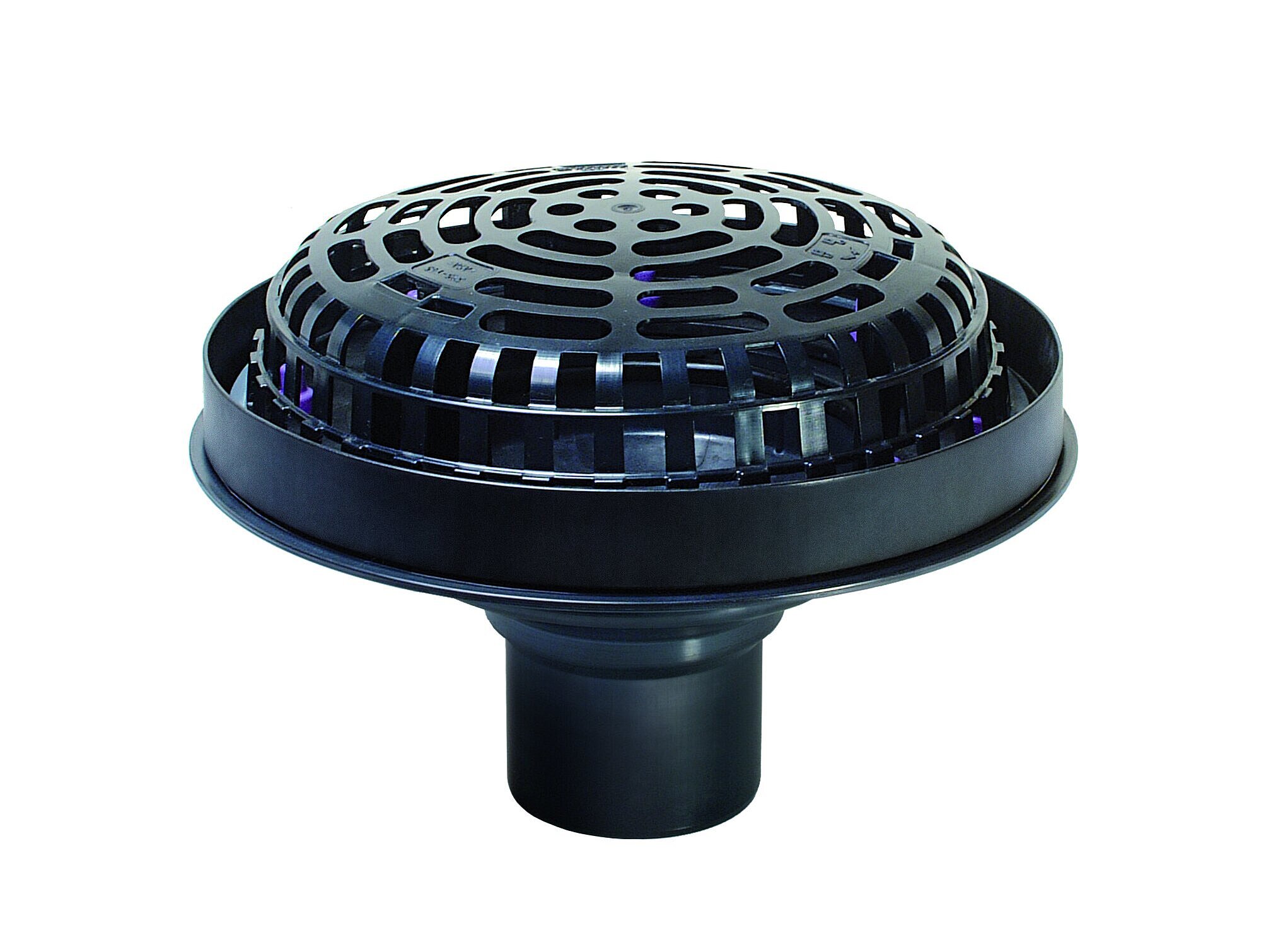

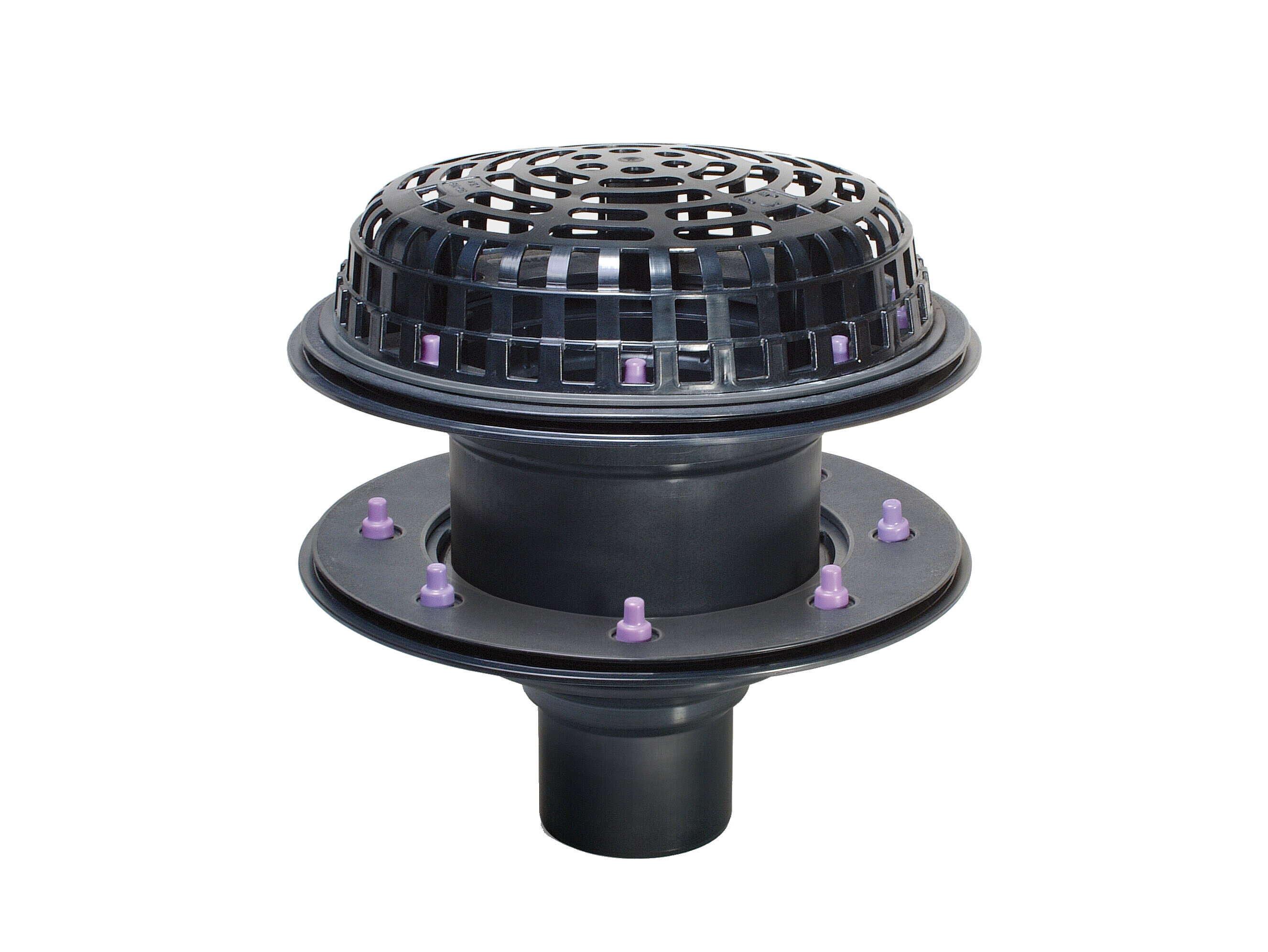

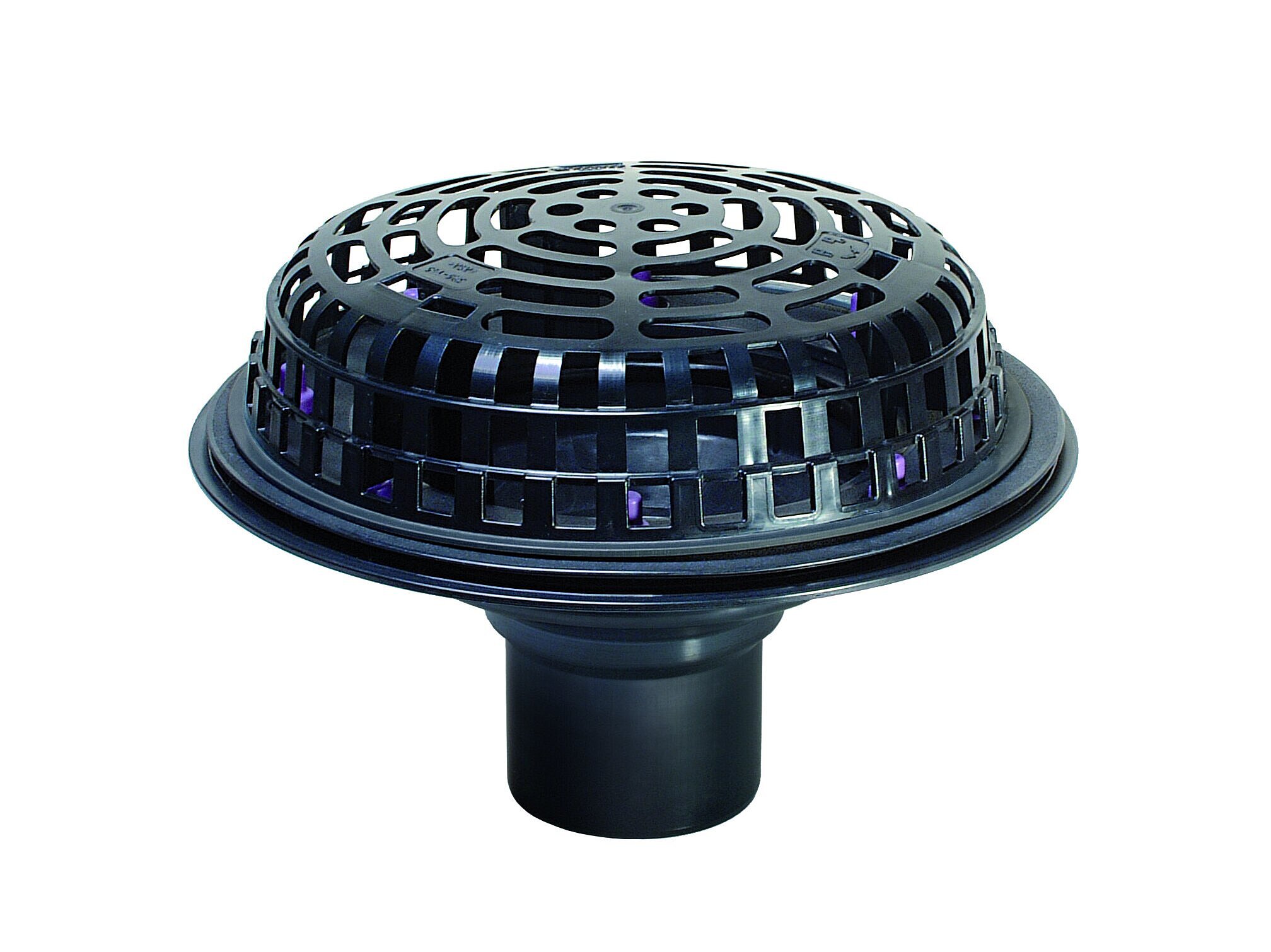

Upper section made of Ecoguss

  Nominal size (DN)Waterproofing layer on the upper section Item no.
48310 100 48310
Show
48310.01 100 48310.01
Show
48312 125 48312
Show
48312.01 125 48312.01
Show
48370 70 48370
Show
48370.01 70 48370.01
Show

  Nominal size (DN)Waterproofing layer on the upper section Item no.
48310.02 100 48310.02
Show
48310.03 100 48310.03
Show
48312.02 125 48312.02
Show
48312.03 125 48312.03
Show
48370.02 70 48370.02
Show
48370.03 70 48370.03
Show

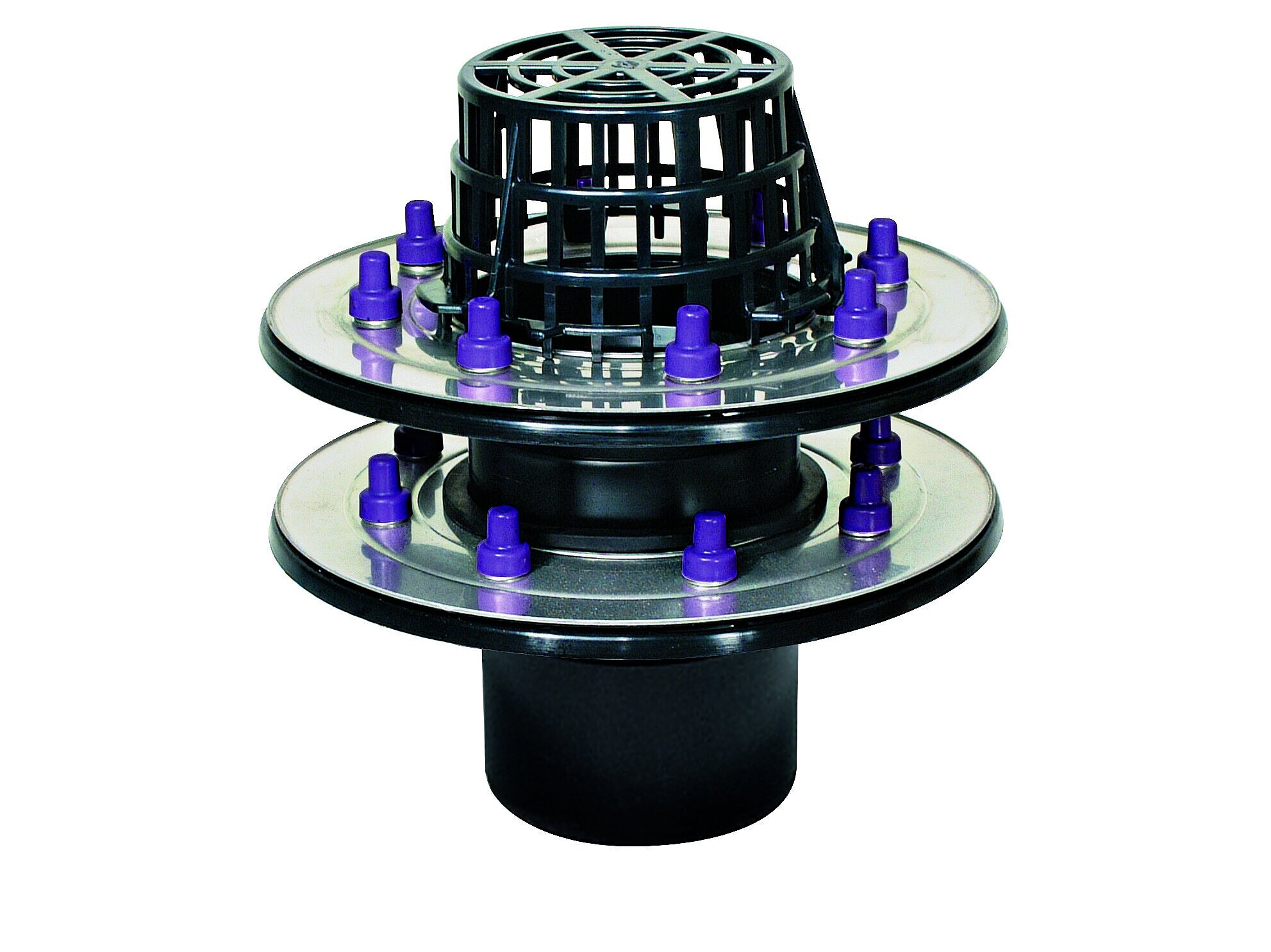

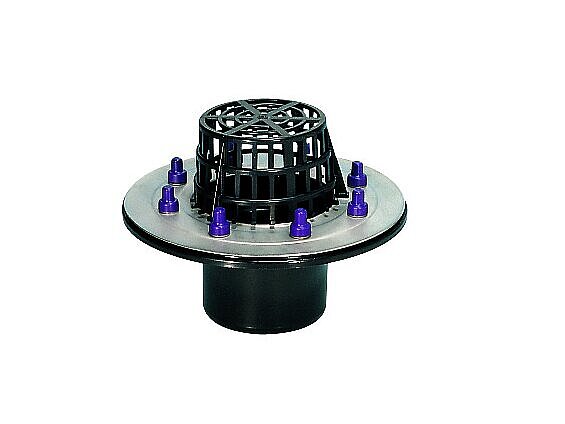

Upper section made of PP polymer

  Nominal size (DN)Waterproofing layer on the upper section Item no.
45950 100 45950
Show
45970 100 45970
Show

Not found the right product?

In addition to our standard drains and channels, we also develop customised solutions at the customer's request for special demands in terms of form, function and dimensioning.

Individual solutions
