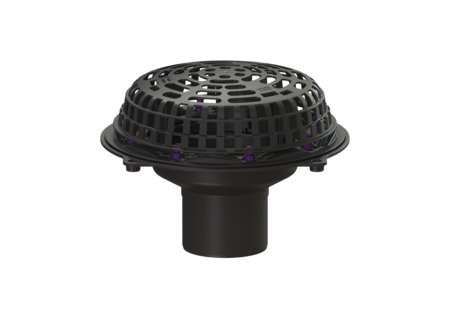

Roof drain Ecoguss

Press. fl., DN 125, without heating

The Ecoguss roof drain for flat roof surfaces is used for point drainage and is equipped with a pressure sealing flange as well as a gravel trap. The recyclable composite material Ecoguss fulfils the highest sound protection requirements, is resistant to aggressive media, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. Separate equipotential bonding is not necessary. Note: Please consult the KESSEL Service Centre for trapezoidal roof areas greater than 2500 sqm.

  • Made of recyclable composite
  • Permanently corrosion-free surface
Item no. 48312
GTIN 4026092039274
Price group 40

Roof drain Ecoguss Press. fl., DN 125, without heating
The Ecoguss roof drain for flat roof surfaces is used for point drainage and is equipped with a pressure sealing flange as well as a gravel trap. The recyclable composite material Ecoguss fulfils the highest sound protection requirements, is resistant to aggressive media, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. Separate equipotential bonding is not necessary. Note: Please consult the KESSEL Service Centre for trapezoidal roof areas greater than 2500 sqm. Variant System: 200 Heating: without Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) General characteristics Standard: EN 1253 Nominal size (DN): 125 Outer diameter (OD): 125 mm Dimensions Net weight: 2,56 kg Gross weight: 3,17 kg Diameter: 365 mm Cutout dimension, width: 227 mm Cutout dimension, length: 227 mm Width: 365 mm Length: 365 mm Packaging dimension: width: 360 mm Packaging dimension: height: 250 mm Packaging dimension: length: 360 mm Tank/drain body Material of drain body: Ecoguss Coverage features Type of cover: Gravel trap Cover material: Polymer Colour of cover: black Upper section material: Ecoguss
  Title Item no.
  Title Item no.
  Title Item no.
Retention ring Ecoguss, H: 35 mm, DN 70/100 48335 Show
Retention ring Ecoguss, H: 45 mm, DN 125 48345 Show
Insulated body for Ecoguss flat roof drain 48352 Show
Insulation body with heating 48353 Show
Insulated body for Ecoguss extension section 48354 Show
Extension section Pressure sealing flange, Mating flange 48958 Show
Extension section System 200, H: 175 mm 48988 Show
  Title Item no.
Spacer ring Roof drain, Ecoguss 48302 Show
Gravel trap Roof drain, Ecoguss, Polymer 48303 Show
Retention ring Ecoguss, H: 35 mm, DN 70/100 48335 Show
Retention ring Ecoguss, H: 45 mm, DN 125 48345 Show
Slotted cover round, d: 362 mm, Polymer 850134 Show
  • Nominal size (DN) (nennweite): 125
  • Material of drain body (material_grundkoerper): Ecoguss
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111242697
  • Upper section material (material_aufsatzstueck): Ecoguss
  • (abdichtung_aufsatzstueck):
