Pressure sealing flange, Mating flange

PDF product data sheet

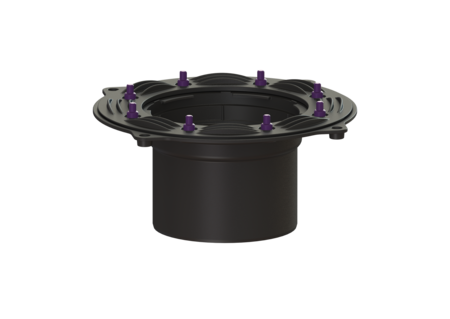

System 200 Ecoguss extension section with pressure sealing flange and mating flange, including lip seal, permanently corrosion-free surface, temperature resistant up to 400°C (for short period), equipotential bonding is not required. Extension section with bolts and screws made of stainless steel, for pressing in or welding on bitumen and polymer bitumen sheets as well as pressing in polymer and elastomer membranes.

Item no. 48958
GTIN 4026092004944
Price group 10

Extension section Pressure sealing flange, Mating flange
System 200 Ecoguss extension section with pressure sealing flange and mating flange, including lip seal, permanently corrosion-free surface, temperature resistant up to 400°C (for short period), equipotential bonding is not required. Extension section with bolts and screws made of stainless steel, for pressing in or welding on bitumen and polymer bitumen sheets as well as pressing in polymer and elastomer membranes. Version: System: 200 General characteristics: Material: Ecoguss Dimensions: Diameter: 365 mm
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • System (ATTR-244): 200
  • Material (ATTR-101): Ecoguss
  • Brand (M-ATTR-001): KESSEL
  • Country of origin (ATTR-322): DE
  • Advantages text (M-ATTR-007): For extending the upper section for high floor build-up
  • Net weight (ATTR-A3A): 2.4  KGM
  • Gross weight (ATTR-A3B): 3.0  KGM
  • Diameter (ATTR-107): 365  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 360  MMT
  • Packaging dimension: width (ATTR-326): 360  MMT
  • Packaging dimension: height (ATTR-327): 250  MMT
  • Dimensions (ATTR-323): 360X360X250MM
  • Number of packages (ATTR-321): 0
