The Superflat bathroom drain

The floor-level drain for renovation projects.

A bathroom drain that requires little space but delivers maximum performance: The Superflat from the System 100 has an installation depth of 95 mm – making it the ideal choice for the renovation of existing buildings. It is great in terms of both design and function: In spite of its compact size, it can be combined with tasteful design covers and offers a high drainage capacity of up to 0.9 l/s. Thanks to flexible nozzles with acoustic decoupling, it is barely audible during operation.

The Superflat bathroom drain has an outlet with a nominal size of DN 50 and is available in two versions: as a model with one or three inlets.

Advantages  Article overview

Low installation depth

Due to its low minimum installation depth of 95 mm, the Superflat is ideally suited for barrier-free construction within the scope of renovation projects. Of course, it can also be used in new buildings as a flat and standard-compliant floor drain.

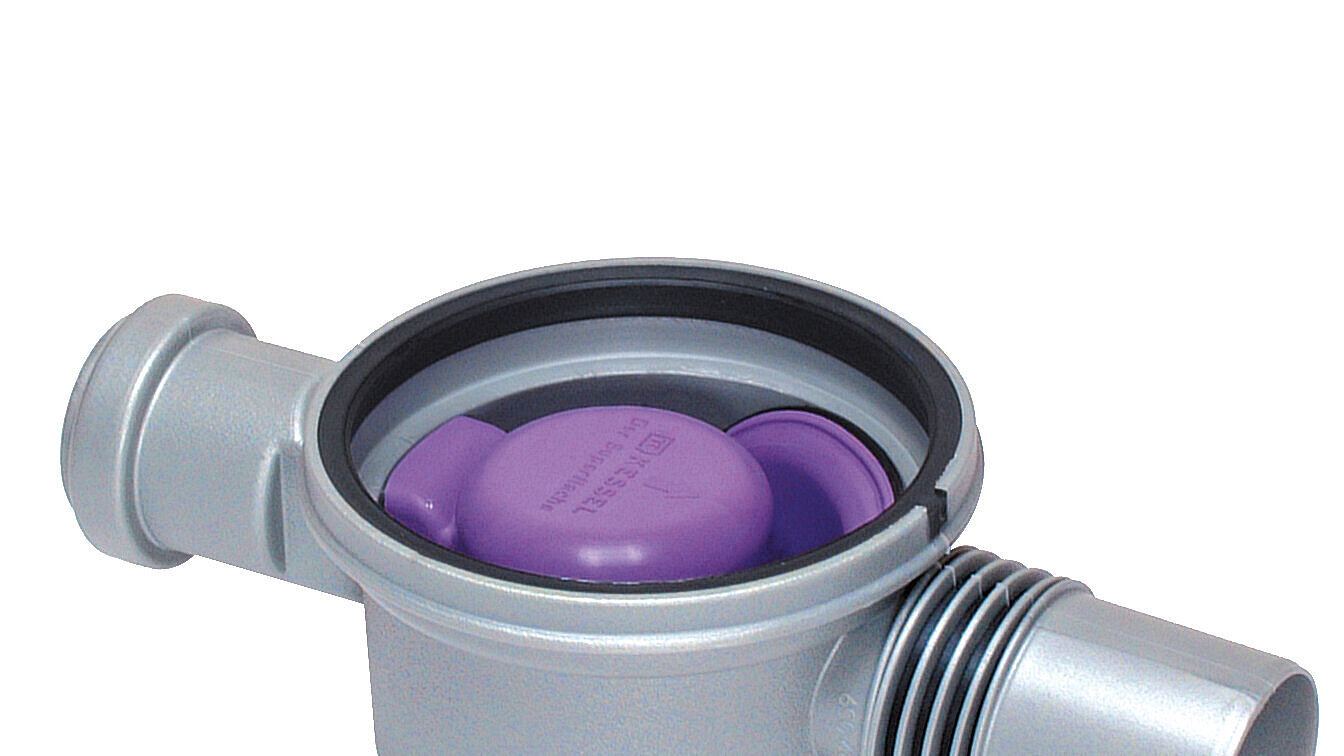

Removable odour trap

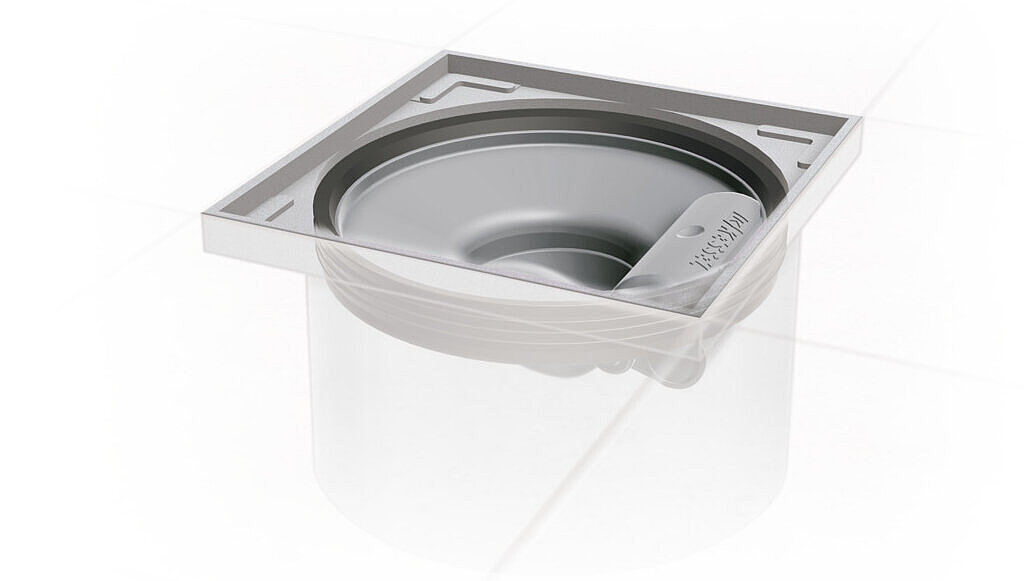

The Superflat bathroom drain has a removable odour trap to protect against unpleasant odours from the sewer system. This makes it easy and convenient to maintain. The practical Lock & Lift system serves simultaneously as a locking and removal device. Certain versions can also be optionally equipped with the waterless Multistop rodent, foam and odour stop.

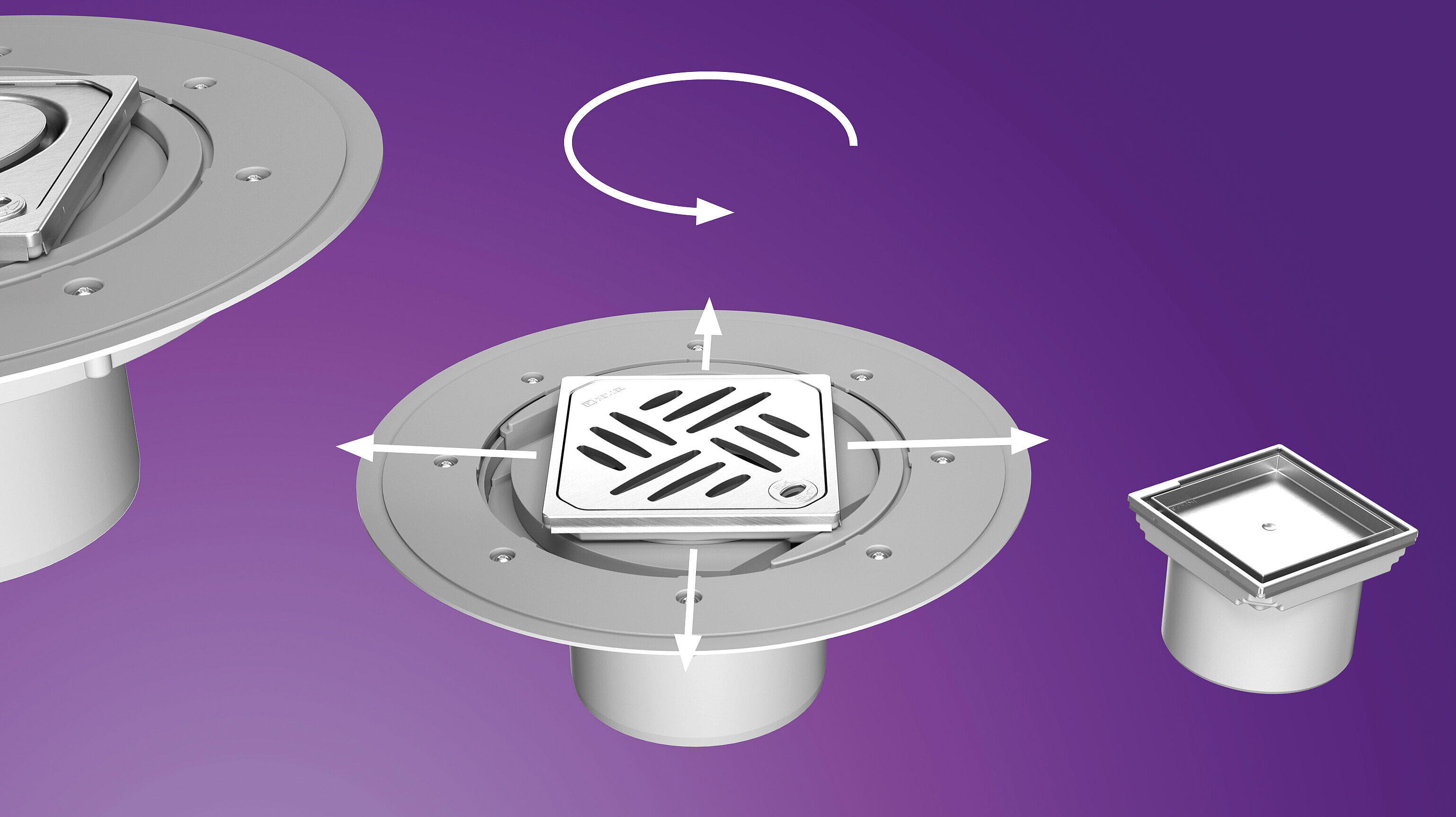

Variofix: the variable upper section

Rotatable, tiltable and height-adjustable: Regardless of the installation conditions on site, the Classic bathroom drain can be mounted very easily thanks to its variable Variofix upper section.

Safe to install sealing system

No forgetting, no slipping: The sealing system is safe to install because the lip seal is firmly connected to the drain body.

The Superflat bathroom drain

Nominal size DN 50

  Type of coverNominal size (DN) Item no.

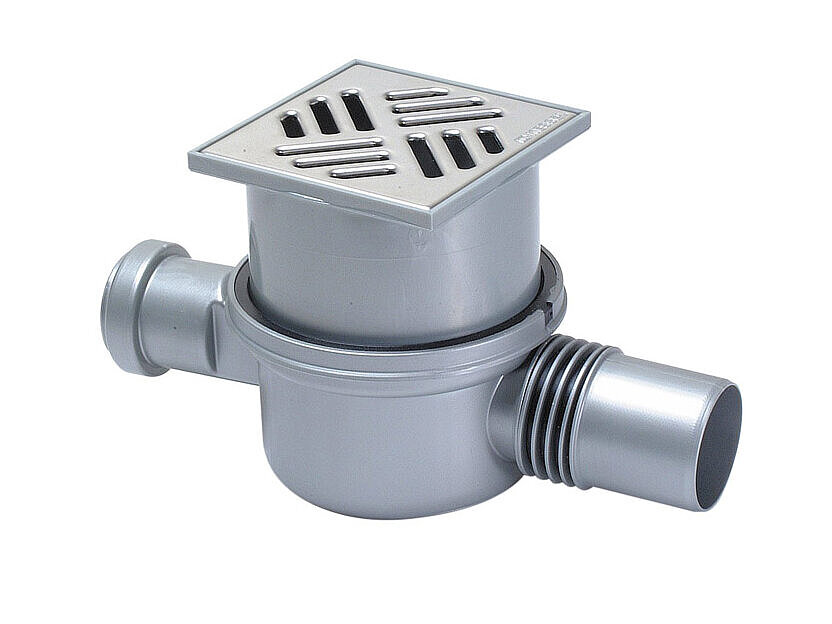

42701.2042701.20 Slotted cover 50 42701.20
Show
42701.5042701.50 Slotted cover 50 42701.50
Show
42701.5442701.54 Design cover 50 42701.54
Show
42701.9142701.91 Slotted cover 50 42701.91
Show

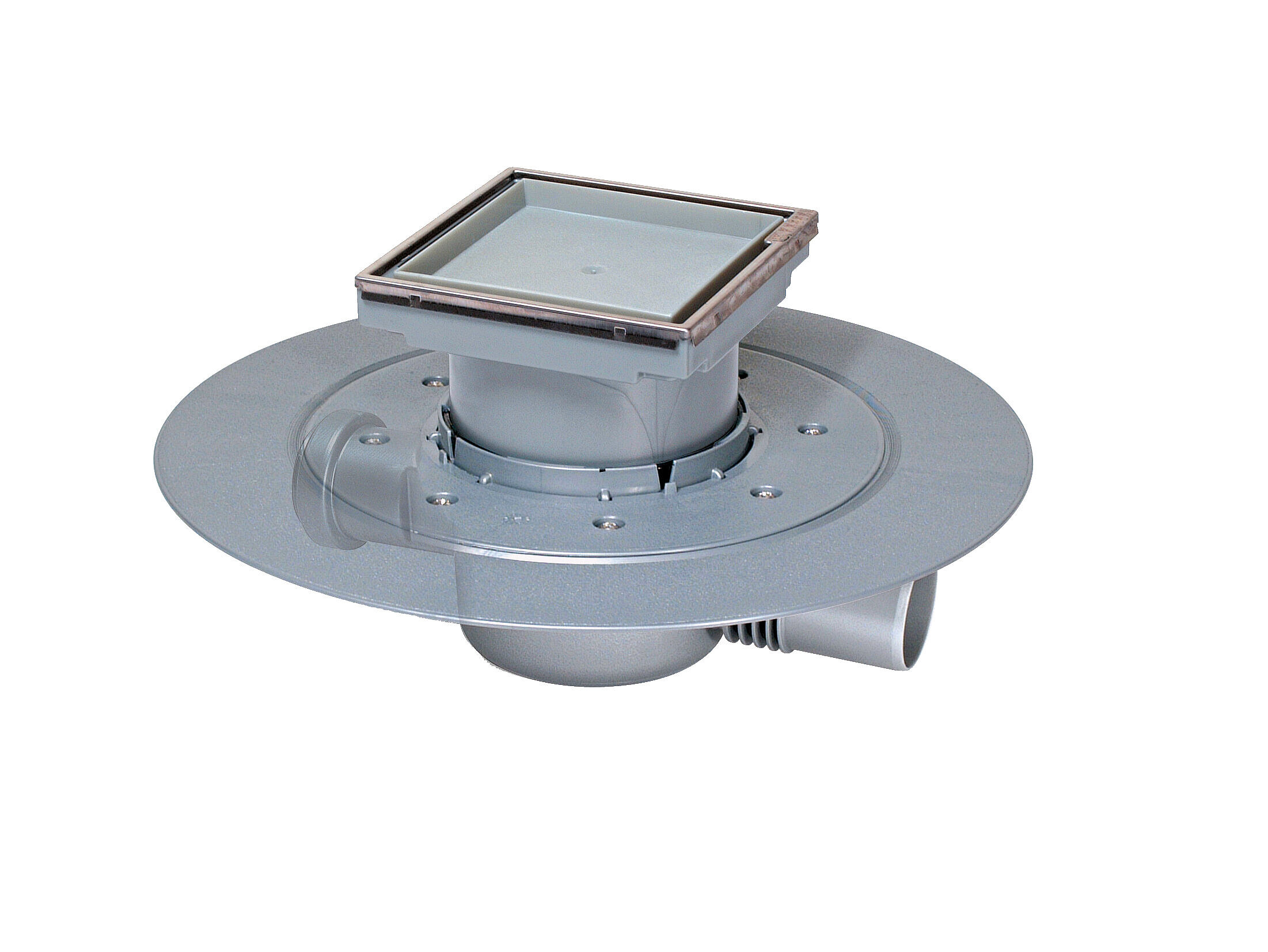

42701.9542701.95 tileable cover plate 50 42701.95
Show

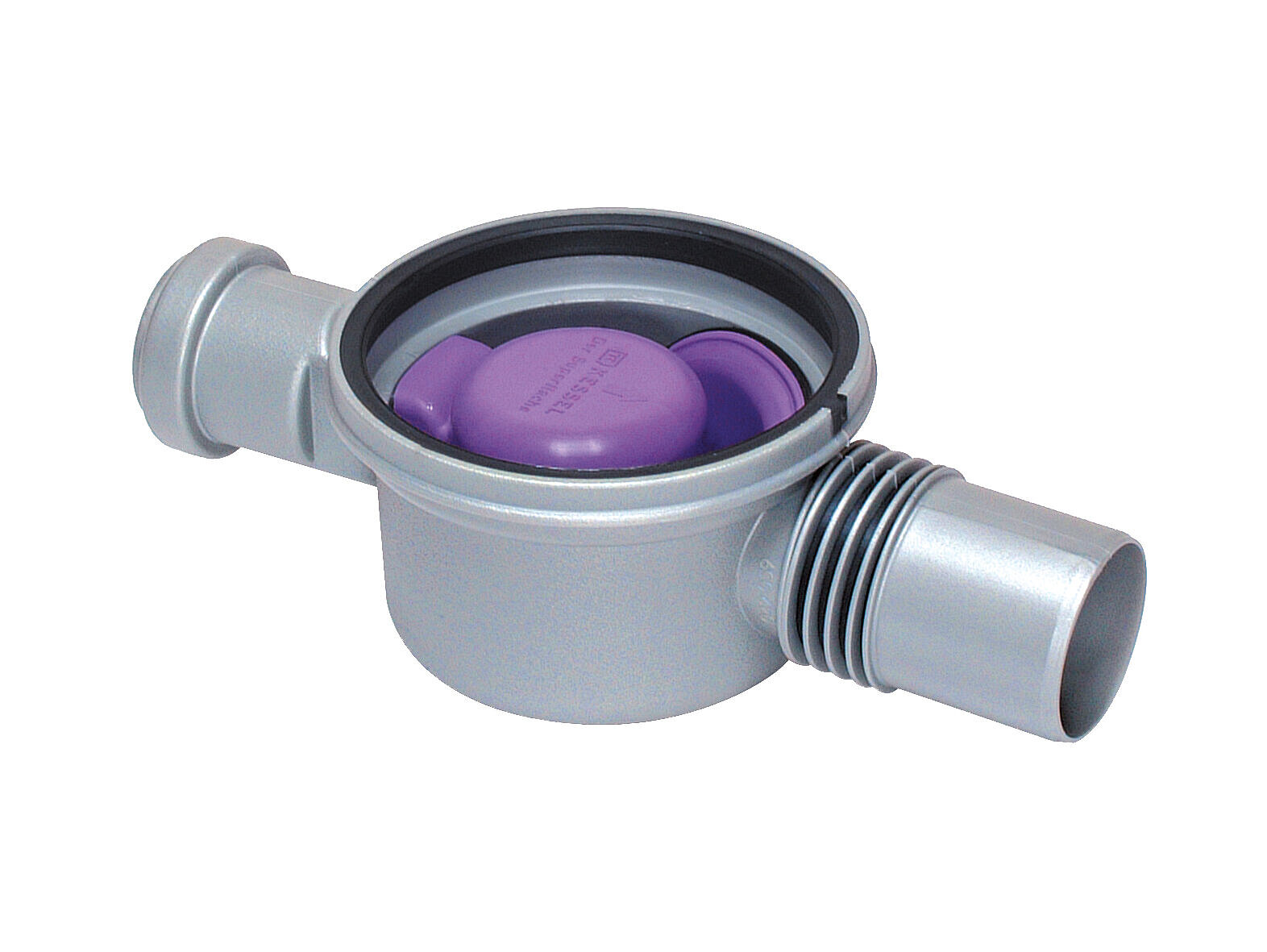

The Superflat drain body

Nominal size DN 50

  Inlet nominal size (DN)Nominal size (DN)Outlet nominal size (DN) Item no.
4270042700 40  mm 50 42700
Show
4270142701 40  mm 50 42701
Show
4270342703 40  mm 50 42703
Show
