The Superflat bathroom drain

glued flange, DN 50, Slotted grating

KESSEL The Superflat bathroom drain, length 332 mm, type of cover Slotted cover, design cover

  • Movable outlet socket
  • Lip seal fixed on the drain body
  • Side inlet via odour trap
Item no. 42701.91
GTIN 4026092029657
Price group 10

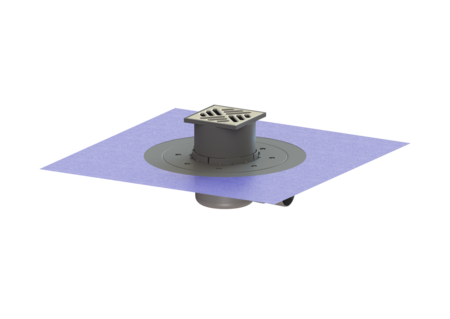

    The Superflat bathroom drain glued flange, DN 50, Slotted grating
    The Superflat bathroom drain is suitable for indoor floor drainage. The drain made of PP is equipped with a secure, reliably installed seal as well as a removable odour trap. Variant Sealing water height: 30 mm Discharge rate (l/s) with 20 mm backwater: 0,8 General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Dimensions Vertical adjustment: 19 - 27 mm Net weight: 0,99 kg Gross weight: 1,21 kg Cutout dimension, width: 350 mm Cutout dimension, length: 350 mm Vertical adjustment: vertically adjustable upper section Length: 332 mm Width: 332 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Tank/drain body Number of outlets: 1 Inlet nominal size (DN): 40 mm Inlet type: 1 Material of drain body: PP Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 100 mm Length of cover: 100 mm Frame material: PP Cover locking: placed Load class: K 3 (EN 1253-1) Rim length: 107 mm Rim material: 107 mm Upper section material: PP Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Adapter DN 50/40 27118 Show
    Adapter DN 50/70 27126 Show
    Extension section System 100, H: 161 mm 27146 Show
    Sludge bucket d: 110 mm 27168 Show
    Extension section System 100, with pressure sealing flange 27198 Show
    Extension section System 100, with glued flange 27199 Show
    Odour trap Multistop, System 100 43500 Show
    Hair filter Polymer, for System 100 bathroom drains 43700 Show
    Membrane 500 x 500 mm 43710 Show
    Membrane EPDM, 500 x 500 mm 43730 Show
    KESSEL System 100 glue flange 47900 Show
      Title Item no.
    Slotted cover 100x100 mm, SST 27150 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): PP
    • Type of cover (abdeckungsart): Slotted cover
