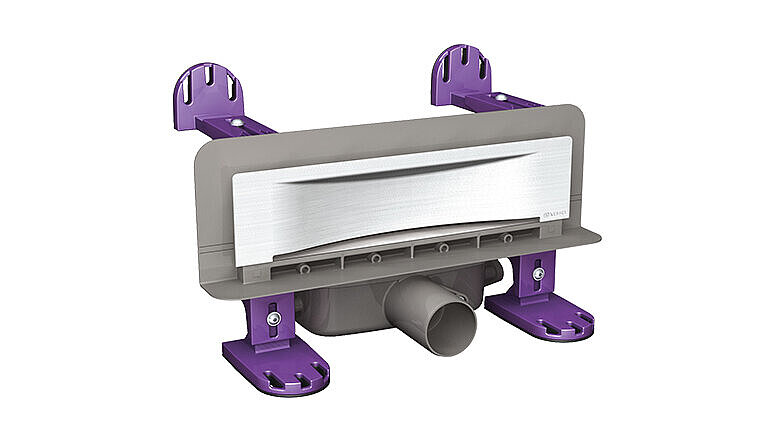

Scada wall drain

The award-winning drain for exclusive bathrooms.

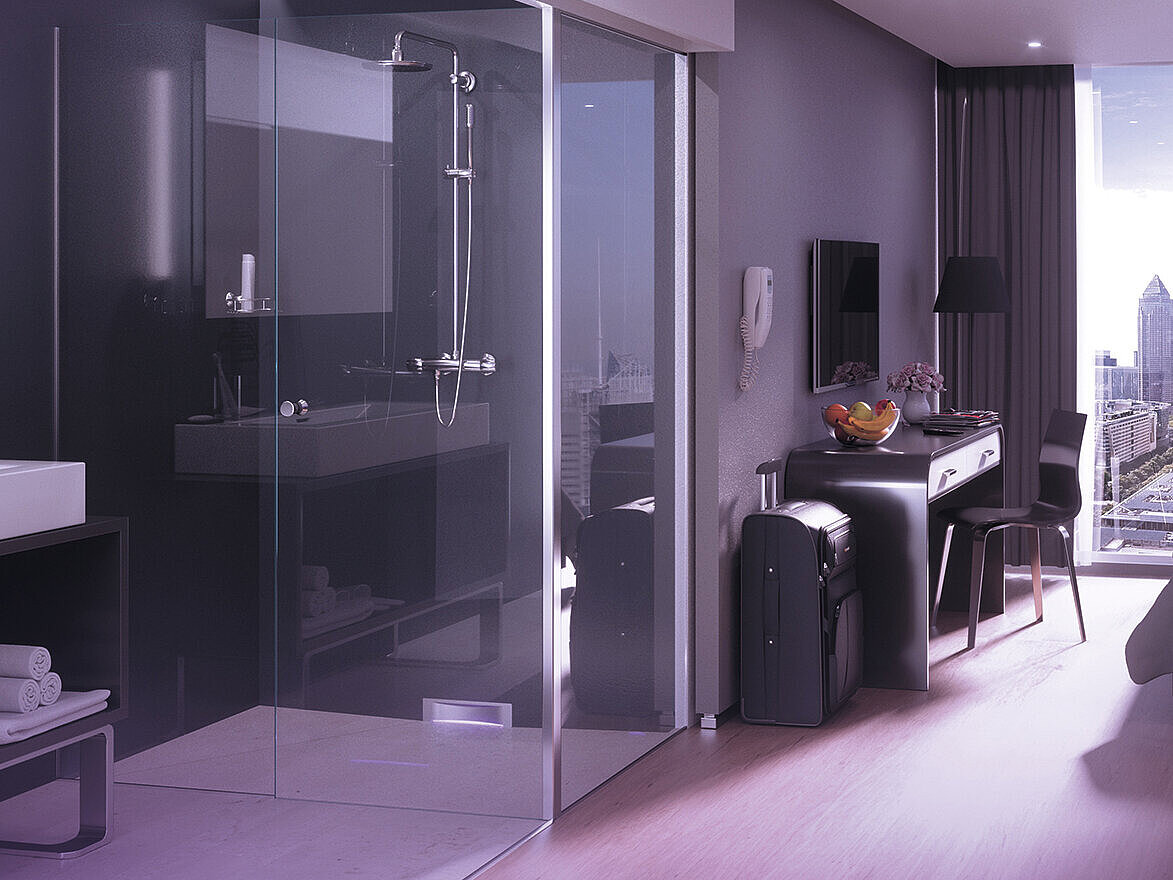

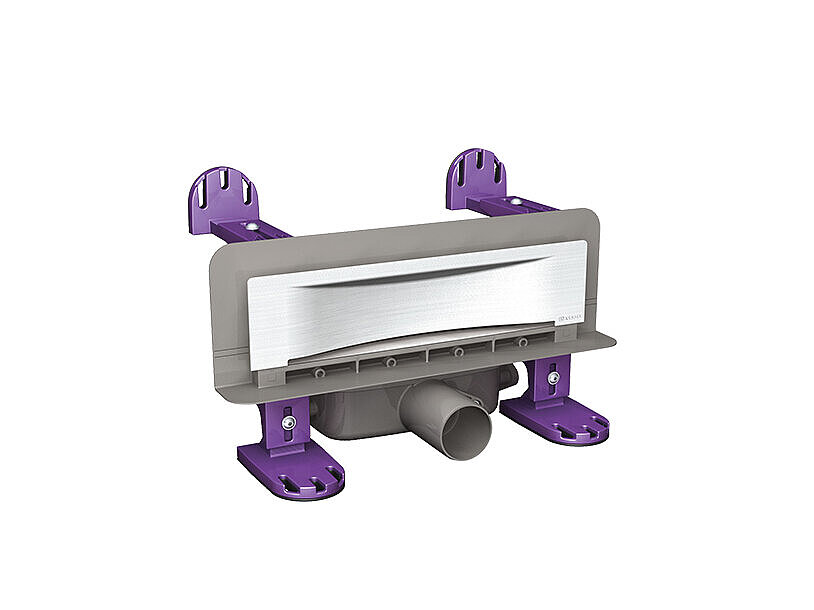

The design award-winning Scada wall drain is a real “eye-catcher” that gives your bathroom a quite exclusive look. Rather than being in the floor, this compact drain is set into the wall, thus creating the pre-requisites for a 100% floor-level and freely accessible shower. Thanks to its low installation depth of only 80 mm to the top of the tile, the Scada is also ideally suited for renovation projects. There is a choice of four high-quality drain covers available for the Scada wall drain – including versions with LED lighting!

Advantages  Article overview

Award-winning design

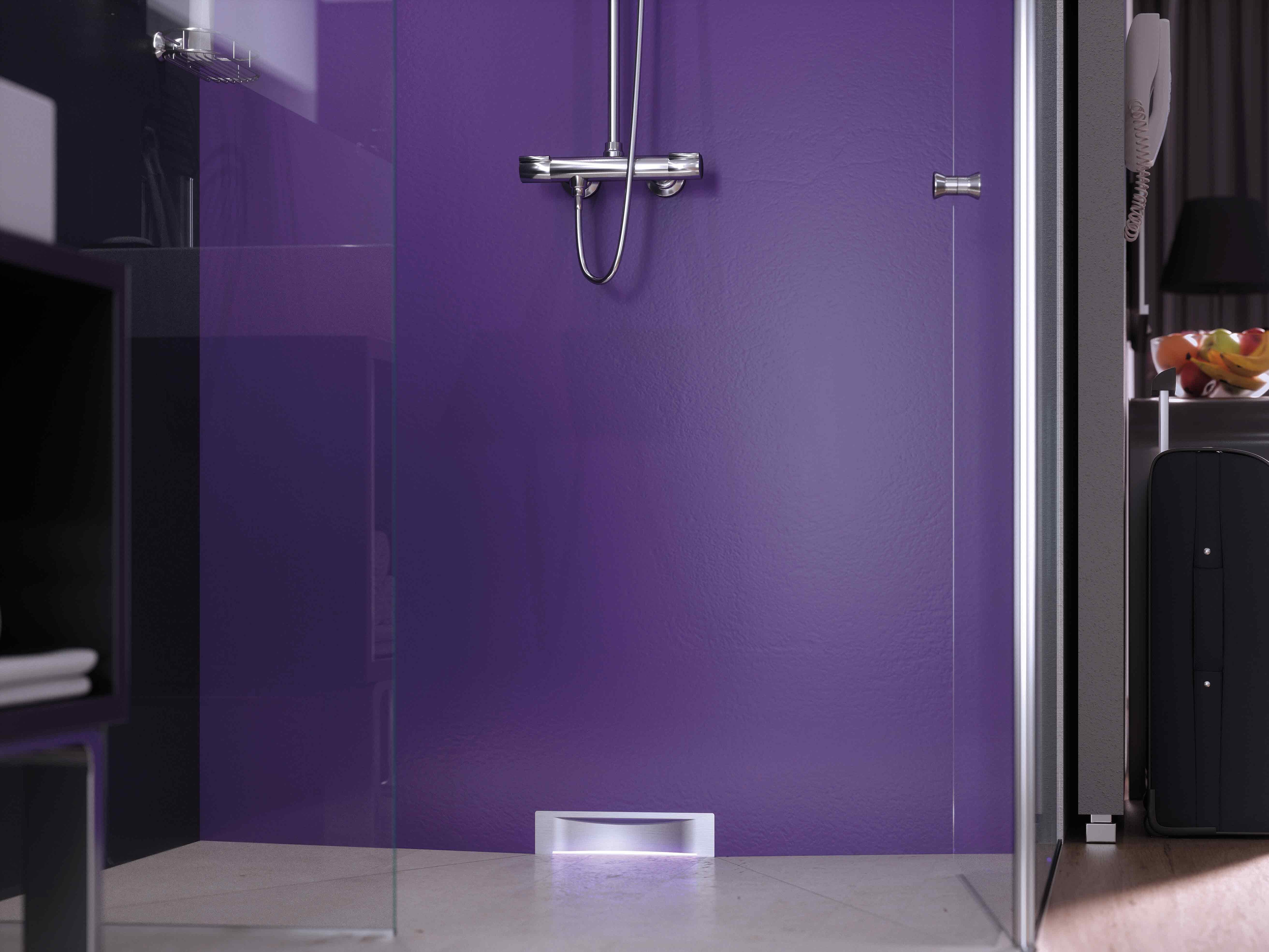

The Scada wall drainis a real feast for the eyes – this is not only our opinion but that of the judges of the Dobry Design Award. Of course, this does not change the fact that tastes are different. That's why we provide four different drain covers made of V2A stainless steel to choose from for the wall drain: two smooth versions for different tile thicknesses, one cover in a three-dimensional wave look as well as the “invisible” version, which can be individually tiled and is therefore integrated almost seamlessly into the wall of the shower area. All versions can also be equipped with an exclusive KESSEL highlight: atmospheric LED lighting with an automatic colour change program or an individual choice of light colour (12 volt low-voltage technology and cable duct included).

Flexible & convenient installation options

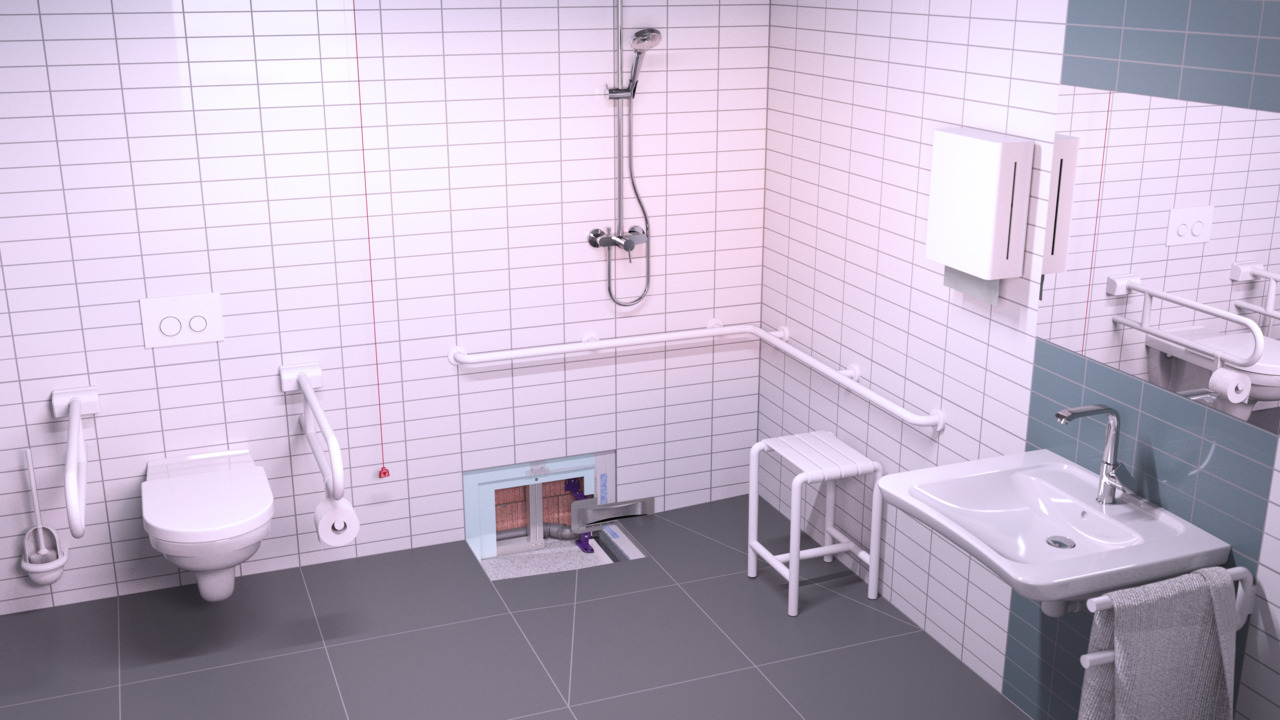

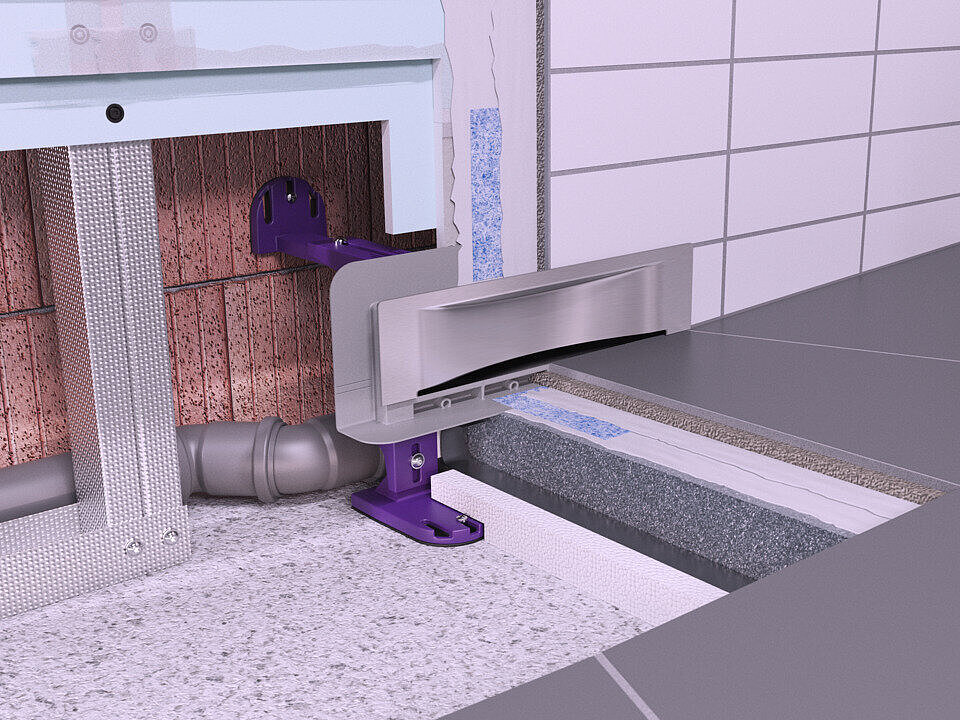

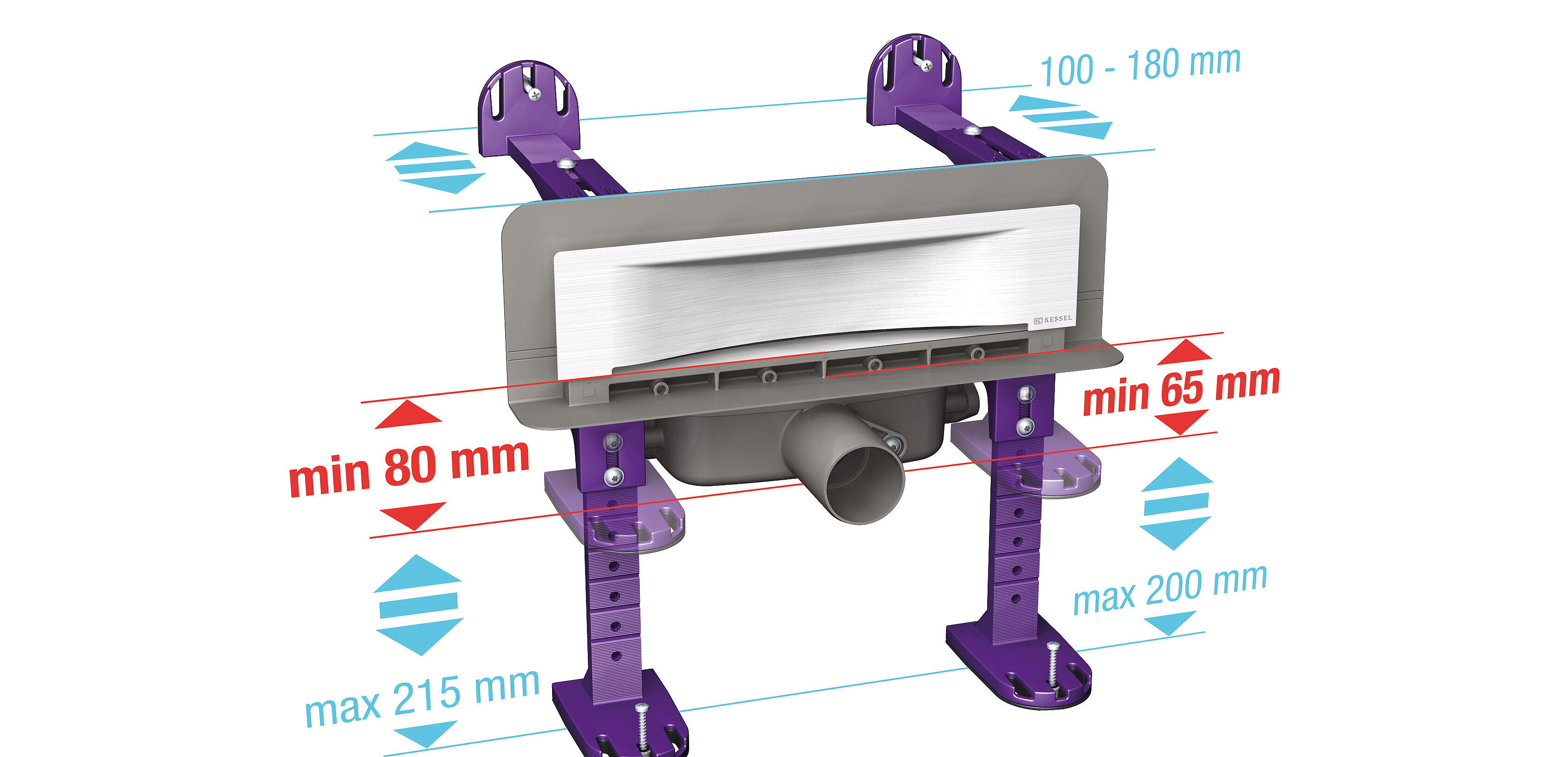

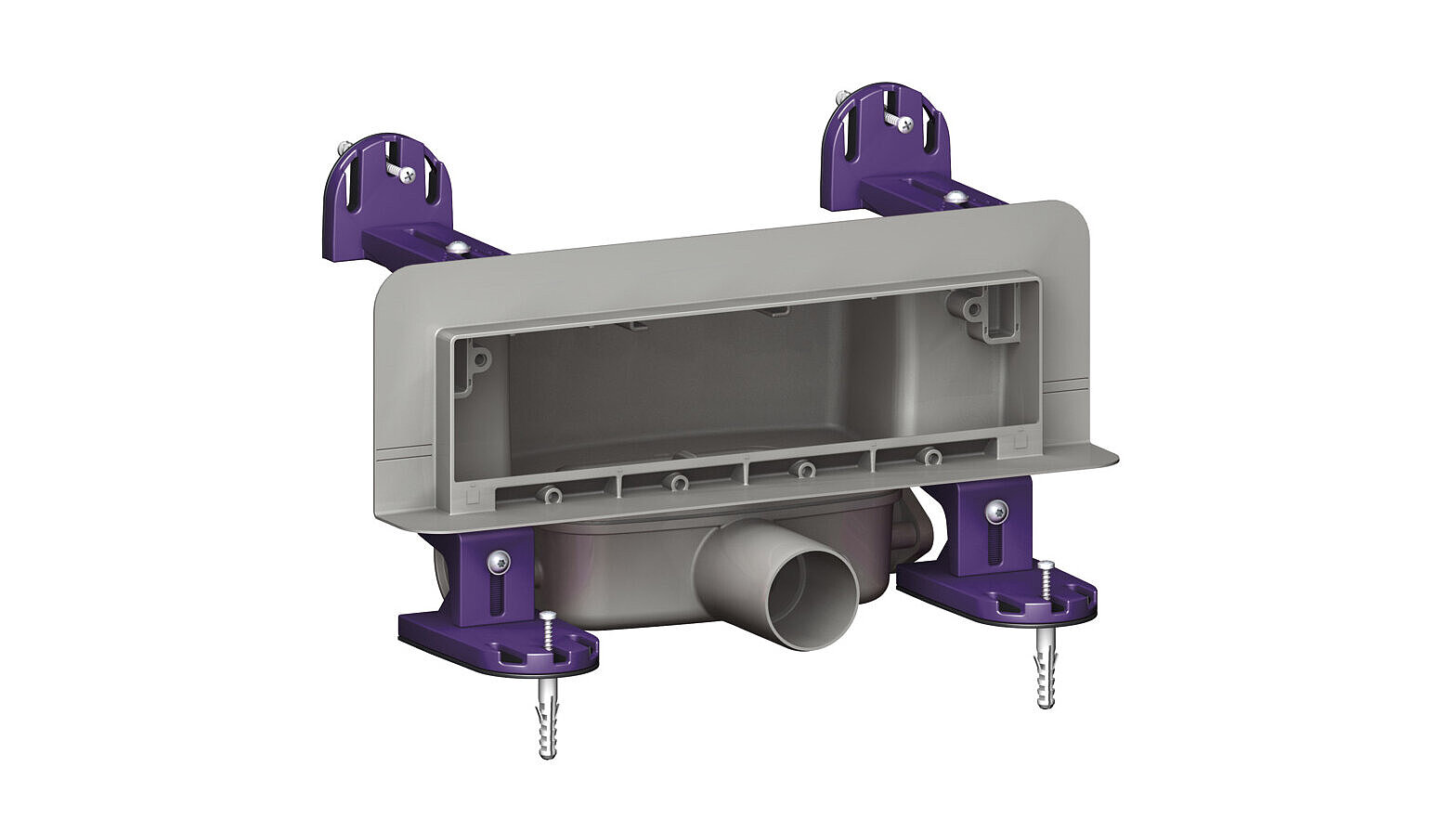

For easy installation in various conditions, the SCADA wall drain is available as a wet and dry design. Continuously height-adjustable installation supports are used, which enable convenient adjustment of the overall installation depth from 80 to 215 mm up to the top of the tile, as well as individual distances from the wall ranging from 100 to 180 mm. Thanks to different connection options (front, horizontal left or right), it is not necessary to move the drain pipe on site and underfloor heating can be easily laid.

Maximum accessibility

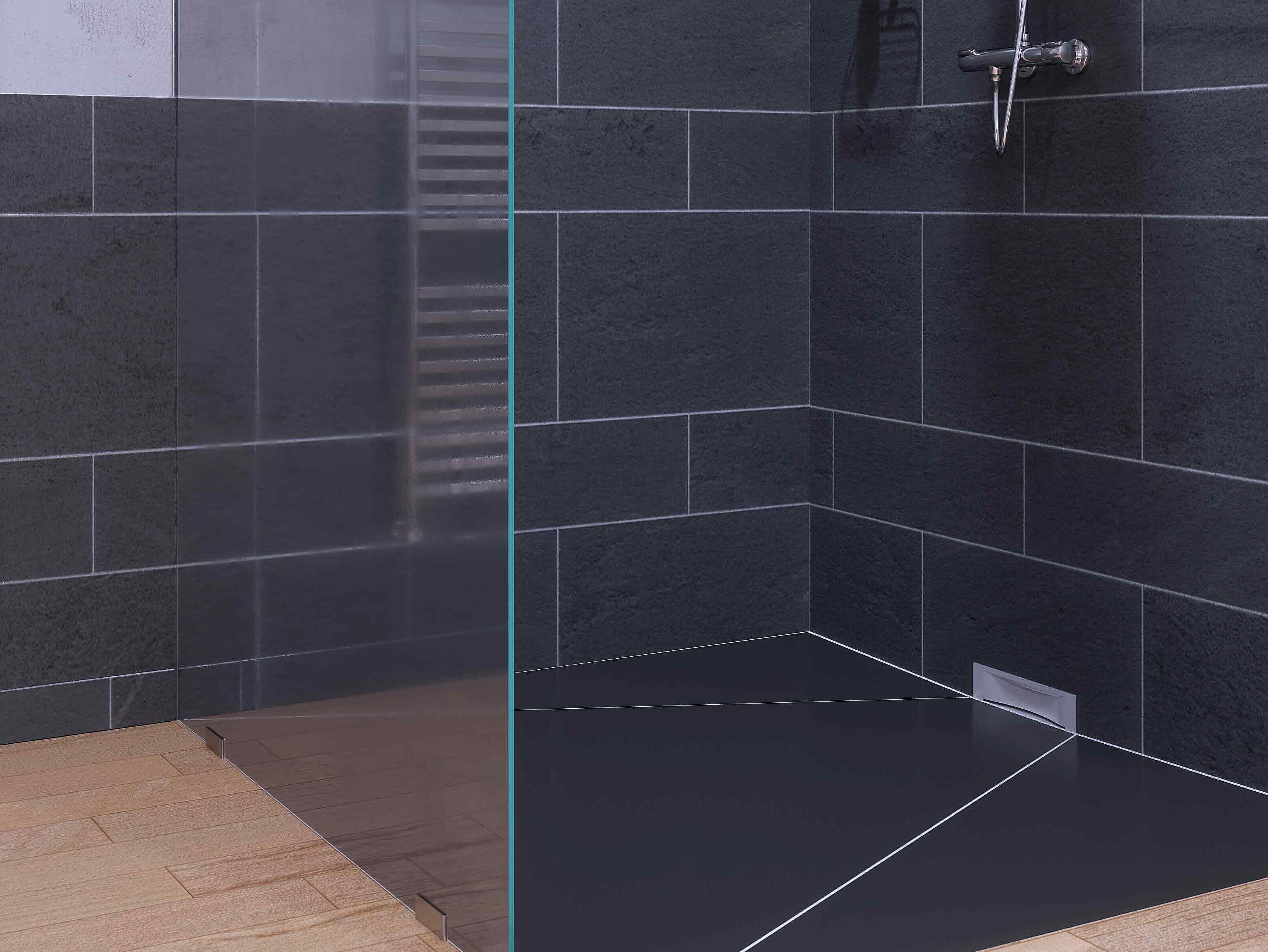

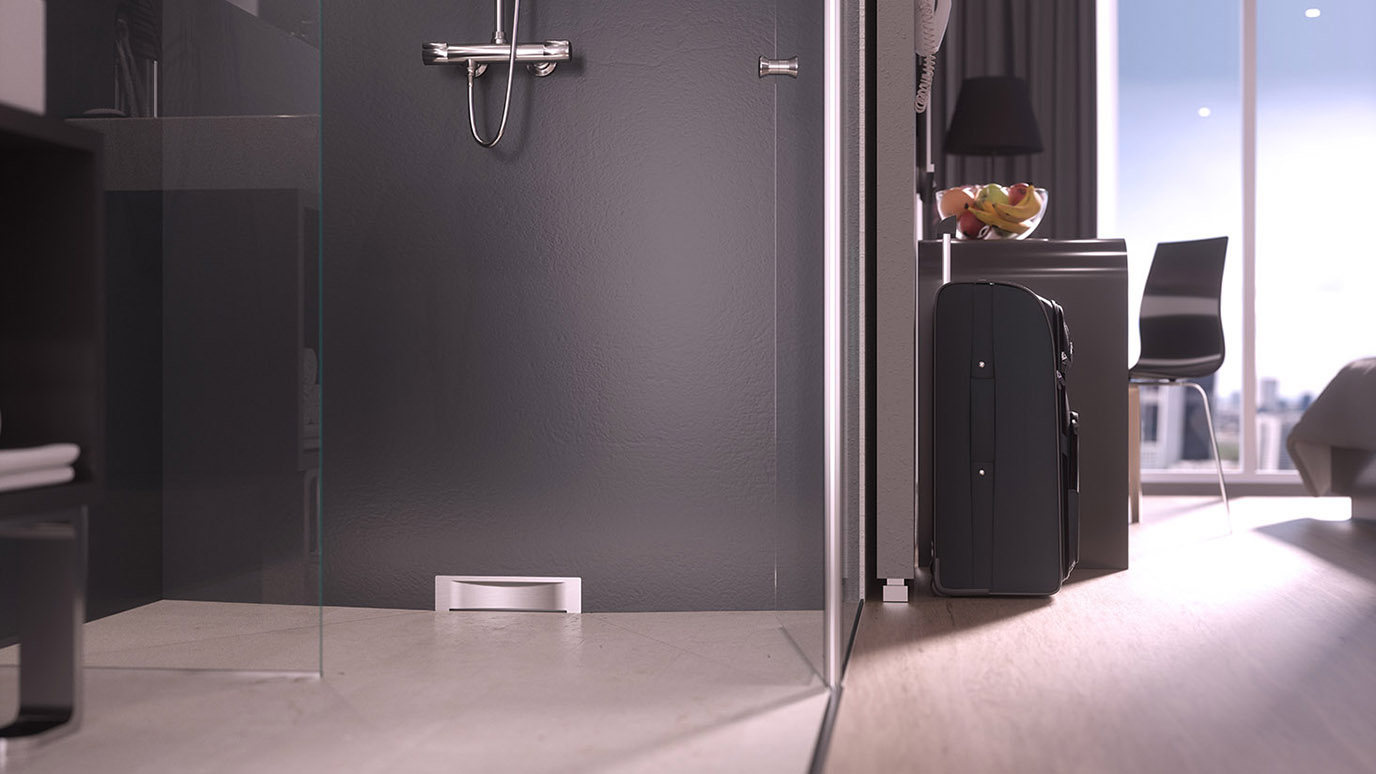

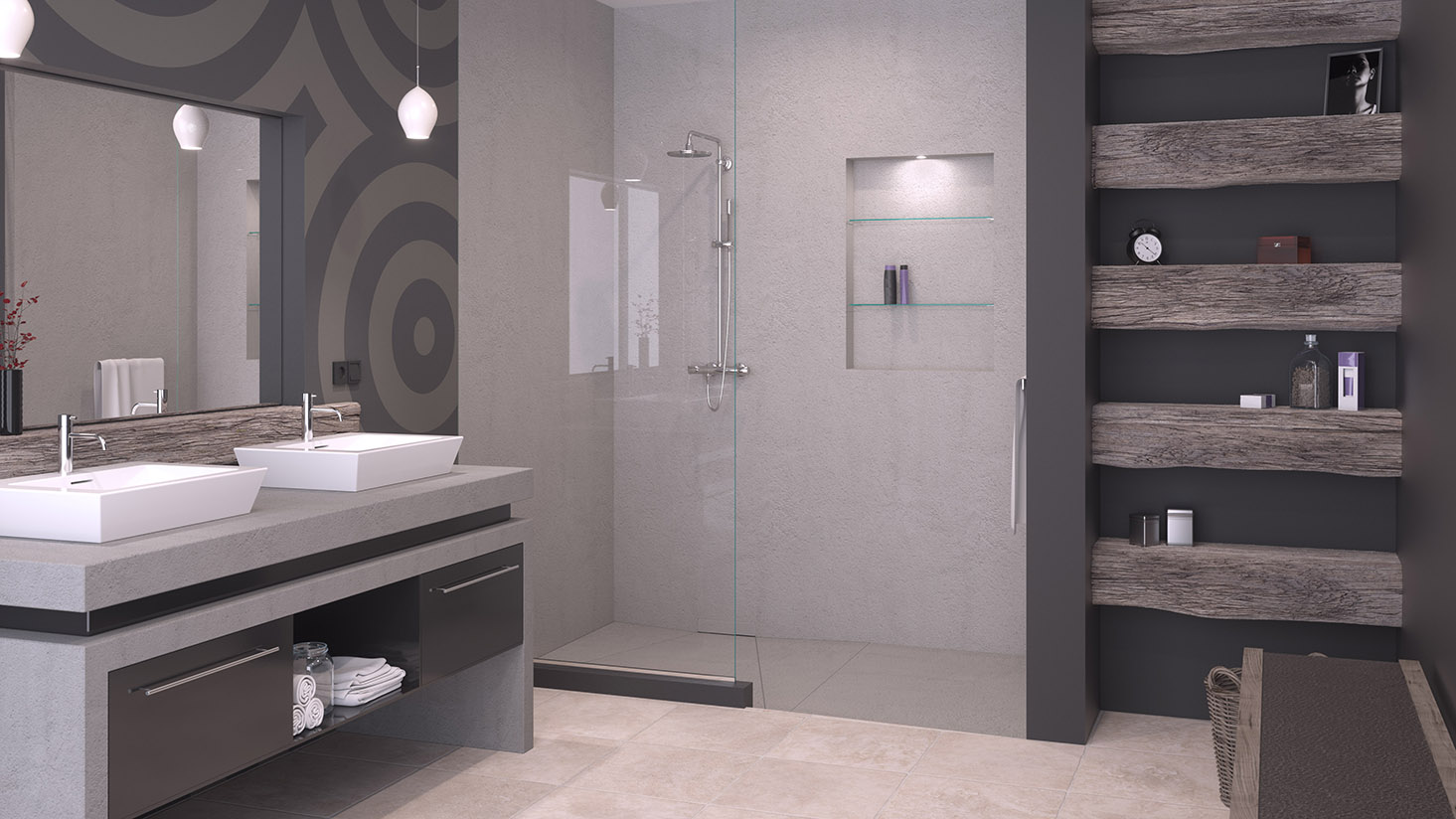

It couldn't get better: s the Scada is set into the wall, the floor of the shower area remains completely untouched. This not only looks good, but also removes the last "stumbling blocks" in the shower area – accessibility in a pure culture.

Wall drains Scada

Grating design: Invisible

Nominal size (DN) Length Width Lighting Item no.
48000.01M 50 362  MMT 195  MMT without 48000.01M
48003.41M 50 362  MMT 195  MMT LED 48003.41M
48011 - - - - 48011

Grating design: Standard 67

Nominal size (DN) Length Width Lighting Item no.
48000.04M 50 362  MMT 195  MMT without 48000.04M
48003.44M 50 362  MMT 195  MMT LED 48003.44M
48014 - - - - 48014

Grating design: Standard 74

Nominal size (DN) Length Width Lighting Item no.
48000.02M 50 362  MMT 195  MMT without 48000.02M
48003.42M 50 362  MMT 195  MMT LED 48003.42M
48012 - - - - 48012

Grating design: Wave

Nominal size (DN) Length Width Lighting Item no.
48000.03M 50 362  MMT 195  MMT without 48000.03M
48003.43M 50 362  MMT 195  MMT LED 48003.43M
48013 - - - - 48013

Grating design: -

Nominal size (DN) Length Width Lighting Item no.
48000M 50 362  MMT 195  MMT - 48000M
48003M 50 362  MMT 195  MMT LED 48003M
48018 - 386  MMT - - 48018
680078 - - - - 680078
680685 - - - - 680685

Not found the right product?

In addition to our standard drains and channels, we also develop customised solutions at the customer's request for special demands in terms of form, function and dimensioning.

Individual solutions
