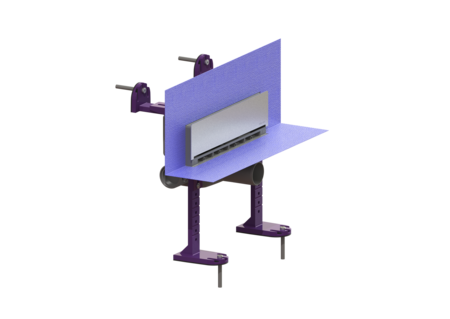

Drain body, Scada wall drain

w/cov, SST, 10 mm, fixed w/prf membrn

Used in combination with Scada drain covers, the drain body for Scada wall drains is suitable for indoor wall/floor drainage, is equipped with an odour trap and provides connection options at the front, left and right-hand side.

  • Award-winning design
  • Flexible & convenient installation options
  • Alternative odour trap Multistop
Item no. 48000.02M
GTIN 4026092079126
Price group 10

    Drain body, Scada wall drain w/cov, SST, 10 mm, fixed w/prf membrn
    The Scada wall drain is suitable for indoor floor drainage and provides connection options at the front, left and right-hand side. Variant Lighting: without Waterproofing layer on the drain body: Factory-fitted sealing collar (WaD) according to DIN 18534 Water supply: W3-I Sealing water height: 22 mm Discharge rate (l/s) with 20 mm backwater: 0,5 General characteristics Nominal size (DN): 50 Outer diameter (OD): 58 mm Dimensions Net weight: 2,29 kg Gross weight: 2,42 kg Width: 195 mm Height: 353 mm Length: 362 mm Packaging dimension: width: 295 mm Packaging dimension: height: 269 mm Packaging dimension: length: 395 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Coverage features Type of cover: Scada drain cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 74 mm Length of cover: 312 mm Min. flooring height: 15 mm Frame material: ABS Cover locking: inserted Grating colour: Standard 74 Max. flooring height: 19 mm Shape of upper section: square Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Dry-walling board for stud wall, Scada wall drain 48063 Show
    Odour trap Multistop, for Linearis Compact & Scada 48400 Show
    Hair filter Polymer, for shower channels 48800 Show
      Title Item no.
    KESSEL Scadacover, stainless steel 300mm 48012 Show
    Odour trap Linearis, Seal. water height 22 mm 48603 Show
    Spare parts set Scada wall drain 680685 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): ABS
    • Upper section material (material_aufsatzstueck): ABS
    • Length (laenge): 362  mm
    • Width (breite): 195  mm
    • Lighting (beleuchtung): without
