Ecoguss parking deck drains

The durable solution made of Ecoguss.

An innovation that sets standards: For our parking deck drains we use our Ecoguss high-tech composite material, which combines the specific advantages of polymer and metal and is an economic and easy to install alternative to drains made of grey iron. At the same time, parking deck drains made of Ecoguss offer major advantages with regard to hygiene as well as fire protection and sound insulation and are extremely durable and breakproof. They are therefore ideally suited for use in underground car parks, multi-storey car parks or industrial buildings.

Parking deck drains made of Ecoguss are available in a round or square design and in different nominal sizes ranging from DN 70 to DN 125.

Advantages  Article overview

Breakproof and durable

Our parking deck drains made of Ecoguss are completely breakproof and fulfil the requirements of load class B 125. They can therefore be loaded with up to 12.5 tonnes and can be easily driven on by cars or trucks.

Parking deck drains

  Nominal size (DN)Waterproofing layer on the drain bodySystemShape of upper section Item no.
48501 100 Connection flange 100 square 48501

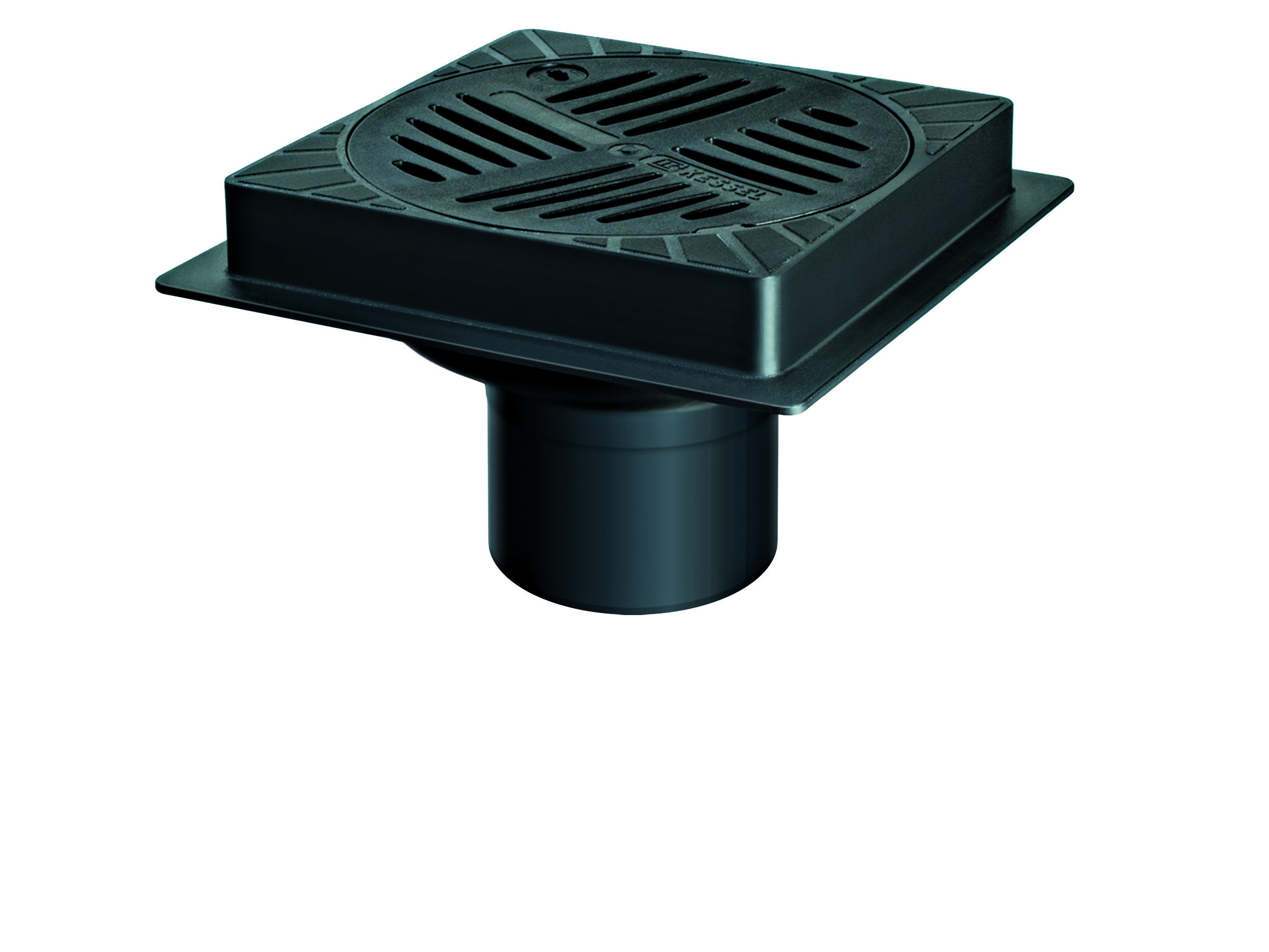

48502 125 Connection flange 125 square 48502
48503 100 Connection flange 100 round 48503

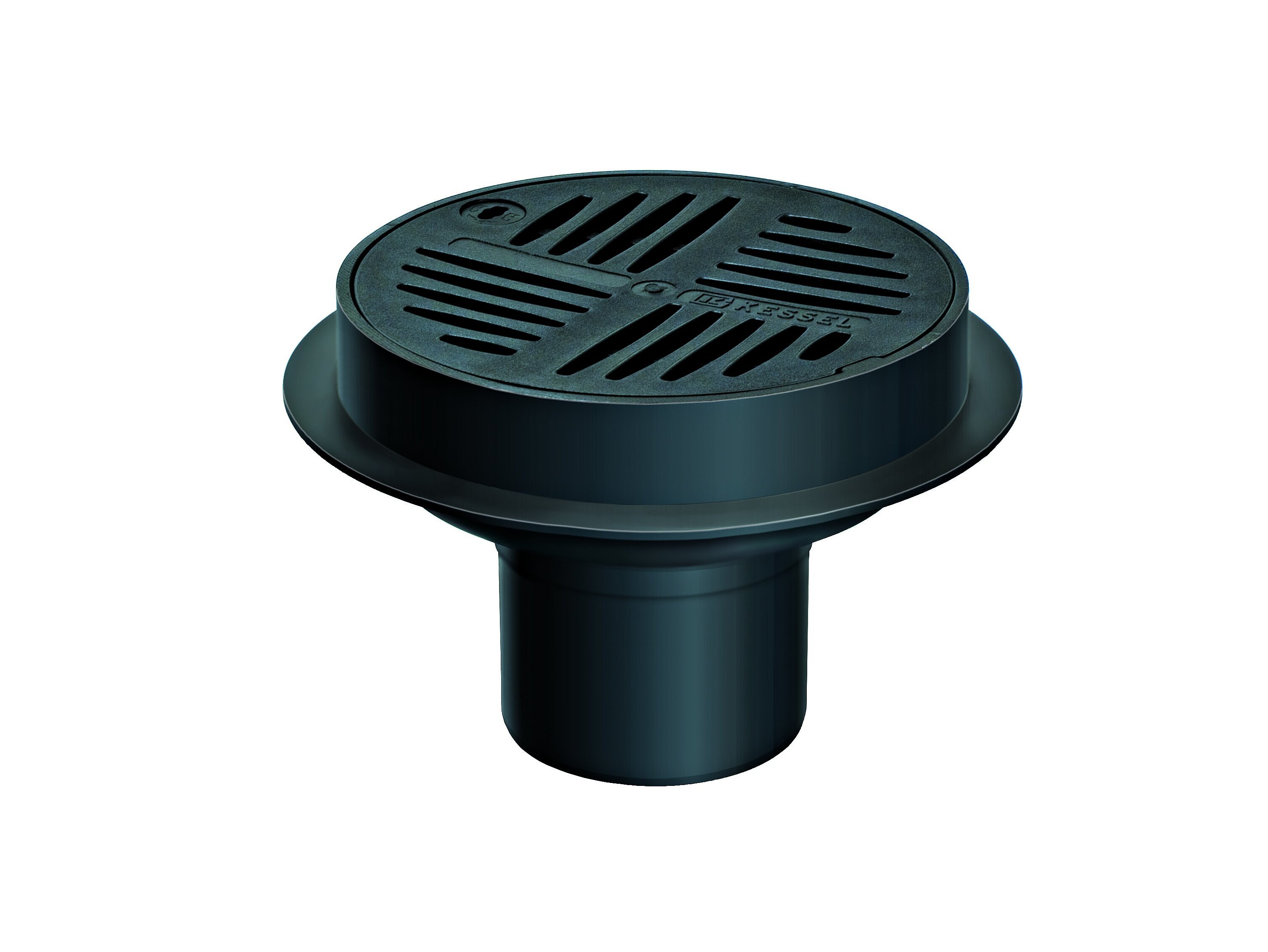

48504 125 Connection flange 125 round 48504

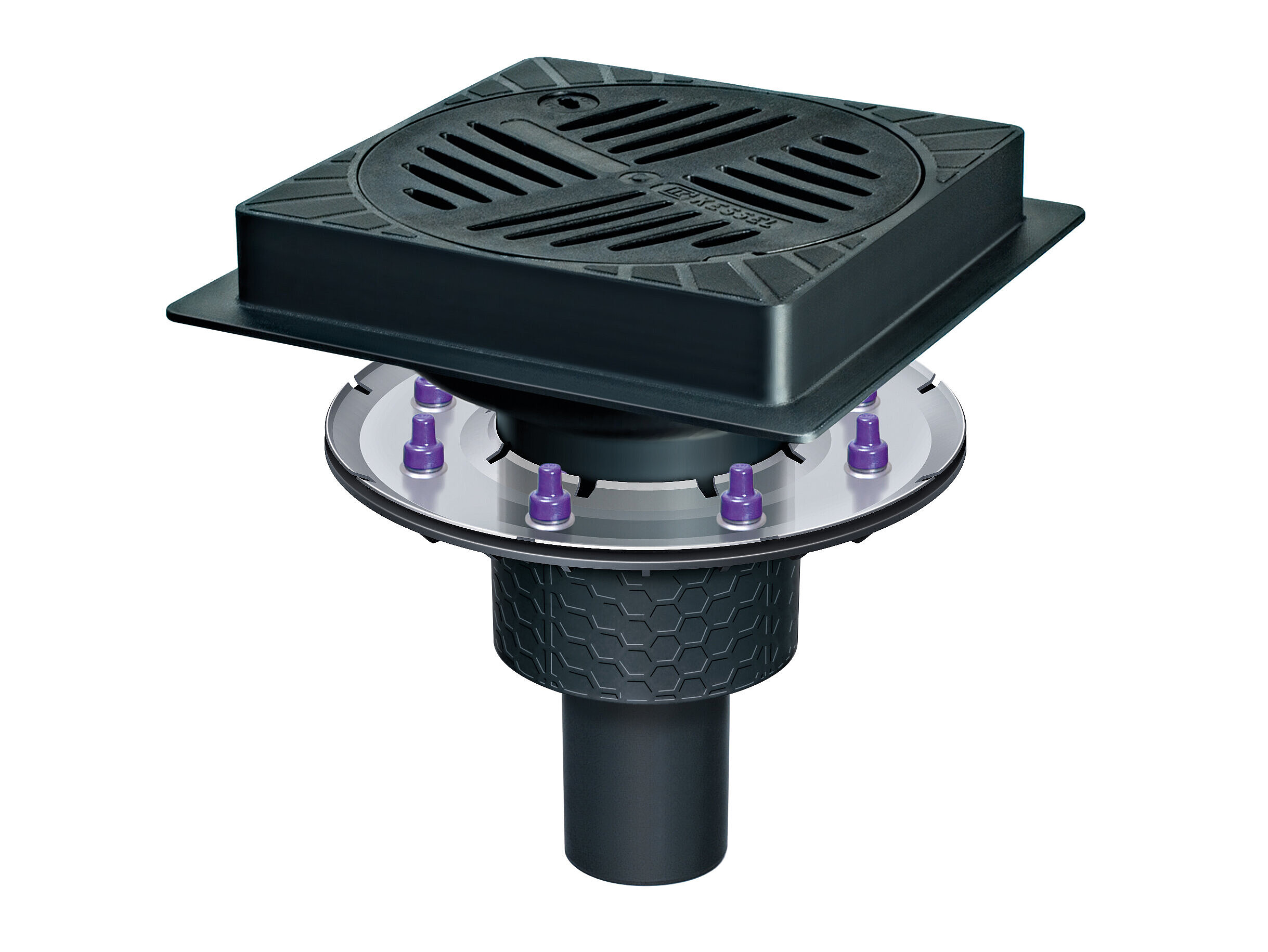

48811.01 100 Press sealing flange (suitable for creating watertight seals) 125 square 48811.01

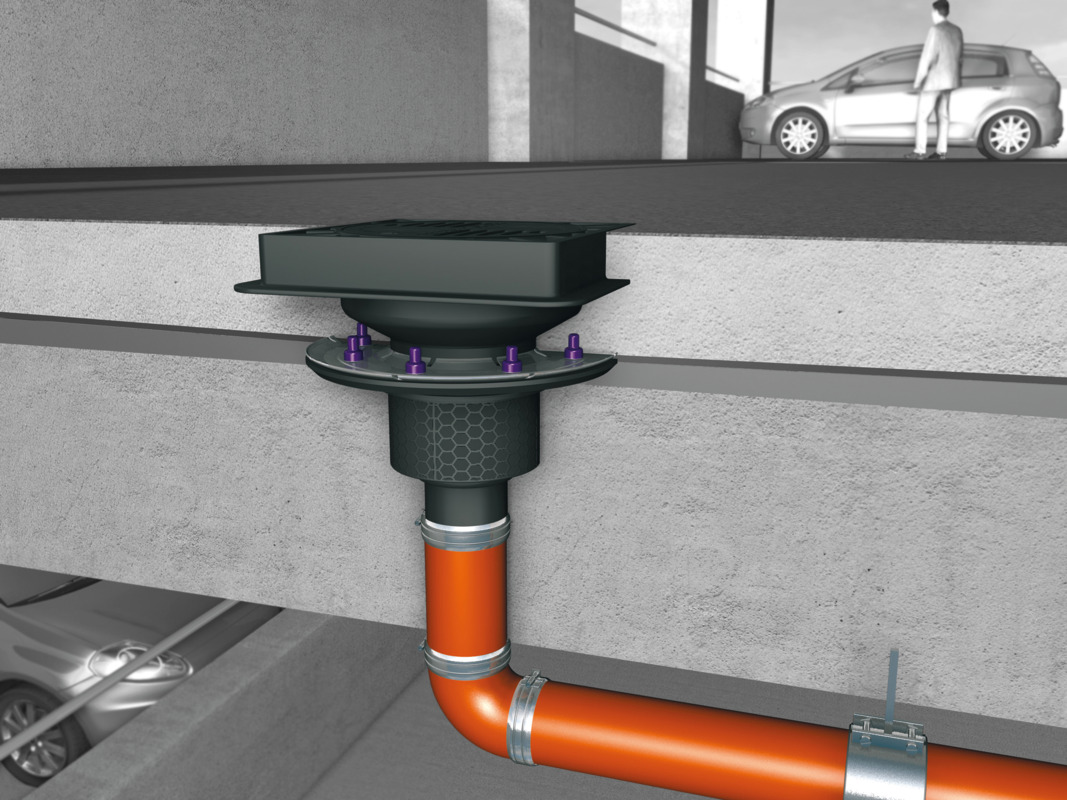

48878.01 70 Press sealing flange (suitable for creating watertight seals) 125 square 48878.01

Not found the right product?

In addition to our standard drains and channels, we also develop customised solutions at the customer's request for special demands in terms of form, function and dimensioning.

Individual solutions
