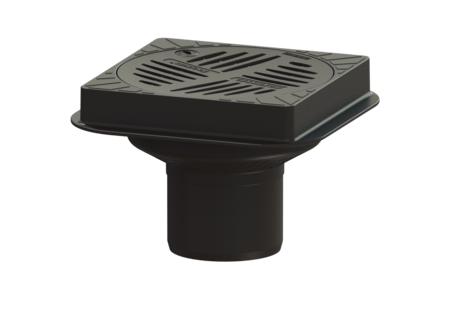

Parking deck drain, Ecoguss
DN 125, square, Connection polymer pipe
The Ecoguss parking deck drain is used for point drainage and is equipped with a sludge bucket. The recyclable composite material Ecoguss is temperature resistant and has a permanently corrosion-free surface. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. For products with pressure sealing flange: The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only membranes tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. It can be exposed to flames for short periods, 100 up to 400 degrees Celsius.
- Breakproof & load resistant
- withstand temperatures up to 400 degrees Celsius
| Item no. | 48502 |
|---|---|
| GTIN | 4026092036112 |
| Price group | 40 |
Parking deck drain, Ecoguss DN 125, square, Connection polymer pipe
The Ecoguss parking deck drain is used for point drainage and is equipped with a sludge bucket. The recyclable composite material Ecoguss is temperature resistant and has a permanently corrosion-free surface. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. For products with pressure sealing flange: The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only membranes tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. It can be exposed to flames for short periods, 100 up to 400 degrees Celsius. Variant System: 125 Contents of sludge trap: yes Waterproofing layer on the drain body: Connection flange Discharge rate (l/s) with 20 mm backwater: 4,5 General characteristics Standard: EN 1253-2 Nominal size (DN): 125 Outer diameter (OD): 125 mm Dimensions Net weight: 2,86 kg Gross weight: 3,24 kg Diameter: 290 mm Cutout dimension, width: 300 mm Cutout dimension, length: 300 mm Width: 290 mm Height: 196 mm Length: 290 mm Packaging dimension: width: 340 mm Packaging dimension: height: 215 mm Packaging dimension: length: 340 mm Tank/drain body Material of drain body: Ecoguss System: vertical Coverage features Type of cover: Round slotted cover Cover material: Ecoguss Colour of cover: black Width of cover: 234 mm Length of cover: 234 mm Surface: EDM Frame material: Ecoguss Cover locking: Lock & Lift Load class: B 125 (EN 124) Rim length: 247 mm Rim material: 247 mm Shape of upper section: square Upper section material: Ecoguss Contents of sludge trap: yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Nominal size (DN) (nennweite): 125
- Material of drain body (material_grundkoerper):
Ecoguss
- Cover material (abdeckung_material):
Ecoguss
- Frame material (rahmen_material):
Ecoguss
- Upper section material (material_aufsatzstueck):
Ecoguss
- Load class (belastungsklasse): B 125 (EN 124)
- Cover locking (verriegelung): Lock & Lift
- (form_Aufsatzstueck):
- Contents of sludge trap (schlammeimer): yes
- System (stutzen_ausfuehrung):
vertical
