Aquapump Medium pumping station

The compact solution for domestic use.

Aquapump Medium pumping station for faecal wastewater

The Aquapump Medium pumping station is the first choice when it comes to the disposal of wastewater below the backwater level in single households.

The internal diameter of the installation chamber is 600 mm and offers enough space for different versions: It is available as a Mono or Duo system with pumps in different performance classes for both faecal-free and faecal water. In addition, you can choose between level detection with a float switch or innovative pressure sensor. There are versions for installation depths of up to 1,800 mm, which are groundwater-resistant up to a depth of 2,500 mm depending on the model.

Advantages  Product overview

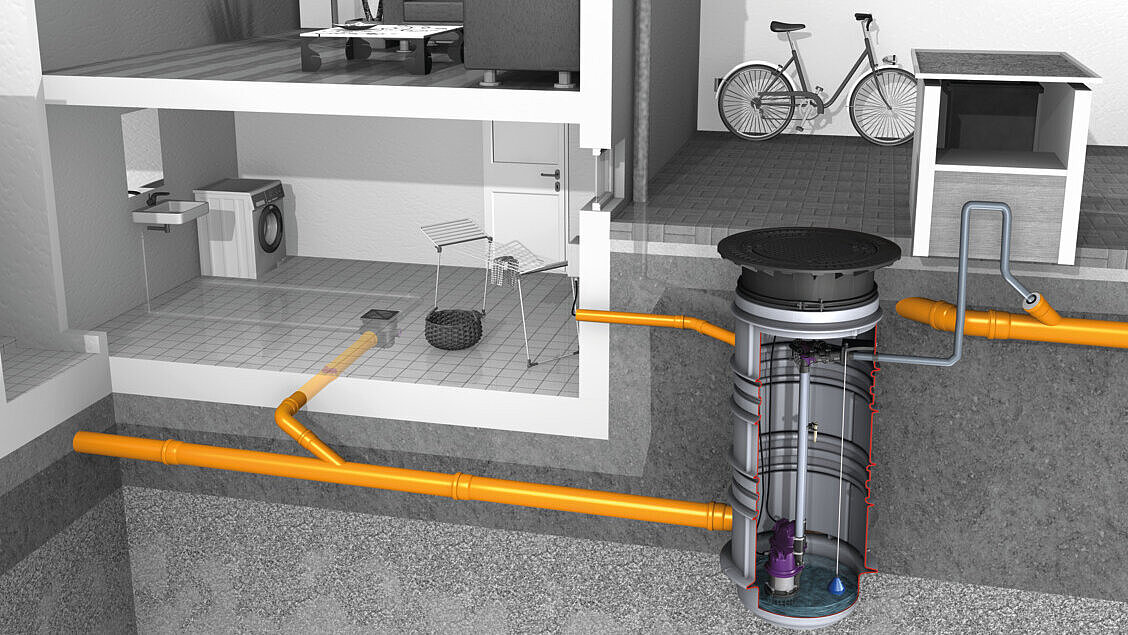

Installation diagram for Aquapump Medium pumping station for faecal wastewater

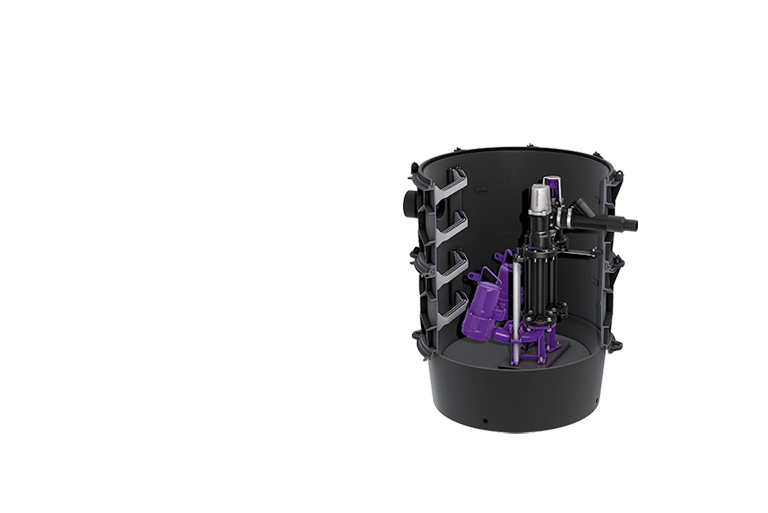

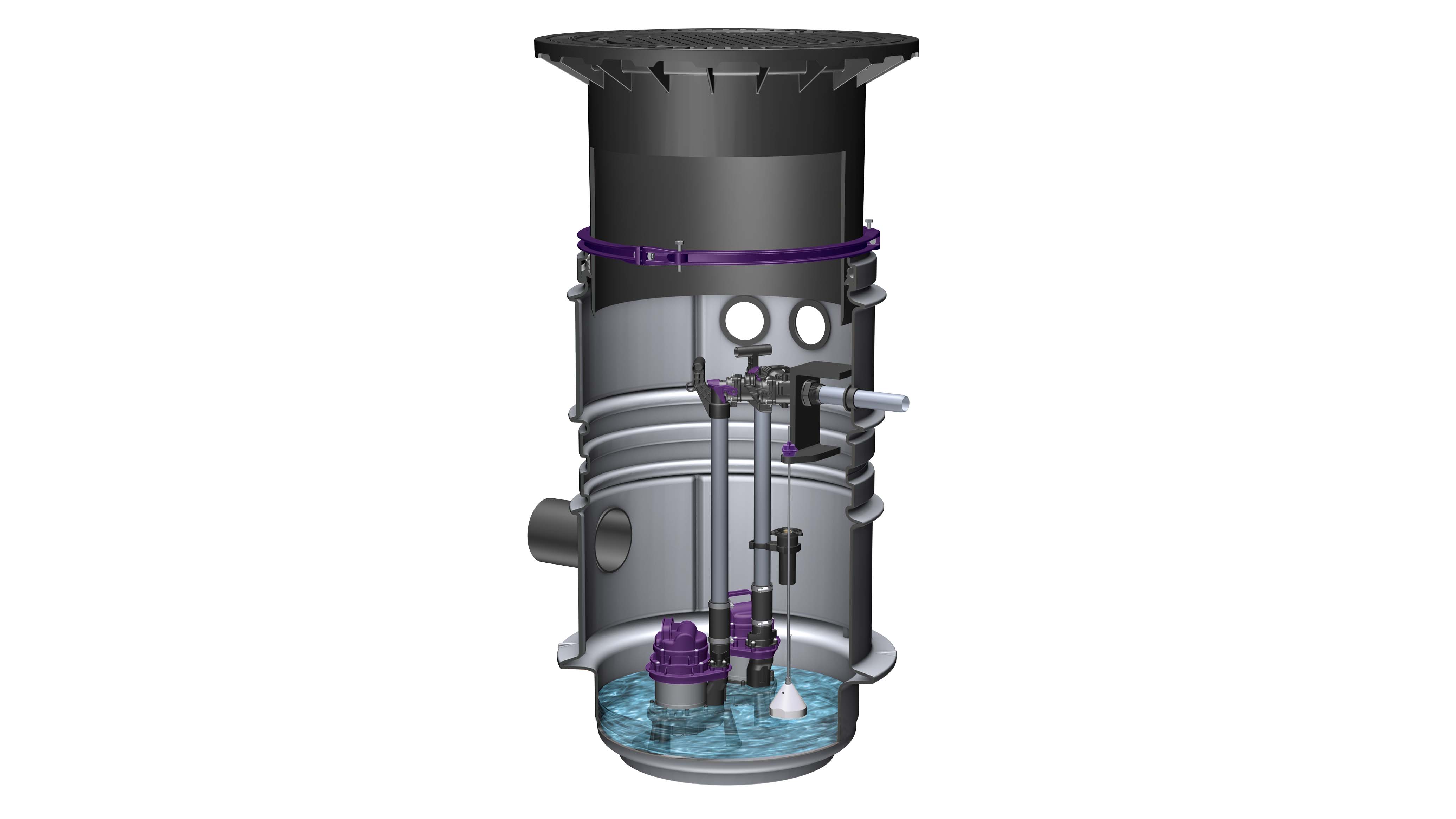

Pumping station Aquapump Medium

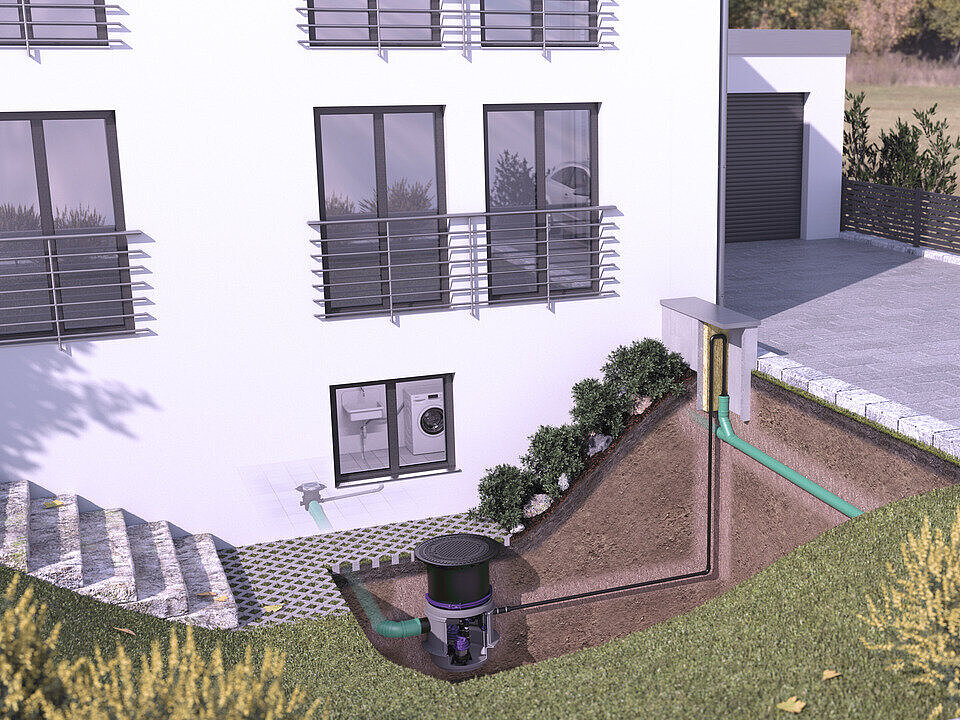

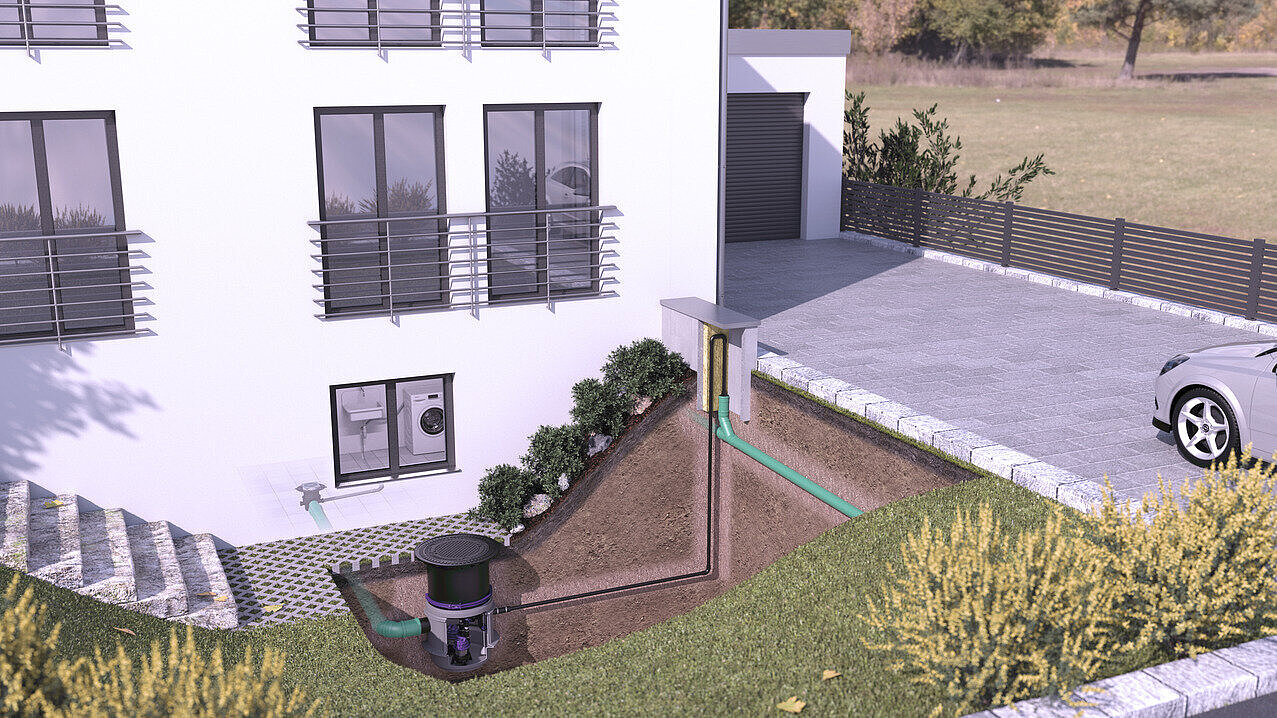

Installation diagram Pumping station Aquapump Medium
Pumping performance diagram for pump STZ 1000
Pumping performance diagram for pump GTF 600/1200

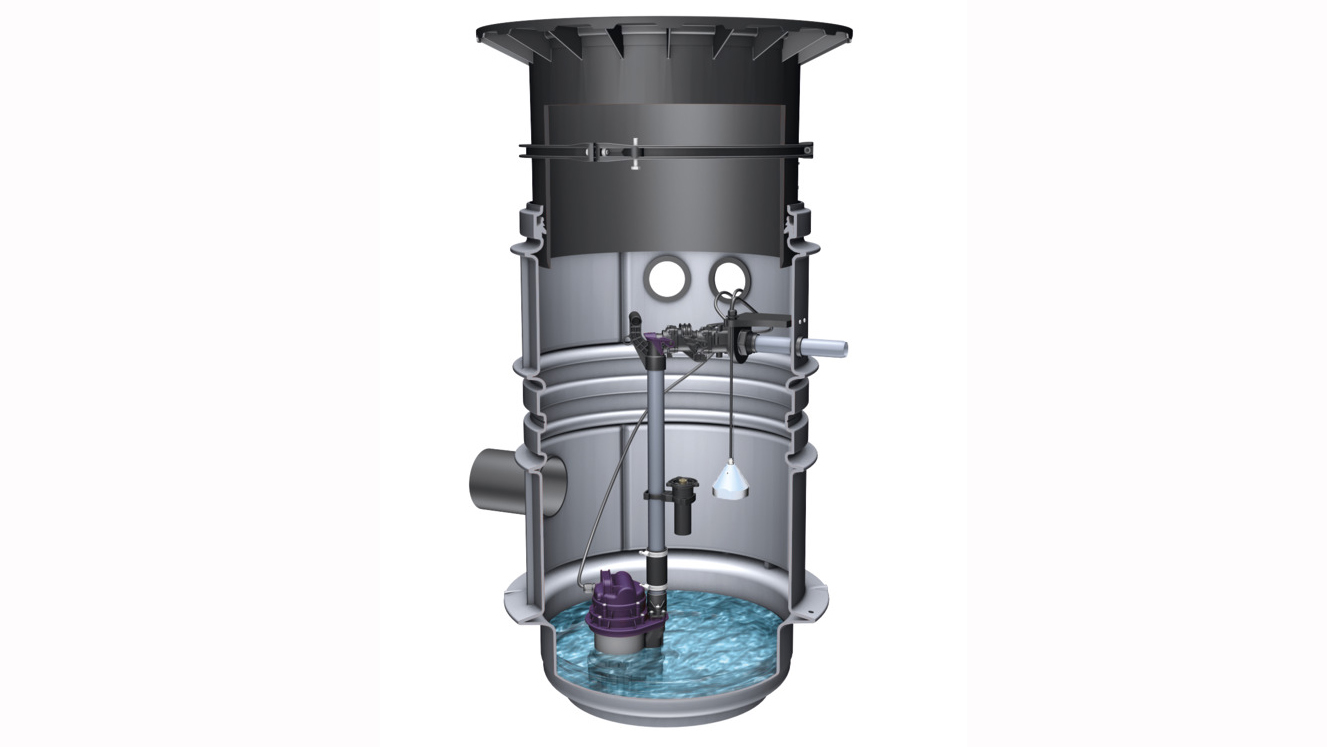

Aquapump Medium pumping station

Convenient installation

The low weight of the chamber components, high degree of pre-fabrication and the fixed connecting pieces for the inlet and pressure pipe all contribute to a fast and easy installation.

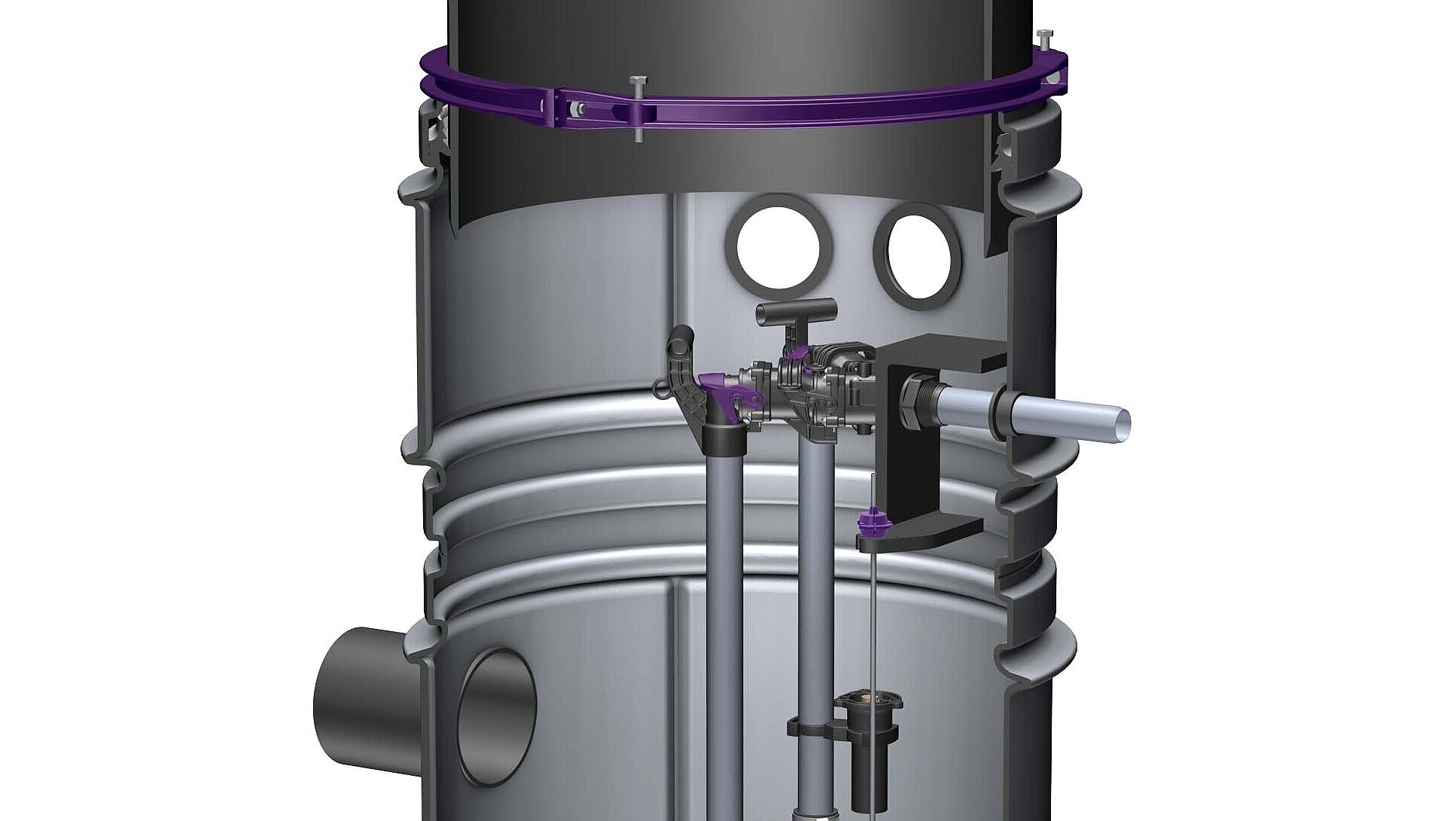

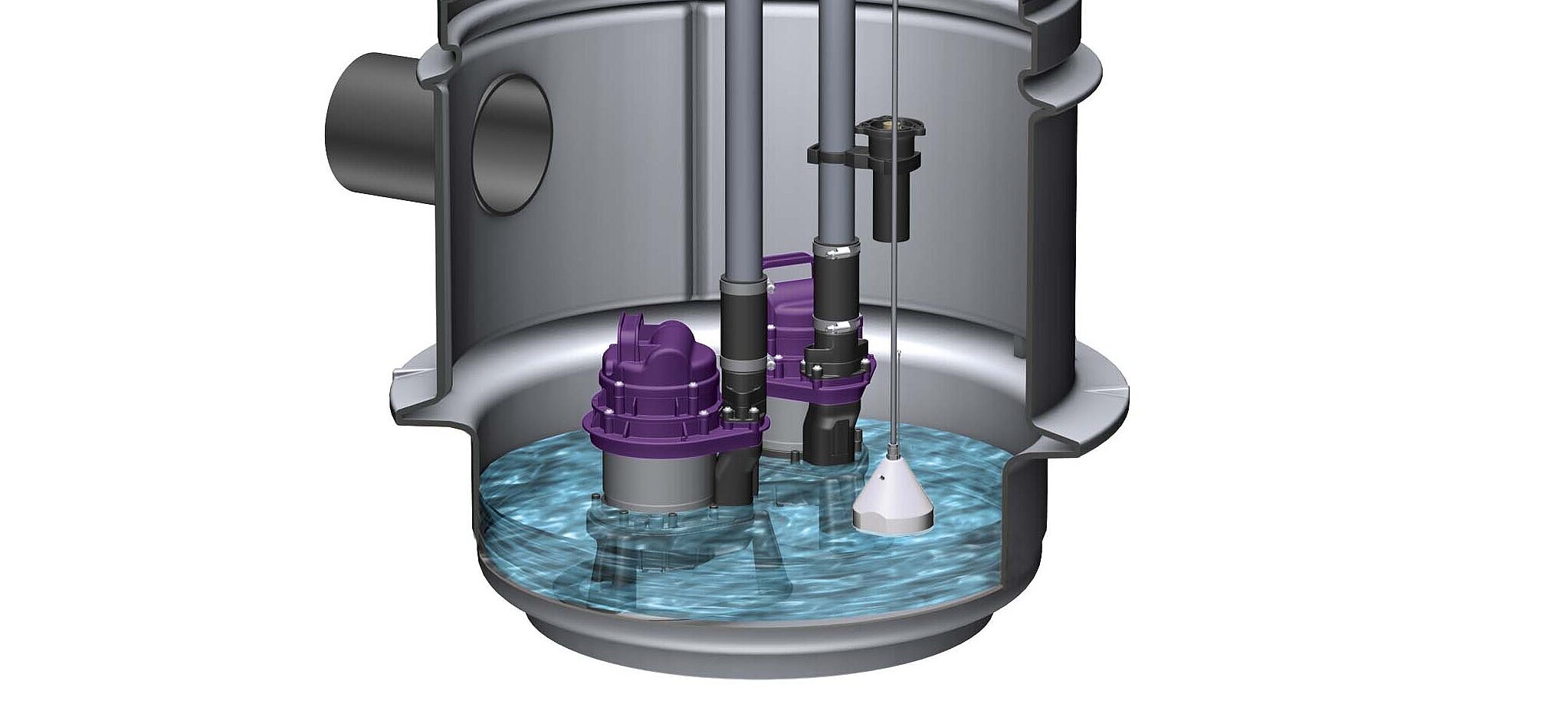

Aquapump Medium pumping station, pressure sensor and pumps

Maximum safety

The Aqualift Medium is available with a pressure sensor, which measures the level of the wastewater precisely and reliably: As soon as the maximum water level is reached, the pump conveys the water through a pressure pipe into the sewer. The control unit with the integrated SDS self-diagnosis system ensures additional safety.

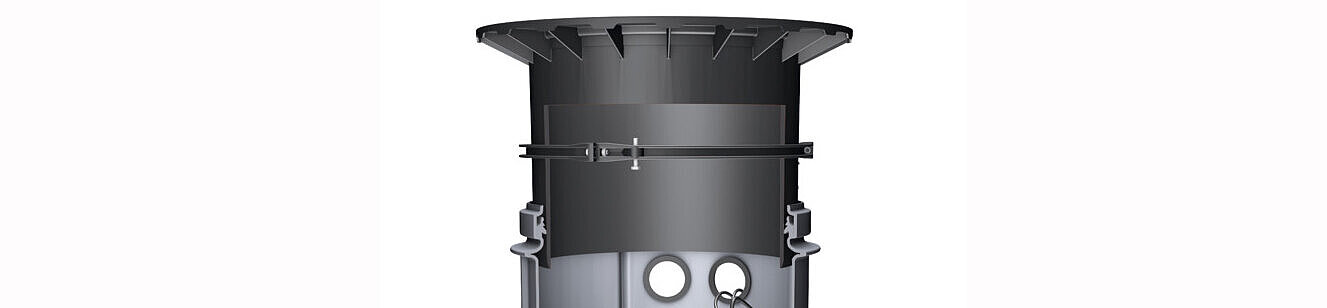

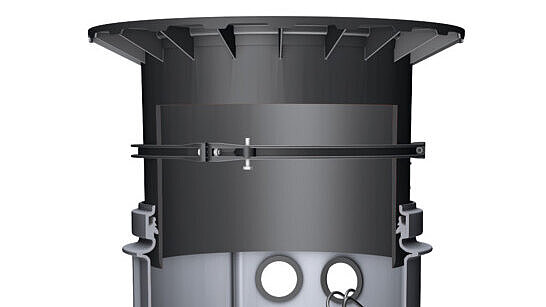

Aquapump Medium pumping station, variable upper section

Adjustable upper section

The height of the upper section can be adjusted by up to 500 mm. This makes it easy to adjust to the ground level.

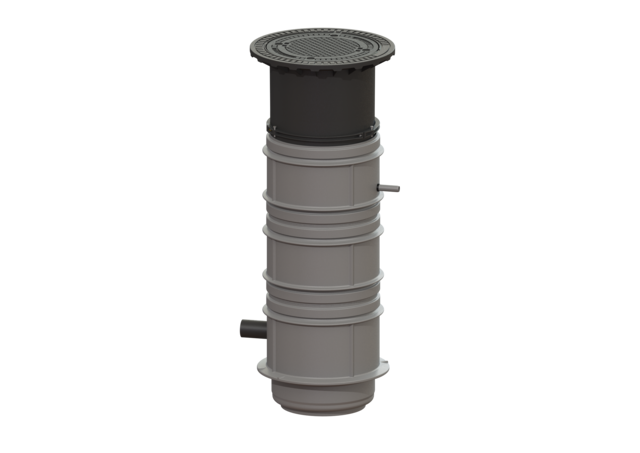

Pumping station Aquapump Medium

Type of wastewater: wastewater with and without sewage

Pump: STZ 1000

Installation depth Type of system Level measurement instrument Load class Item no.
826711A 800  MMT Twin pump station Submersible pressure switch A 15 (EN 124) 826711A
826711B 800  MMT Twin pump station Submersible pressure switch B 125 (EN 124) 826711B
826711D 800  MMT Twin pump station Submersible pressure switch D 400 (EN 124) 826711D
826721A 1,300  MMT Twin pump station Submersible pressure switch A 15 (EN 124) 826721A
826721B 1,300  MMT Twin pump station Submersible pressure switch B 125 (EN 124) 826721B
826721D 1,300  MMT Twin pump station Submersible pressure switch D 400 (EN 124) 826721D
826731A 1,800  MMT Twin pump station Submersible pressure switch A 15 (EN 124) 826731A
826731B 1,800  MMT Twin pump station Submersible pressure switch B 125 (EN 124) 826731B
826731D 1,800  MMT Twin pump station Submersible pressure switch D 400 (EN 124) 826731D
827710A 800  MMT Single station Float switch A 15 (EN 124) 827710A
827710B 800  MMT Single station Float switch B 125 (EN 124) 827710B
827710D 800  MMT Single station Float switch D 400 (EN 124) 827710D
827711A 800  MMT Single station Submersible pressure switch A 15 (EN 124) 827711A
827711B 800  MMT Single station Submersible pressure switch B 125 (EN 124) 827711B
827711D 800  MMT Single station Submersible pressure switch D 400 (EN 124) 827711D
827720A 1,300  MMT Single station Float switch A 15 (EN 124) 827720A
827720B 1,300  MMT Single station Float switch B 125 (EN 124) 827720B
827720D 1,300  MMT Single station Float switch D 400 (EN 124) 827720D
827721A 1,300  MMT Single station Submersible pressure switch A 15 (EN 124) 827721A
827721B 1,300  MMT Single station Submersible pressure switch B 125 (EN 124) 827721B
827721D 1,300  MMT Single station Submersible pressure switch D 400 (EN 124) 827721D
827730A 1,800  MMT Single station Float switch A 15 (EN 124) 827730A
827730B 1,800  MMT Single station Float switch B 125 (EN 124) 827730B
827730D 1,800  MMT Single station Float switch D 400 (EN 124) 827730D
827731A 1,800  MMT Single station Submersible pressure switch A 15 (EN 124) 827731A
827731B 1,800  MMT Single station Submersible pressure switch B 125 (EN 124) 827731B
827731D 1,800  MMT Single station Submersible pressure switch D 400 (EN 124) 827731D

Type of wastewater: wastewater without sewage

Pump: GTF 600

Installation depth Type of system Level measurement instrument Load class Item no.
824811B 800  MMT Twin pump station Submersible pressure switch B 125 (EN 124) 824811B
824811D 800  MMT Twin pump station Submersible pressure switch D 400 (EN 124) 824811D
824821B 1,300  MMT Twin pump station Submersible pressure switch B 125 (EN 124) 824821B
824821D 1,300  MMT Twin pump station Submersible pressure switch D 400 (EN 124) 824821D
824831B 1,800  MMT Twin pump station Submersible pressure switch B 125 (EN 124) 824831B
824831D 1,800  MMT Twin pump station Submersible pressure switch D 400 (EN 124) 824831D
825810B 800  MMT Single station Float switch B 125 (EN 124) 825810B
825810D 800  MMT Single station Float switch D 400 (EN 124) 825810D
825811B 800  MMT Single station Submersible pressure switch B 125 (EN 124) 825811B
825811D 800  MMT Single station Submersible pressure switch D 400 (EN 124) 825811D
825820B 1,300  MMT Single station Float switch B 125 (EN 124) 825820B
825820D 1,300  MMT Single station Float switch D 400 (EN 124) 825820D
825821B 1,300  MMT Single station Submersible pressure switch B 125 (EN 124) 825821B
825821D 1,300  MMT Single station Submersible pressure switch D 400 (EN 124) 825821D
825830B 1,800  MMT Single station Float switch B 125 (EN 124) 825830B
825830D 1,800  MMT Single station Float switch D 400 (EN 124) 825830D
825831B 1,800  MMT Single station Submersible pressure switch B 125 (EN 124) 825831B
825831D 1,800  MMT Single station Submersible pressure switch D 400 (EN 124) 825831D

Pump: GTF 1200

Installation depth Type of system Level measurement instrument Load class Item no.
826811B 800  MMT Twin pump station Submersible pressure switch B 125 (EN 124) 826811B
826811D 800  MMT Twin pump station Submersible pressure switch D 400 (EN 124) 826811D
826821B 1,300  MMT Twin pump station Submersible pressure switch B 125 (EN 124) 826821B
826821D 1,300  MMT Twin pump station Submersible pressure switch D 400 (EN 124) 826821D
826831B 1,800  MMT Twin pump station Submersible pressure switch B 125 (EN 124) 826831B
826831D 1,800  MMT Twin pump station Submersible pressure switch D 400 (EN 124) 826831D
827810B 800  MMT Single station Float switch B 125 (EN 124) 827810B
827810D 800  MMT Single station Float switch D 400 (EN 124) 827810D
827811B 800  MMT Single station Submersible pressure switch B 125 (EN 124) 827811B
827811D 800  MMT Single station Submersible pressure switch D 400 (EN 124) 827811D
827820B 1,300  MMT Single station Float switch B 125 (EN 124) 827820B
827820D 1,300  MMT Single station Float switch D 400 (EN 124) 827820D
827821B 1,300  MMT
