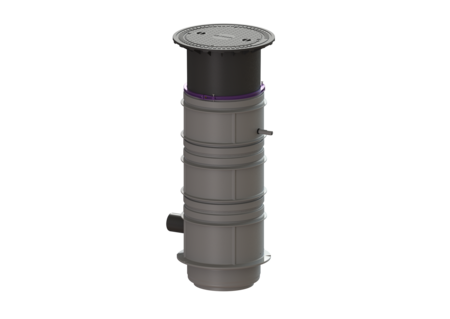

Pumping station Aquapump Medium

Mono, STZ 1000, 1800-2250 mm, A

PDF product data sheet

The pumping station for faecal wastewater is suitable for underground installation and is equipped with a non-return flap for the pressure pipe. The PE-LLD tank is resistant to aggressive media and can be delivered with load class A, B or D covers. The pump with macerator ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for ventilation and cable duct.

  • height-adjustable upper section

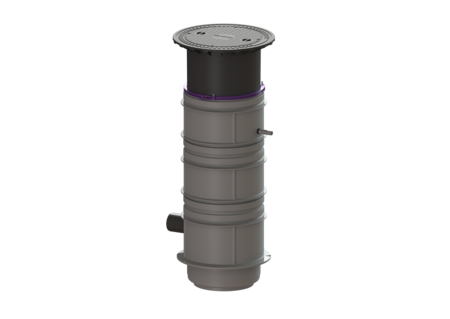

Item no. 827730A
GTIN 4026092077719
Price group 60

Pumping station Aquapump Medium Mono, STZ 1000, 1800-2250 mm, A
The pumping station for faecal wastewater is suitable for underground installation and is equipped with a non-return flap for the pressure pipe. The PE-LLD tank is resistant to aggressive media and can be delivered with load class A, B or D covers. The pump with macerator ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for ventilation and cable duct. Type of wastewater: wastewater with and without sewage Installation situation: underground installation Version: Type of system: Single station Installation: Wet installation Pump control: Float switch Backflow preventer: integrated Access steps: no Passage seal for ventilation pipe (DN): 100 mm Passage seal for conduit pipe (DN): 100 mm General characteristics: Standard: EN 12050-1 Dimensions: Length: 1,000 mm Width: 806 mm Diameter: 809 mm Clear width (LW): 600 Tank: Number of inlets: 1 ST Inlet nominal size (DN): 150 Distance pipe bottom inlet to tank bottom: 400 mm Distance from centre of outlet pipe to tank bottom: 1,394 mm Distance from centre of inlet pipe to tank bottom: 475 mm Connection conduit pipe (DN): 100 mm Pumping volume: 30 l Pressure pipe connection: horizontal Pressure pipe connection (DN): 32 mm Pressure pipe connection (OD): 40 mm Installation depth: 1,800 - 2,250 mm Venting connection (DN): 100 mm Groundwater resistant from lower edge of base section: 2,500 mm Clear width of tank (LW): 600 mm Chamber system: LW 600 Coverage features: Type of cover: Round cover plate Load class: A 15 (EN 124) Pumping device: Pump: STZ 1000 Number of pumps: 1 Max. pumping capacity: 11.5 m3/h Max. pumping height: 10 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S3 - 50 % Power P1: 1.2 kW Power P2: 0.69 kW Speed: 2,800 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 40 °C Connection type: Schuko (earthed contact) 2-pin Weight: 10 kg Impeller type: Macerator Length of mains cable for pump: 10 m Rated current: 5.2 A Protection class (pump): IP 68 (3m) Protection class: I Insulation class: F Control: Operating voltage: 230 V Mains frequency: 50 Hz Motor protection switch: yes Type of level measurement: mechanical Level measurement instrument: Float switch Alarm sensor: optical probe
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Standard (ATTR-9): EN 12050-1
  • CE marking (ATTR-A5B): yes
  • Country of origin (ATTR-322): DE
  • Area of application (ATTR-264): drainage
  • Pump type (ATTR-265): submersible pump
  • Pump shaft position (ATTR-266): vertical
  • Pump design (ATTR-267): Dry rotor pump
  • Pump hydraulics (ATTR-268): single stage
  • Pump suction characteristic (ATTR-269): non-self-priming
  • Pump drive (ATTR-270): E-motor for alternating current
  • E-motor, type of startup (ATTR-271): direct
  • Pump casing material (ATTR-272): Polymer
  • Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
  • Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
  • Pump electrical connection (ATTR-277): 1/N/PE 230V
  • Startup circuit for three-phase connection or three-phase current (ATTR-278):
  • Motor pump shaft (ATTR-279): continuous
  • Shaft seal (ATTR-280): RSSR
  • Number of operating pumps (ATTR-281): 1
  • Maximum operating pressure (Pmax) (ATTR-283): 1,000  HPA
  • Minimum speed for speed adjustment (ATTR-284): no speed adjustment
  • Start-up current (ATTR-285): 14.9  AMP
  • Vertical installation (ATTR-286): yes
  • Pump (ATTR-4): STZ 1000
  • Number of pumps (ATTR-181): 1
  • Impeller type (ATTR-8): Macerator
  • Type of fuse required (electrical protection) (ATTR-N3): C 16 A
  • Operating mode (ATTR-10): S3 - 50 %
  • Power P1 (ATTR-F4): 1.2  KWT
  • Power P2 (ATTR-F5): 0.7  KWT
  • Speed (ATTR-F2): 2,800  UMIN
  • Operating voltage (ATTR-131): 230  VLT
  • Mains frequency (ATTR-N4): 50  HTZ
  • Rated current (ATTR-N5): 5.2  AMP
  • Max. pumping capacity (ATTR-F7): 11.5  MQH
  • Max. pumping height (ATTR-F8): 10  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): Schuko (earthed contact) 2-pin
  • Protection class (pump) (ATTR-125): IP 68 (3m)
  • Length of mains cable for pump (ATTR-11): 10  MTR
  • Weight (ATTR-191): 10  KGM
  • Insulation class (ATTR-193): F
  • Net weight (ATTR-A3A): 127,000  KGM
  • Length (ATTR-A6A): 1,000  MMT
  • Width (ATTR-A6B): 806  MMT
  • Diameter (ATTR-107): 809  MMT
  • Clear width (LW) (ATTR-167): 600
  • Volume (ATTR-320): 2.1  MTQ
  • Packaging dimension: length (ATTR-325): 1,200  MMT
  • Packaging dimension: width (ATTR-326): 800  MMT
  • Packaging dimension: height (ATTR-327): 2,220  MMT
  • Number of packages (ATTR-321): 0
  • Pressure pipe connection (ATTR-B7): horizontal
  • Chamber system (ATTR-B8): LW 600
  • Type of system (ATTR-2): Single station
  • Installation (ATTR-164): Wet installation
  • Backflow preventer (ATTR-165): integrated
  • Pump control (ATTR-134): Float switch
  • Access steps (ATTR-182): no
  • Passage seal for ventilation pipe (DN) (ATTR-183): 100  MMT
  • Passage seal for conduit pipe (DN) (ATTR-184): 100  MMT
  • Clear width of tank (LW) (ATTR-B14): 600  MMT
  • Number of inlets (ATTR-B1B): 1  PCE
  • Inlet nominal size (DN) (ATTR-B1CA): 150  MMT
  • Distance from centre of inlet pipe to tank bottom (ATTR-B6): 475  MMT
  • Distance pipe bottom inlet to tank bottom (ATTR-B1D): 400  MMT
  • Distance from centre of outlet pipe to tank bottom (ATTR-B15E): 1,394  MMT
  • Installation depth (ATTR-B2_VB): 1,800  MMT
  • Connection conduit pipe (DN) (ATTR-B3): 100  MMT
  • Venting connection (DN) (ATTR-B4): 100  MMT
  • Pressure pipe connection (DN) (ATTR-B17): 32  MMT
  • Pressure pipe connection (OD) (ATTR-B18): 40  MMT
  • Pumping volume (ATTR-B10): 30  LTR
  • Groundwater resistant from lower edge of base section (ATTR-B12): 2,500  MMT
  • Operating voltage (ATTR-S13): 230  VLT
  • Mains frequency (ATTR-S14): 50  HTZ
  • Alarm sensor (ATTR-S1): optical probe
  • Type of level measurement (ATTR-7A): mechanical
  • Level measurement instrument (ATTR-7B): Float switch
  • Motor protection switch (ATTR-172): yes
  • Type of cover (ATTR-A21): Round cover plate
  • Load class (ATTR-A2B): A 15 (EN 124)
  • Gross weight (ATTR-A3B): 139  KGM
  • Installation situation (ATTR-1): underground installation
  • Type of wastewater (ATTR-6): wastewater with and without sewage
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Lifting stations
  • Product type (M-ATTR-003): Pumping station
  • Product family (M-ATTR-004): Aqualift
  • Product name (M-ATTR-005): Aqualift F
  • - (ATTR-370):
