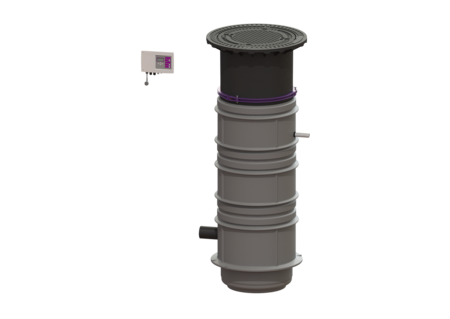

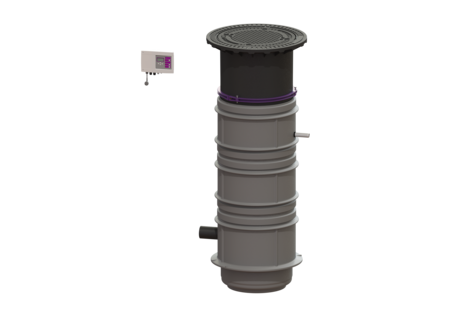

Pumping station Aquapump Medium

Duo, GTF 600, 1800-2250 mm, D

KESSEL Pumping station Aquapump Medium, Duo, wastewater without sewage, load class D 400, installation depth 1800 - 2250 mm, height 50 mm, cover length 680 mm, max. inrush current 6,9 A, with 2 submersible GTF 600 pumps, level measurement pneumatic

  • Maximum safety
  • LW 600 chamber system suitable for underground installation
  • Preconfigured in the factory
Item no. 824831D
GTIN 4026092045206
Price group 60

Pumping station Aquapump Medium Duo, GTF 600, 1800-2250 mm, D
The pumping station without sewage wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank is an LW 600 chamber system made of permanently resistant polymer (PE-LLD) with open pump tank and universal connection options. Quick-release closures enable the integrated components to be removed easily. Variant Type of system: duo pump Passage seal for conduit pipe (DN): 100 Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backwater protection: integrated Pressure pipe connection: horizontal Chamber system: LW 600 General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Modular set for assembly on site System type: Duo Dimensions Net weight: 176 kg Gross weight: 183 kg Groundwater resistant from lower edge of base section: 2000 mm Installation depth: 1800 - 2250 mm Vertical adjustment: vertically adjustable upper section Length: 806 mm Width: 806 mm Packaging dimension: length: 1200 mm Packaging dimension: width: 800 mm Packaging dimension: height: 2220 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 100 Venting connection (DN): 100 Distance from centre of outlet pipe to tank bottom: 1394 mm Distance pipe bottom inlet to tank bottom: 400 mm Distance from centre of inlet pipe to tank bottom: 455 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Clear width of tank (LW): 600 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Round cover plate Cover material: Grey iron with concrete filling Colour of cover: black Width of cover: 680 mm Height of cover: 50 mm Length of cover: 680 mm Locking: unlocked Load class: D 400 (EN 124) Pumping device Pump: GTF 600 Number of pumps: 2 Weight: 6 kg Connection type: coded plug Rated current: 2,7 A Length of mains cable for pump: 10 m Protection class: I Insulation class: F Cos phi - power factor: 0,91 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 12 m³/h Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: Submersible pressure switch Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 2,7 A
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Splash guard set for optical probe 28706 Show
Control unit Comfort Duo 230V 28746 Show
One-handed closure for backflow preventer 680018 Show
Battery 9 V block 680034 Show
Cover plate Class D, grey cast iron 680059 Show
Seal for pressure pipe connection 680067 Show
Pressure hose Sold by the metre, 6x4 mm 100 680071 Show
Submersible pressure switch without hose 680108 Show
Clamping ring for upper sections d: 600 mm 680276 Show
Riser 1800-2250 mm, from 02/2016 680451 Show
Backflow preventer with non-return flap 680457 Show
Pump connection for pumping stations, from 01/2016 680476 Show
Pump connection Duo, suitable for pumping stations 680480 Show
Seal set 2 non-return flaps, 4 seals 680491 Show
One-handed closure for threaded connection 680698 Show
Sensor clamp for level sensor & subm. press. switch 680729 Show
Screw set for intake cage, GTF 500 680769 Show
Replacement pump GTF 600 without float switch 680881 Show
Impeller GTF 600, free passage 30 mm 680887 Show
Spiral housing GTF 600, free passage 30 mm 680888 Show
Pump stand GTF 600, free passage 30 mm 680889 Show
Adapter Set optical probe 80892 Show
Optical probe with 3 adap. 15 m 80988 Show
Seal for pipe penetration, DN 100 850117 Show
Seal for upper sections d: 600 mm 860116 Show
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): underground installation
  • Load class (belastungsklasse): D 400 (EN 124)
  • Pump (pumpe): GTF 600
  • Installation depth (einbautiefe): 1,800  mm
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Inlet nominal size (DN) (zulauf_nennweite_dn): 100  mm
