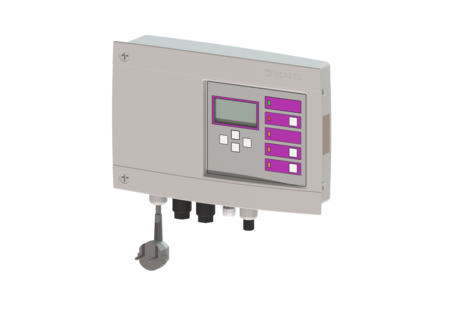

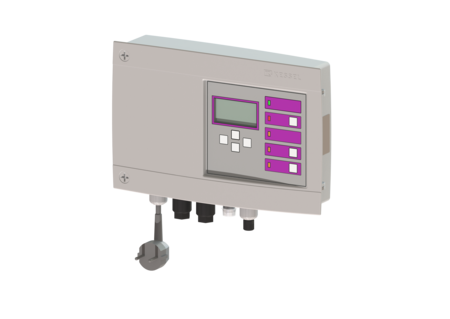

Control unit Comfort
Duo, 230 V
Plug-in ready control unit with visual and acoustic warning device
| Item no. | 28746 |
|---|---|
| GTIN | 4026092052242 |
| Price group | 20 |
Control unit Comfort Duo, 230 V
Plug-in ready control unit with visual and acoustic warning device Variant Type of system: duo pump General characteristics Colour: grey Dimensions Net weight: 2,34 kg Gross weight: 2,71 kg Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Pumping device Type of fuse required (electrical protection): C 16 A Control Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Conformity |
