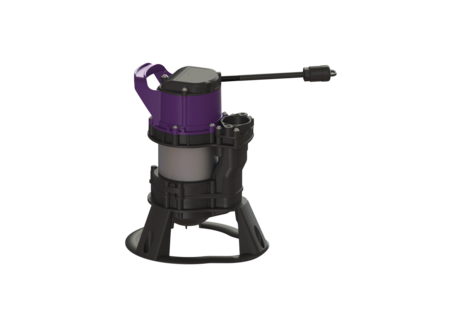

Replacement pump GTF 600

without float switch

PDF product data sheet

Replacement pump without float switch for faecal-free wastewater

Item no. 680881
GTIN 4026092086384
Price group 90

    Replacement pump GTF 600 without float switch
    Replacement pump without float switch for faecal-free wastewater General characteristics Type of wastewater: without sewage Dimensions Net weight: 6,55 kg Gross weight: 6,94 kg Packaging dimension: width: 241 mm Packaging dimension: height: 382 mm Packaging dimension: length: 276 mm Pumping device Pump control: GTF 600 Rated current: 2,9 A Self-diagnosis system (SDS): I Protection class control unit: IP 68 Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 8 m Speed: 2750 U/min Power P1: 0,65 kW Power P2: 0,4 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Control Mains frequency: 50 Hz Operating voltage: 230 V
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    		Screw set for intake cage, GTF 500 680769 Show
    Impeller GTF 600, free passage 30 mm 680887 Show
    Spiral housing GTF 600, free passage 30 mm 680888 Show
    Pump stand GTF 600, free passage 30 mm 680889 Show
    • Type of wastewater (abwasserart_de): without sewage
