Lifting station Aqualift F XL

The powerful version for commercial, industrial and communal applications.

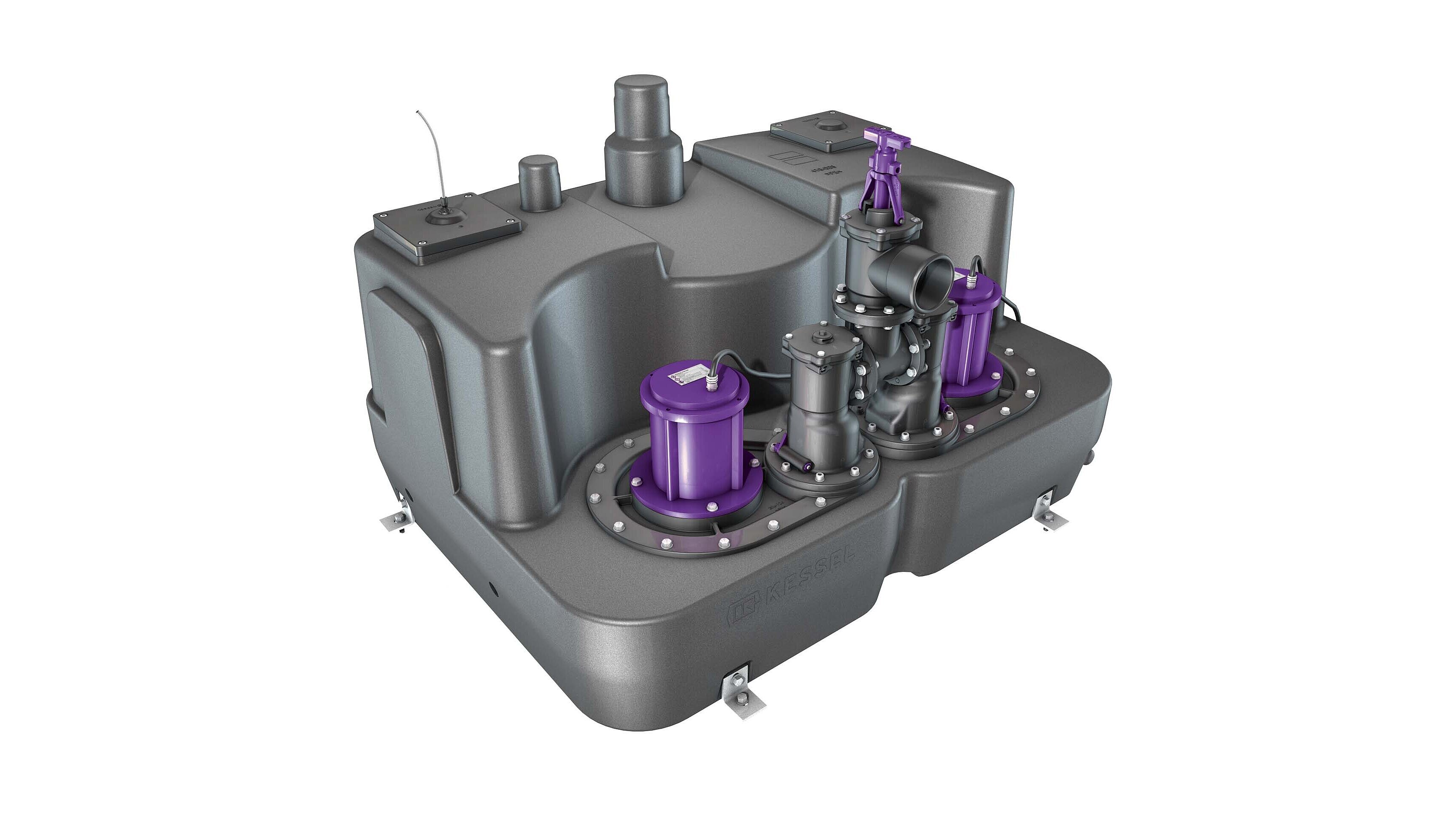

Lifting station Aqualift F XL 300l

The Aqualift F XL is a powerful lifting station for commercial, industrial and communal areas. It is ideal for lifting rainwater that occurs below the backwater level or for use downstream of a separator. However, it can also be used for wastewater with sewage. All components, such as tanks and pumps, are modular in design and can be used in any combination.

The Aqualift F XL can be combined with three different tanks with a capacity of 200, 300 or 450 litres. It is also available with pumps in different performance classes and as a Mono or Duo system for different requirements.

Advantages

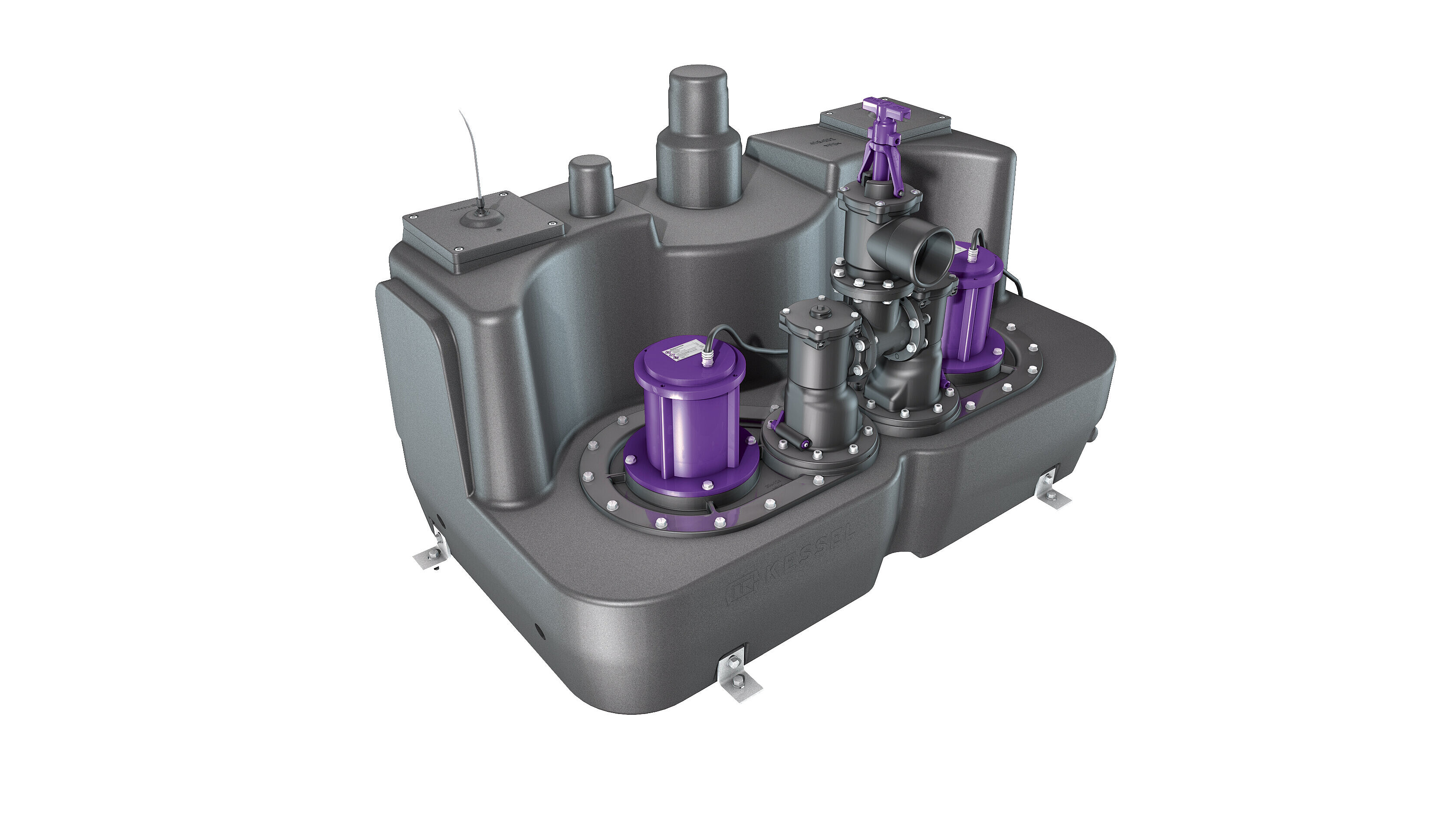

Lifting station Aqualift F XL 200l

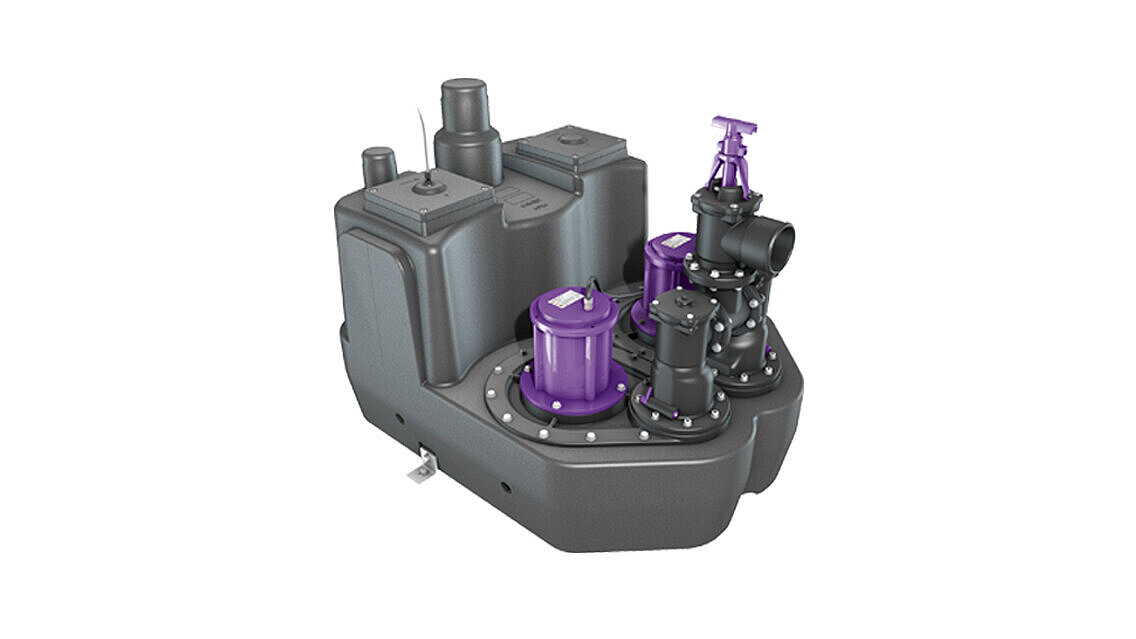

Lifting station Aqualift F XL 450l

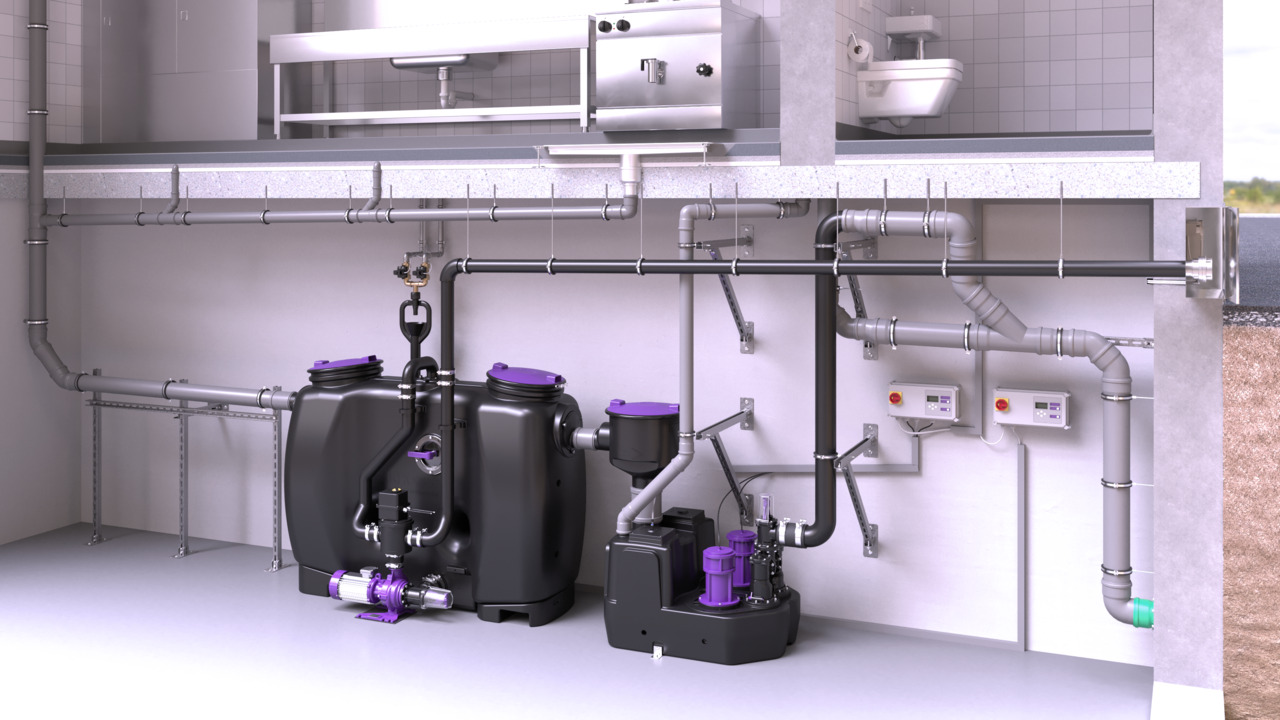

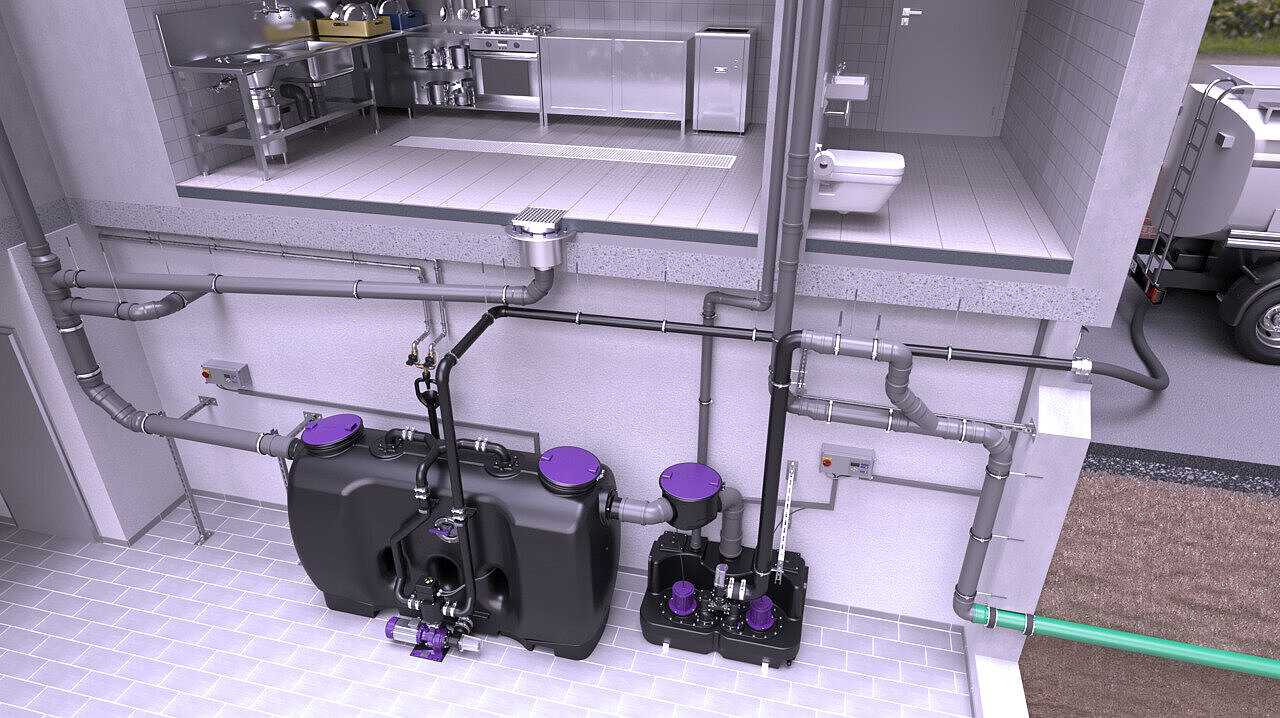

Installation diagram for Aqualift F XL downstream of a grease separator
Pumping performance diagram for pump SPF1400/1500/3000/4500/5500
Comfort Aqualift control unit Duo

Input power and control

The Aqualift F XL has powerful pumps in the versions S1 and/or S3 with a wide range of applications from an input power of 1,400 W to 5,500 W, a sensor control and a Comfort control unit with the self-diagnosis system SDS.

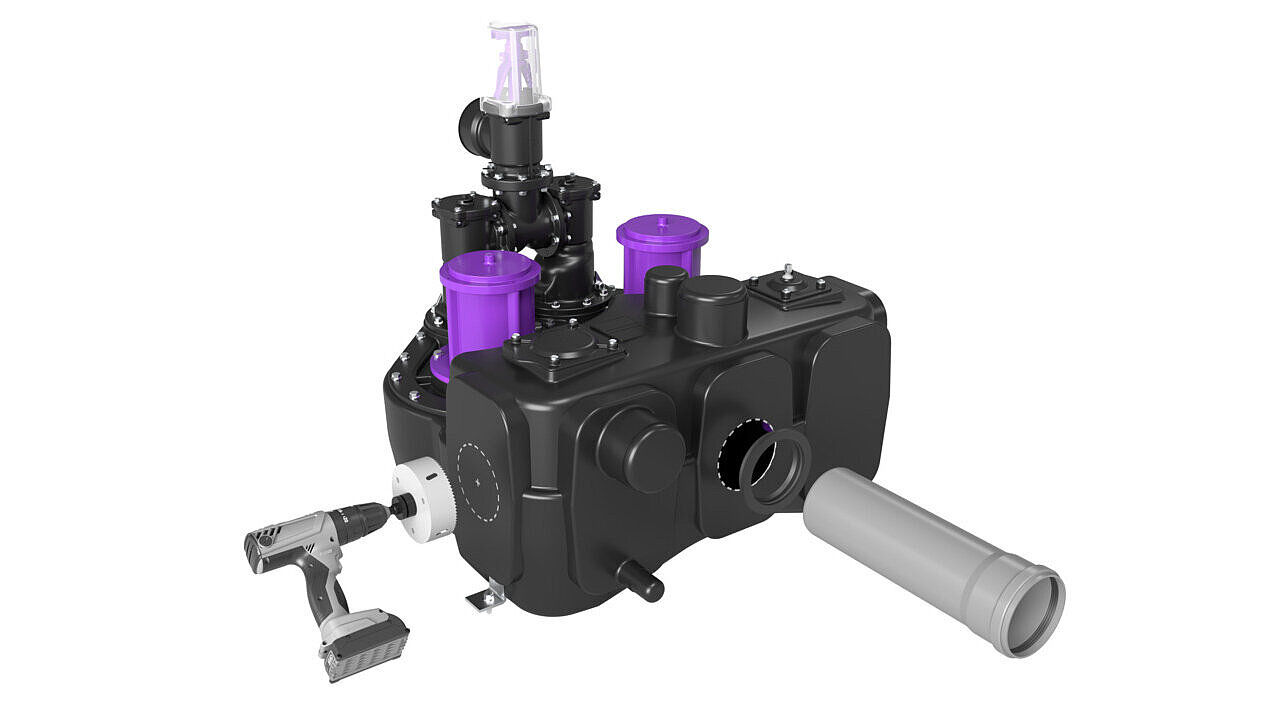

Aqualift F XL, variable drilling options

Variable

The Aqualift F XL offers variable inlet connection sizes of DN 100 to DN 150 and the option of adding further inlet sizes of DN 50 to DN 200 on the pre-scored areas on the sides and back.

Lifting station Aqualift F XL

Tank volume: 200

Type of system: Single station

Operating voltagePumpOperating modeShut-off valve Item no.
11000 230  VLT SPF 1400 S3 - 50 % without shut-off valve 11000
Show
11002 230  VLT SPF 1400 S3 - 50 % Shut-off valve made of polymer 11002
Show
11006 400  VLT SPF 1400 S3 - 50 % Shut-off valve made of cast iron 11006
Show
11018 400  VLT SPF 1500 S3 - 50 % without shut-off valve 11018
Show
11020 400  VLT SPF 1500 S3 - 50 % Shut-off valve made of polymer 11020
Show
11024 400  VLT SPF 1500 S3 - 50 % Shut-off valve made of cast iron 11024
Show
11036 400  VLT SPF 3000 S3 - 50 % without shut-off valve 11036
Show
11038 400  VLT SPF 3000 S3 - 50 % Shut-off valve made of polymer 11038
Show
11042 400  VLT SPF 3000 S3 - 50 % Shut-off valve made of cast iron 11042
Show
11059 400  VLT SPF 4500 S3 - 50 % -11059
Show
11061 400  VLT SPF 4500 S3 - 50 % Shut-off valve made of cast iron 11061
Show
11072 400  VLT SPF 5500 S3 - 30 % -11072
Show
11074 400  VLT SPF 5500 S3 - 30 % Shut-off valve made of cast iron 11074
Show

Type of system: Twin pump station

Operating voltagePumpOperating modeShut-off valve Item no.
11001 230  VLT SPF 1400 S3 - 50 % without shut-off valve 11001
Show
11003 230  VLT SPF 1400 S3 - 50 % Shut-off valve made of polymer 11003
Show
11007 400  VLT SPF 1400 S3 - 50 % Shut-off valve made of cast iron 11007
Show
11019 400  VLT SPF 1500 S3 - 50 % without shut-off valve 11019
Show
11021 400  VLT SPF 1500 S3 - 50 % Shut-off valve made of polymer 11021
Show
11025 400  VLT SPF 1500 S3 - 50 % Shut-off valve made of cast iron 11025
Show
11037 400  VLT SPF 3000 S3 - 50 % without shut-off valve 11037
Show
11039 400  VLT SPF 3000 S3 - 50 % Shut-off valve made of polymer 11039
Show
11043 400  VLT SPF 3000 S3 - 50 % Shut-off valve made of cast iron 11043
Show
11060 400  VLT SPF 4500 S3 - 50 % -11060
Show
11062 400  VLT SPF 4500 S3 - 50 % Shut-off valve made of cast iron 11062
Show
11073 400  VLT SPF 5500 S3 - 30 % -11073
Show
11075 400  VLT SPF 5500 S3 - 30 % Shut-off valve made of cast iron 11075
Show
11085 230  VLT SPF 1400 S1 without shut-off valve 11085
Show
11086 230  VLT SPF 1400 S1 Shut-off valve made of polymer 11086
Show
11088 400  VLT SPF 1400 S1 Shut-off valve made of cast iron 11088
Show
11095 400  VLT SPF 1500 S1 without shut-off valve 11095
Show
11096 400  VLT SPF 1500 S1 Shut-off valve made of polymer 11096
Show
11098 400  VLT SPF 1500 S1 Shut-off valve made of cast iron 11098
Show
11105 400  VLT SPF 3000 S1 without shut-off valve 11105
Show
11106 400  VLT SPF 3000 S1 Shut-off valve made of polymer 11106
Show
11108 400  VLT SPF 3000 S1 Shut-off valve made of cast iron 11108
Show
11120 400  VLT SPF 4500 S1 -11120
Show
11121 400  VLT SPF 4500 S1 Shut-off valve made of cast iron 11121
Show

Tank volume: 300

Type of system: Single station

Operating voltagePumpOperating modeShut-off valve Item no.
11009 230  VLT SPF 1400 S3 - 50 % -11009
Show
11011 230  VLT SPF 1400 S3 - 50 % Shut-off valve made of polymer 11011
Show
11015 230  VLT SPF 1400 S3 - 50 % Shut-off valve made of cast iron 11015
Show
11027 400  VLT SPF 1500 S3 - 50 % -11027
Show
11029 400  VLT SPF 1500 S3 - 50 % Shut-off valve made of polymer 11029
Show
11033 400  VLT SPF 1500 S3 - 50 % Shut-off valve made of cast iron 11033
Show
11045 400  VLT SPF 3000 S3 - 50 % -11045
Show
11047 400  VLT SPF 3000 S3 - 50 % Shut-off valve made of polymer 11047
Show
11051 400  VLT SPF 3000 S3 - 50 % Shut-off valve made of cast iron 11051
Show
11064 400  VLT SPF 4500 S3 - 50 % -11064
Show
11066 400  VLT SPF 4500 S3 - 50 % Shut-off valve made of cast iron 11066
Show
11079 400  VLT SPF 5500 S3 - 30 % Shut-off valve made of cast iron 11079
Show

Type of system: Twin pump station

Operating voltagePumpOperating modeShut-off valve Item no.
11010 230  VLT SPF 1400 S3 - 50 % without shut-off valve 11010
Show
11012 230  VLT SPF 1400 S3 - 50 % Shut-off valve made of polymer 11012
Show
11016 230  VLT SPF 1400 S3 - 50 % Shut-off valve made of cast iron 11016
Show
11028 400  VLT SPF 1500 S3 - 50 % without shut-off valve 11028
Show
11030 400  VLT SPF 1500 S3 - 50 % Shut-off valve made of polymer 11030
Show
11034 400  VLT SPF 1500 S3 - 50 % Shut-off valve made of cast iron 11034
Show
11046 400  VLT SPF 3000 S3 - 50 % without shut-off valve 11046
Show
11048 400  VLT SPF 3000 S3 - 50 % Shut-off valve made of polymer 11048
Show
11052 400  VLT SPF 3000 S3 - 50 % Shut-off valve made of cast iron 11052
Show
11065 400  VLT SPF 4500 S3 - 50 % -11065
Show
11067 400  VLT SPF 4500 S3 - 50 % Shut-off valve made of cast iron 11067
Show
11078 400  VLT SPF 5500 S3 - 30 % -11078
Show
11080 400  VLT SPF 5500 S3 - 30 % Shut-off valve made of cast iron 11080
Show
11090 230  VLT SPF 1400 S1 without shut-off valve 11090
Show
11091 230  VLT SPF 1400 S1 Shut-off valve made of polymer 11091
Show
11092 230  VLT SPF 1400 S1 -11092
Show
11100 400  VLT SPF 1500 S1 without shut-off valve 11100
Show
11101 400  VLT SPF 1500 S1 Shut-off valve made of polymer 11101
Show
11103 400  VLT SPF 1500 S1 Shut-off valve made of cast iron 11103
Show
11110 400  VLT SPF 3000 S1 without shut-off valve 11110
Show
11111 400  VLT SPF 3000 S1 Shut-off valve made of polymer 11111
Show
11113 400  VLT SPF 3000 S1 Shut-off valve made of cast iron 11113
Show
11123 400  VLT SPF 4500 S1 -11123
Show
11124 400  VLT SPF 4500 S1 Shut-off valve made of cast iron 11124
Show

Tank volume: 450

Type of system: Twin pump station

Operating voltagePumpOperating modeShut-off valve Item no.
11054 400  VLT SPF 3000 S3 - 50 % without shut-off valve 11054
Show
11055 400  VLT SPF 3000 S3 - 50 % Shut-off valve made of polymer 11055
Show
11057 400  VLT SPF 3000 S3 - 50 % Shut-off valve made of cast iron 11057
Show
11069 400  VLT SPF 4500 S3 - 50 % -11069
Show
11070 400  VLT SPF 4500 S3 - 50 % Shut-off valve made of cast iron 11070
Show
11082 400  VLT SPF 5500 S3 - 30 % -11082
Show
11083 400  VLT SPF 5500 S3 - 30 % Shut-off valve made of cast iron 11083
Show
11115 400  VLT SPF 3000 S1 without shut-off valve 11115
Show
11116 400  VLT SPF 3000 S1 Shut-off valve made of polymer 11116
Show
11118 400  VLT SPF 3000 S1 Shut-off valve made of cast iron 11118
Show
11126 400  VLT SPF 4500 S1 -11126
Show
11127 400  VLT SPF 4500 S1 Shut-off valve made of cast iron 11127
Show
