Pumpfix F backwater pumping station

The unique backwater solution.

More than a backwater valve: Pumpfix F is the only backwater valve that pumps against the backwater. In normal operation, the backwater pumping station continuously disposes of the wastewater via the slope to the sewer, making it energy-neutral. In the event of backwater, the backwater flap closes automatically and when wastewater arises this is pumped against the backwater pressure. The integrated cutting wheel shreds solids and so the Pumpfix F is also suitable for use wastewater containing sewage. It can also drain basement staircases up to 5 m².

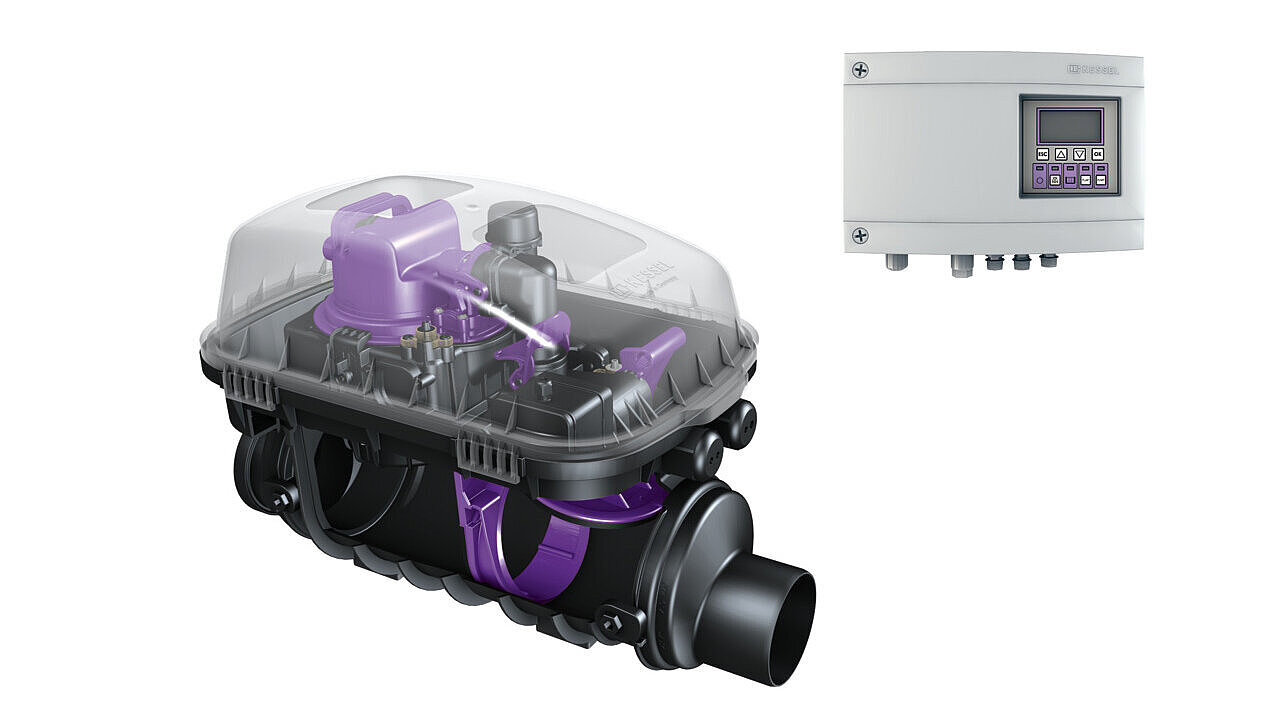

Pumpfix F is available in two versions – for installation in an exposed drainage pipe and for floor slab installation, where you can choose between a black cover or tileable cover.

Advantages  Article overview

How it works

Pumpfix F is the only backwater valve with a hybrid function: In normal operation it uses the natural slope to the sewer. In the event of backwater from the sewer, the pump is automatically switched on in order to reliably drain against the backwater pressure.

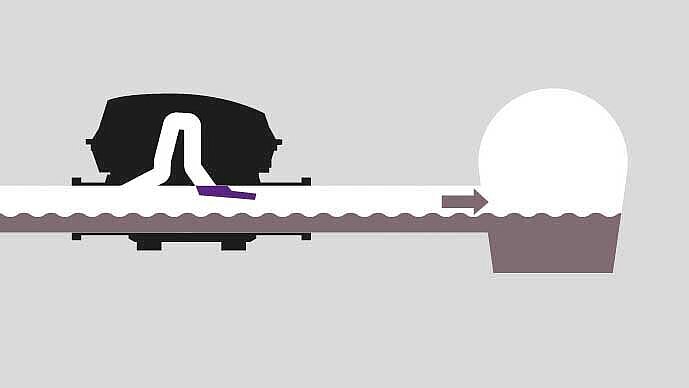

Functional diagram for the Pumpfix F pumping station: 1. Normal operation

Normal operation

Normally, wastewater runs via the natural slope to the sewer.

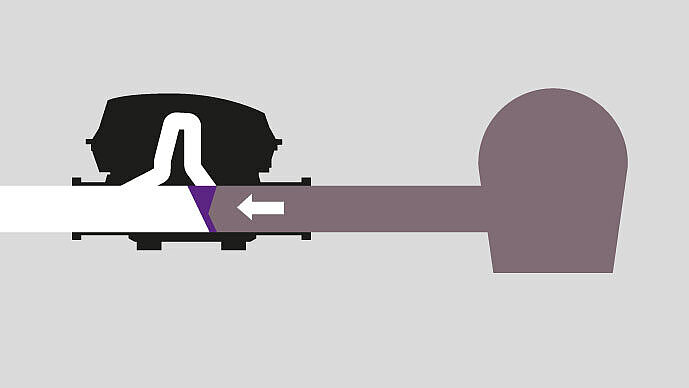

Functional diagram for the Pumpfix F pumping station: 2. Backwater

Backwater protection

Backwater flap is closed.

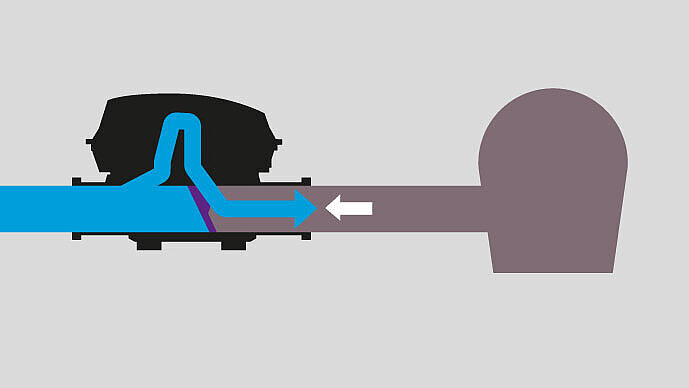

Functional diagram for the Pumpfix F pumping station: 3. Disposal in the event of backwater

Disposal

Wastewater disposal during the backwater phase.

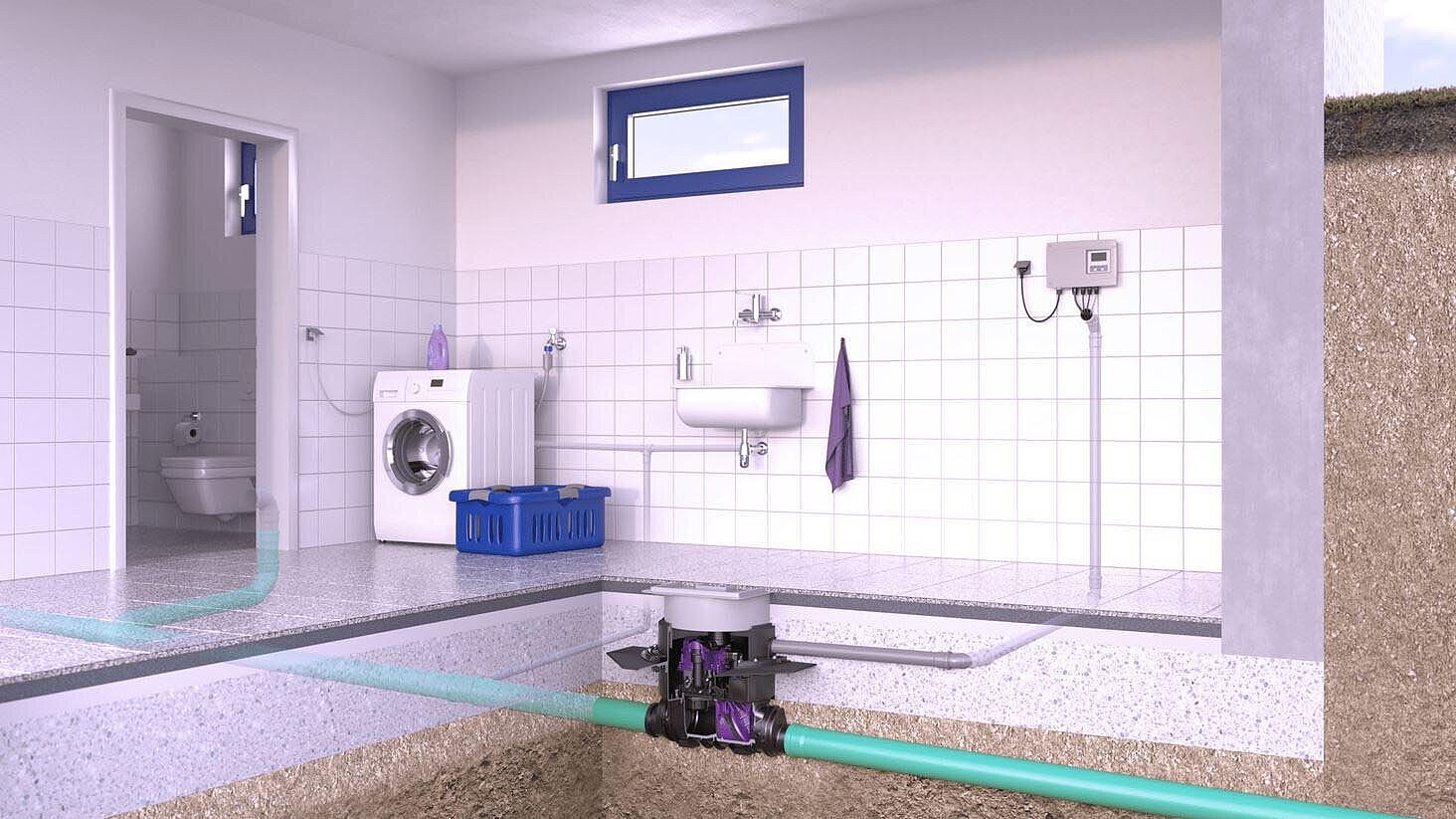

Installation kit for the floor slab

The backwater valve is available for floor slab installation and can also be installed in waterproof concrete by using an extension piece with central flange and an elastomer waterproofing membrane. The integrated drainage function ensures that any surface water that arises, for example due to a pipe break, will be pumped into the sewer despite there being backwater.

Self-diagnosis system

The system has a plug-in ready Comfort control unit with the SDS self-diagnosis system, a display for showing the operating status and maintenance information as well as a connection option for centralised control systems. It can be connected without the need for an electrician.

Pumpfix F backwater pumping station

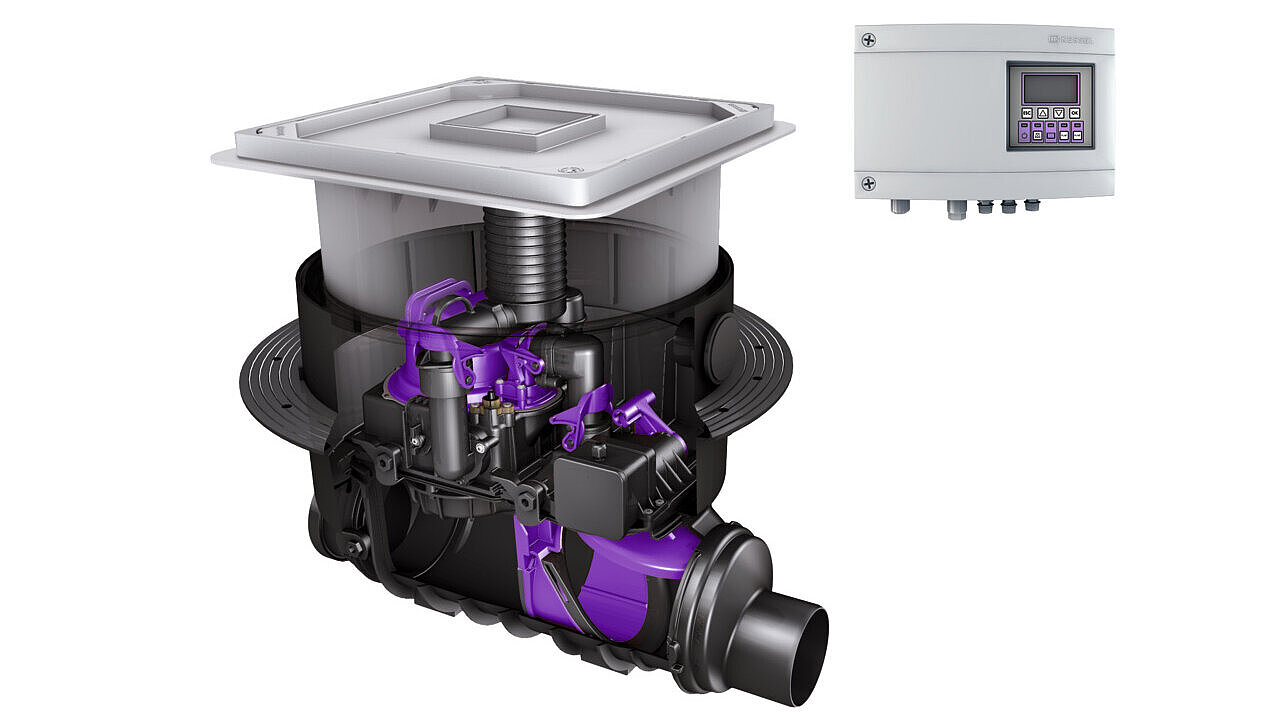

Floor slab installation

  Type of coverNominal size (DN)LengthWidth Item no.
24000S24000S Cover plate with slotted cover 590  mm 590  mm 24000S
Show
24100S24100S Cover plate with slotted cover 100 642  mm 590  mm 24100S
Show
24125S24125S Cover plate with slotted cover 125 645  mm 590  mm 24125S
Show
24150S24150S Cover plate with slotted cover 150 656  mm 590  mm 24150S
Show
24200S24200S Cover plate with slotted cover 200 720  mm 590  mm 24200S
Show

  Type of coverNominal size (DN)LengthWidth Item no.
24100X24100X tileable cover plate 100 642  mm 590  mm 24100X
Show
24125X24125X tileable cover plate 125 645  mm 590  mm 24125X
Show
24150X24150X tileable cover plate 150 656  mm 590  mm 24150X
Show
24200X24200X tileable cover plate 200 720  mm 590  mm 24200X
Show

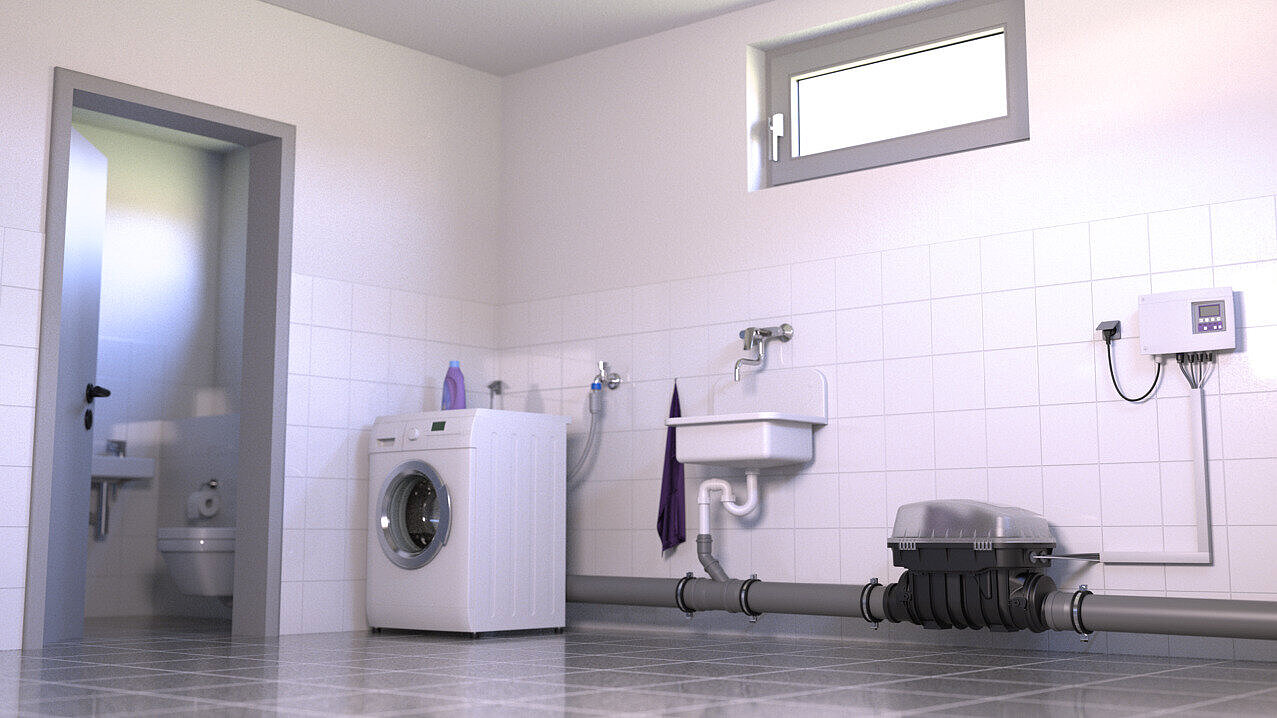

Installation in an exposed drainage pipe

  Nominal size (DN)LengthWidth Item no.
2400024000 542  mm 350  mm 24000
Show
2410024100 100 643  mm 350  mm 24100
Show
2412524125 125 645  mm 350  mm 24125
Show
2415024150 150 656  mm 350  mm 24150
Show
2420024200 200 720  mm 350  mm 24200
Show

Shell and Technology Kits

  Type of coverInstallation situation Item no.
24000-RBK
Protective cover exposed drainage pipe 24000-RBK
Show
24000S-RBK
Cover plate with slotted cover floor slab installation 24000S-RBK
Show
24000X-RBK
tileable cover plate floor slab installation 24000X-RBK
Show

  Title Item no.
20000-TK20000-TKTechnology kit for Ecolift and Pumpfix F20000-TK
Show
