Backwater pump station, Pumpfix F

for Ecolift and Pumpfix F

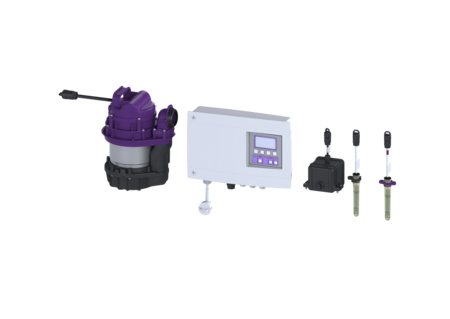

Technology kit for Ecolift and Pumpfix Consisting of control unit, pump, motor and 2 optical probes. Cable length: 5 m

  • Backwater pumping station: uses the natural fall to the sewer - pump is only used for backwater
  • Flexible installation, different covers with drain function available for installation in the floor slab
  • Quiet and energy-saving
Item no. 20000-TK
GTIN 4026092097151
Price group 30

    Backwater pump station, Pumpfix F for Ecolift and Pumpfix F
    Technology kit for Ecolift and Pumpfix Consisting of control unit, pump, motor and 2 optical probes. Cable length: 5 m Dimensions Net weight: 15 kg Gross weight: 15,45 kg Packaging dimension: width: 420 mm Packaging dimension: height: 340 mm Packaging dimension: length: 420 mm Pumping device Pump control: SPZ 1000 Number of pumps: 1 Weight: 10 kg Connection type: coded plug Rated current: 5,2 A Length of mains cable for pump: 5 m Self-diagnosis system (SDS): I Insulation class: F Cos phi - power factor: 0,97 Protection class control unit: IP 68 (3m/48h) DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Control Standby power: 5 W Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class probe: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: yes GSM interface: no USB interface: no Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Max. permissible switching frequency: Comfort
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Control unit (schaltgeraet): Comfort
