Backwater pump station, Pumpfix F

DN 100, Floor slab, black

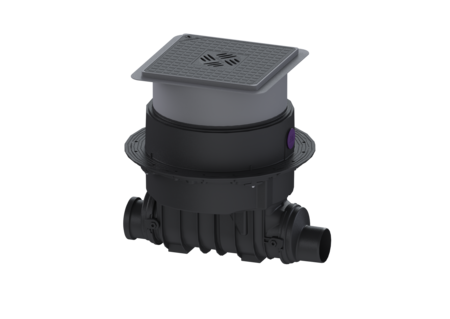

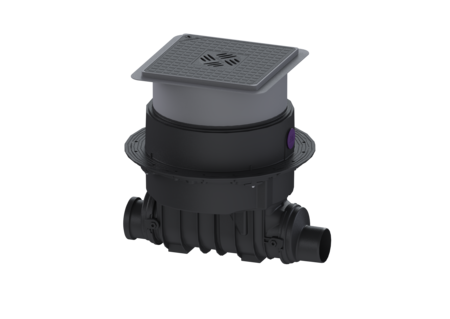

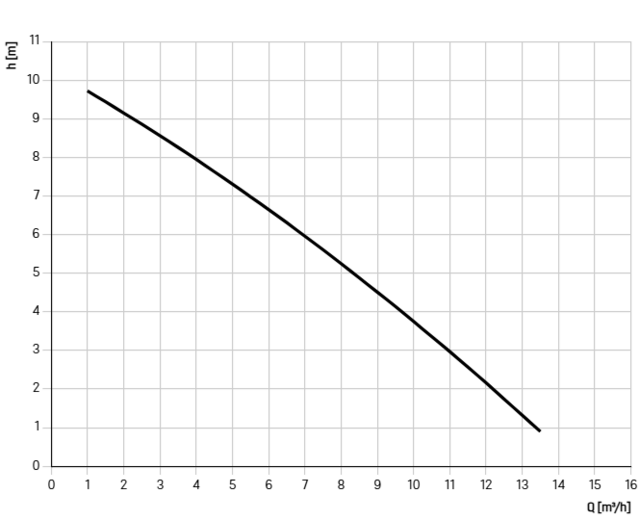

KESSEL Backwater pump station, Pumpfix F, wastewater with sewage, with a submersible SPZ 1000 pump, nominal size (DN) 100, type of cover Cover plate with slotted cover, locking Lock & Lift, level measurement optical probe

  • Backwater pumping station: uses the natural fall to the sewer - pump is only used for backwater
  • Flexible installation, different covers with drain function available for installation in the floor slab
  • Quiet and energy-saving
Item no. 24100S
GTIN 4026092046524
Price group 30

Backwater pump station, Pumpfix F DN 100, Floor slab, black
The premium backwater pumping station for faecal and non-faecal wastewater is equipped with a pump and a motor-driven closure system. The pipe cross-section is normally open. In case of backwater, the motor-driven closure system is closed automatically. During the backwater phase, the water drains via the pump with integrated macerator. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Variant Emergency closure: yes Pump control: Control unit Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 General characteristics Colour: black Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-388 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Dimensions Net weight: 29,2 kg Gross weight: 32 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Length: 642 mm Width: 590 mm Packaging dimension: length: 785 mm Packaging dimension: width: 615 mm Packaging dimension: height: 550 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: L 15 (EN 1253-1) Odour trap: Multistop Pumping device Pump: SPZ 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Motor connection cable type: ÖPVC-JB/OB 300/500 V/3 x 0,75 mm2 mm² Sensor connection cable type: ÖPVC-JB/OB 300/500 V/3 x 0,75 mm2 mm² Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class control unit: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 5,2 A
  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162 Show
Clearance code for potential-free contact 80077 Show
Cable accessories Extension for probe 80889 Show
Cable accessories Extension for motor 80890 Show
Cable accessories Extension for pump 80891 Show
Extension section H: 200 mm 83070 Show
Extension section H: 234 mm, with flange and mating flange 83073 Show
Extension section H: 360 mm, with central flange 83075 Show
  Title Item no.
Lockable cover Inlet side 28054 Show
Lockable cover Outlet side 28056 Show
Ventilation with activated carbon filter 28060 Show
Active carbon filter 5 each 28061 Show
Control unit Comfort 230 V, Ecolift, Pumpfix F from 01/2011 28071 Show
Knife replacement set KTP 1000 / SPZ 1000 28075 Show
Replacement pump KTP/SPZ 1000 230 V, cable length 5 m 28351 Show
One-handed closure for backflow preventer 680018 Show
Battery 9 V block 680034 Show
Drain connection DN 70, for Pumpfix, Ecolift, Aqualift F 680075 Show
Flap holder for motor-driven and mechanical flap 680101 Show
Pressure pipe connection with backflow preventer 680104 Show
Seal for upper section, from 07/2014 680150 Show
Seal for cover plate, System 330 mm 686114 Show
Seal set Pumpfix, Ecolift 70319 Show
Backwater flap motor-driven, with flap holder 80038 Show
Slide-in flap housing for motorised flap with flap holder 80039 Show
Drive motor plug-in ready, 5 m cable 80076 Show
Spare part set, optical probe 5 m cable 80888 Show
Adapter Set optical probe 80892 Show
Cover plate 366 x 366 mm w. flat drain body, Multistop, black 830046 Show
Upper section system 400 Lockable, silver-grey 830065 Show
Spigot DN 100, with seal 83081 Show
Socket DN 100, with seal 83085 Show
  • Nominal size (DN) (nennweite): 100
  • Type of wastewater (abwasserart_de): with sewage
  • Control unit (schaltgeraet): Comfort
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241793
  • Installation situation (einbausituation): floor slab installation
  • Type of cover (abdeckungsart): Cover plate with slotted cover
  • Length (laenge): 642  mm
  • Width (breite): 590  mm
