H: 234 mm, with flange and counter-flange

PDF product data sheet

Extension section with flange and mating flange suitable for systems for floor slab installation. For connection to a membrane on site. Including 16 screws. Maintenance capability must be considered in case of deeper installation.

Item no. 83073
GTIN 4026092070062
Discount group 6

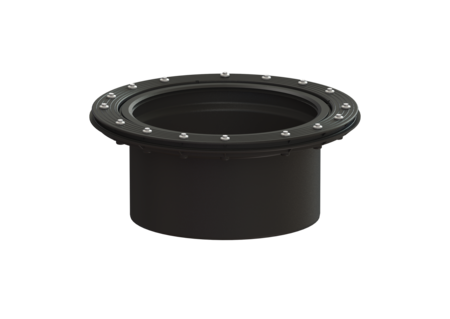

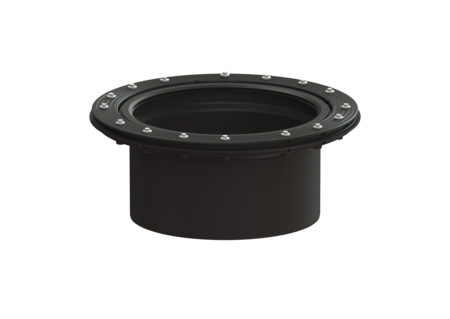

Extension section H: 234 mm, with flange and counter-flange
Extension section with flange and mating flange suitable for systems for floor slab installation. For connection to a membrane on site. Including 16 screws. Maintenance capability must be considered in case of deeper installation. Version: Seal: Lip seal General characteristics: Material: Polymer Colour: black Dimensions: Diameter: 588 mm Clear width (LW): 400
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Seal (ATTR-114): Lip seal
  • Material (ATTR-101): Polymer
  • Brand (M-ATTR-001): KESSEL
  • Colour (ATTR-102): black
  • Clear width (LW) (ATTR-167): 400
  • Country of origin (ATTR-322): DE
  • Net weight (ATTR-A3A): 5.7  KGM
  • Gross weight (ATTR-A3B): 5.8  KGM
  • Diameter (ATTR-107): 588  MMT
  • Volume (ATTR-320): 0.1  MTQ
  • Packaging dimension: length (ATTR-325): 590  MMT
  • Packaging dimension: width (ATTR-326): 590  MMT
  • Packaging dimension: height (ATTR-327): 234  MMT

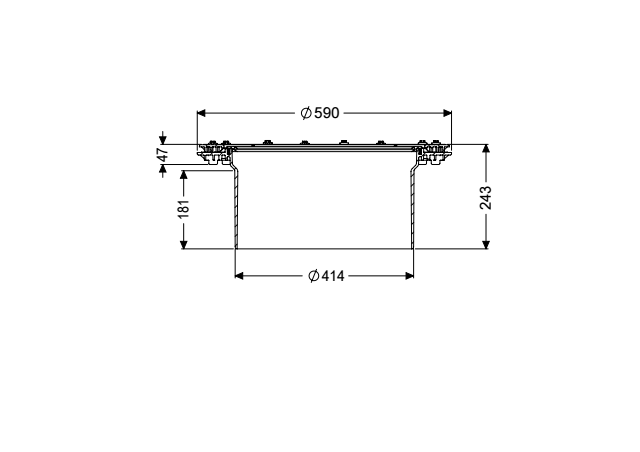

  • Dimensions (ATTR-323): 590X590X234MM
  • Number of packages (ATTR-321): 0
