Backwater pump station, Pumpfix F

DN 200, exposed

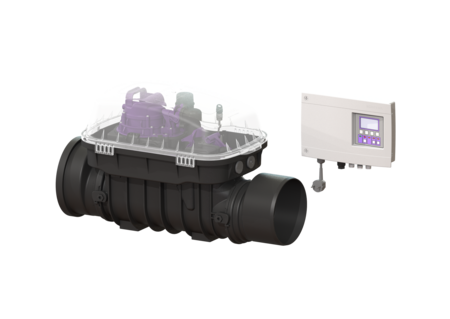

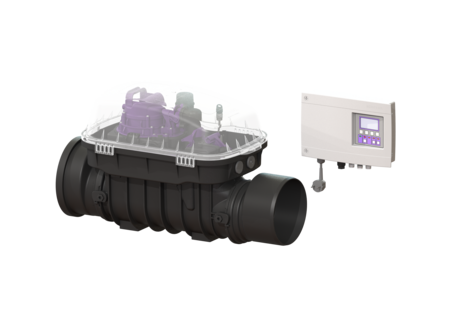

KESSEL Backwater pump station, Pumpfix F, wastewater with sewage, with a submersible SPZ 1000 pump, nominal size (DN) 200, type of cover Protective cover, locking Clip closure, level measurement optical probe

  • Backwater pumping station: uses the natural fall to the sewer - pump is only used for backwater
  • Flexible installation, different covers with drain function available for installation in the floor slab
  • Quiet and energy-saving
Item no. 24200
GTIN 4026092046517
Price group 30

Backwater pump station, Pumpfix F DN 200, exposed
The premium backwater pumping station for faecal and non-faecal wastewater is equipped with a pump and a motor-driven closure system. The pipe cross-section is normally open. In case of backwater, the motor-driven closure system is closed automatically. During the backwater phase, the water drains via the pump with integrated macerator. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Variant Emergency closure: yes Pump control: Control unit Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 General characteristics Colour: black Nominal size (DN): 200 Outer diameter (OD): 200 mm Note on nominal size: Hydraulics correspond to DN 150 Type of wastewater: with sewage Installation situation: exposed drainage pipe Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-388 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Dimensions Net weight: 20 kg Gross weight: 25,5 kg Vertical drop between inlet and outlet: 9 mm Installation depth: 500 - 640 mm Length: 720 mm Width: 350 mm Height: 422 mm Packaging dimension: length: 785 mm Packaging dimension: width: 385 mm Packaging dimension: height: 465 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: Protective cover Cover material: Polymer Colour of cover: transparent Width of cover: 350 mm Height of cover: 165 mm Length of cover: 542 mm Locking: Clip closure Pumping device Pump: SPZ 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Motor connection cable type: ÖPVC-JB/OB 300/500 V/3 x 0,75 mm2 mm² Sensor connection cable type: ÖPVC-JB/OB 300/500 V/3 x 0,75 mm2 mm² Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class control unit: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 5,2 A
  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162 Show
Clearance code for potential-free contact 80077 Show
Cable accessories 80889 Show
Cable accessories 80890 Show
Cable accessories 80891 Show
  Title Item no.
Pump cover inlet side 28052 Show
Pumpfix F Premium Komf. Cover outlet s. 28056 Show
Ventilation with activated carbon filter 28060 Show
Active carbon filter 5 each 28061 Show
Control unit Comfort 230V, from 01/2011 28071 Show
Replacement pump KTP/SPZ 1000 230 V, cable length 5 m 28351 Show
One-handed closure for backflow preventer 680018 Show
Battery 9 V block 680034 Show
Flap holder for motor-driven and mechanical flap 680101 Show
Pressure pipe connection with backflow preventer 680104 Show
Seal set Pumpfix, Ecolift 70319 Show
Motor-driven backwater flap Premium 80038 Show
Slide-in flap housing for motorised flap with flap holder 80039 Show
Drive motor plug-in ready, 5 m cable 80076 Show
Spare part set optical probe 80888 Show
FKA Staufix Protective cover 83031 Show
Upper section 83032 Show
Spigot DN 200, with seal 83084 Show
Socket DN 200, with seal 83088 Show
CAD Data
Test Reports and Certificates
Declaration of Performance
Declaration of Conformity
  • Nominal size (DN) (nennweite): 200
  • Control unit (schaltgeraet): Comfort
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241793
  • Installation situation (einbausituation): exposed drainage pipe
  • Type of wastewater (abwasserart_de): with sewage
  • Length (laenge): 720  mm
  • Width (breite): 350  mm
