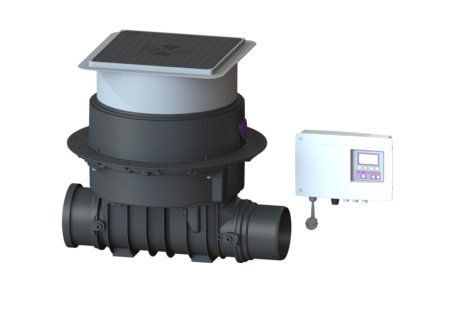

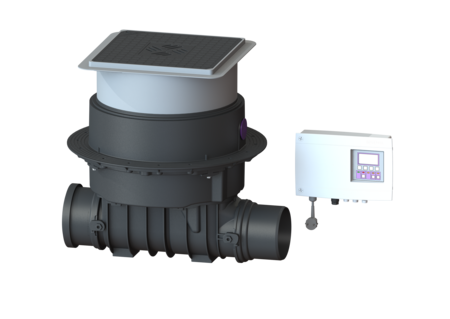

Backwater pump station, Pumpfix F
DN 150, Floor slab, black
KESSEL Backwater pump station, Pumpfix F, wastewater with sewage, with a submersible SPZ 1000 pump, nominal size (DN) 150, type of cover Cover plate with slotted cover, locking Lock & Lift, level measurement optical probe
- Backwater pumping station: uses the natural fall to the sewer - pump is only used for backwater
- Flexible installation, different covers with drain function available for installation in the floor slab
- Quiet and energy-saving
Item no. | 24150S |
---|---|
GTIN | 4026092046562 |
Price group | 30 |
Backwater pump station, Pumpfix F DN 150, Floor slab, black
The premium backwater pumping station for faecal and non-faecal wastewater is equipped with a pump and a motor-driven closure system. The pipe cross-section is normally open. In case of backwater, the motor-driven closure system is closed automatically. During the backwater phase, the water drains via the pump with integrated macerator. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Variant Emergency closure: yes Pump control: Control unit Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 General characteristics Colour: black Nominal size (DN): 150 Outer diameter (OD): 160 mm Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-388 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Odour trap: Multistop Dimensions Net weight: 28 kg Gross weight: 33,5 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Length: 656 mm Width: 590 mm Packaging dimension: length: 290 mm Packaging dimension: width: 196 mm Packaging dimension: height: 102 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: L 15 (EN 1253-1) Pumping device Pump: SPZ 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Motor connection cable type: ÖPVC-JB/OB 300/500 V/3 x 0,75 mm2 mm² Sensor connection cable type: ÖPVC-JB/OB 300/500 V/3 x 0,75 mm2 mm² Length of mains cable for pump: 5 m Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class control unit: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): C 16 A
