Aquapump XXL pumping station

The powerful solution for extremely large amounts of water.

Aquapump XXL pumping station

It couldn't be more powerful. The Aquapump XXL can even cope with large quantities of wastewater and is particularly suitable for commercial and industrial use thanks to its overall size. The pumping station has been designed as a modular system and can be variably combined with technical and chamber modules. The Aquapump XXL is groundwater-resistant to a depth of 3,000 mm.

The pumping station is available as a Mono or Duo system with particularly powerful pumps with an input power of up to 11 kW. A Comfort control unit can optionally be added.

Advantages  Product overview

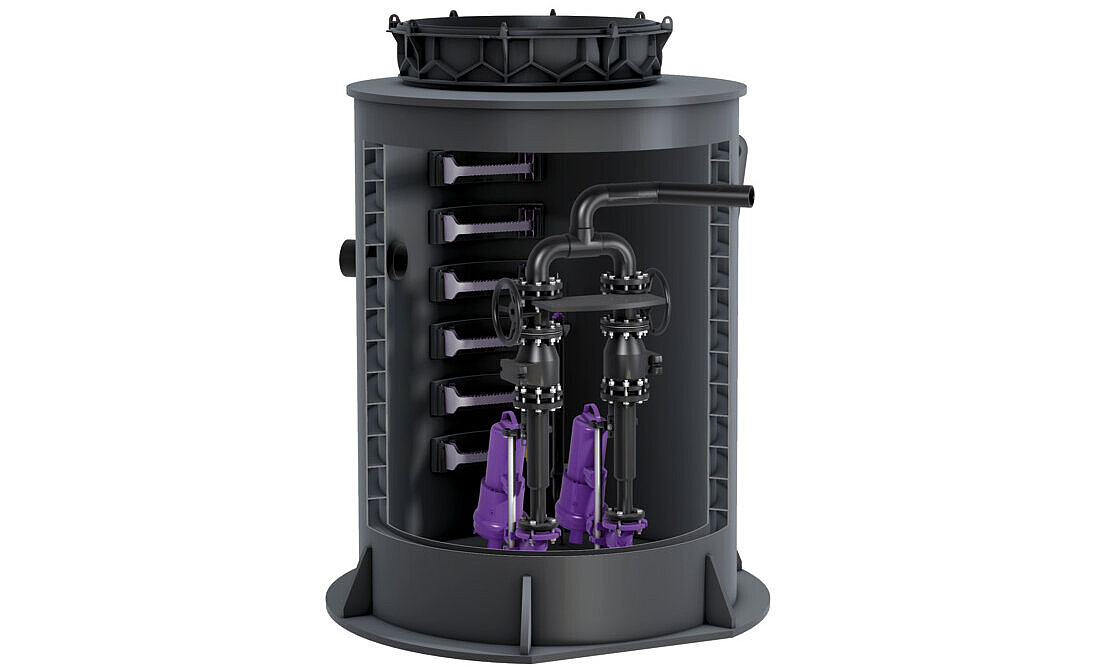

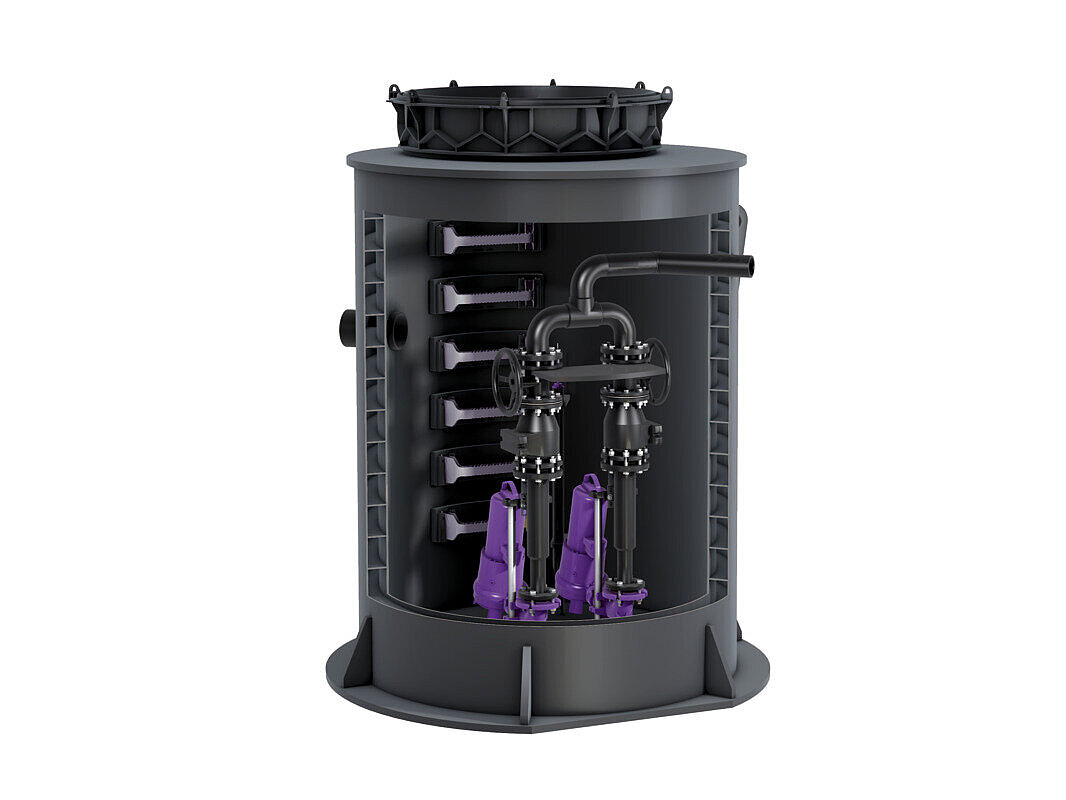

Aquapump XXL pumping station

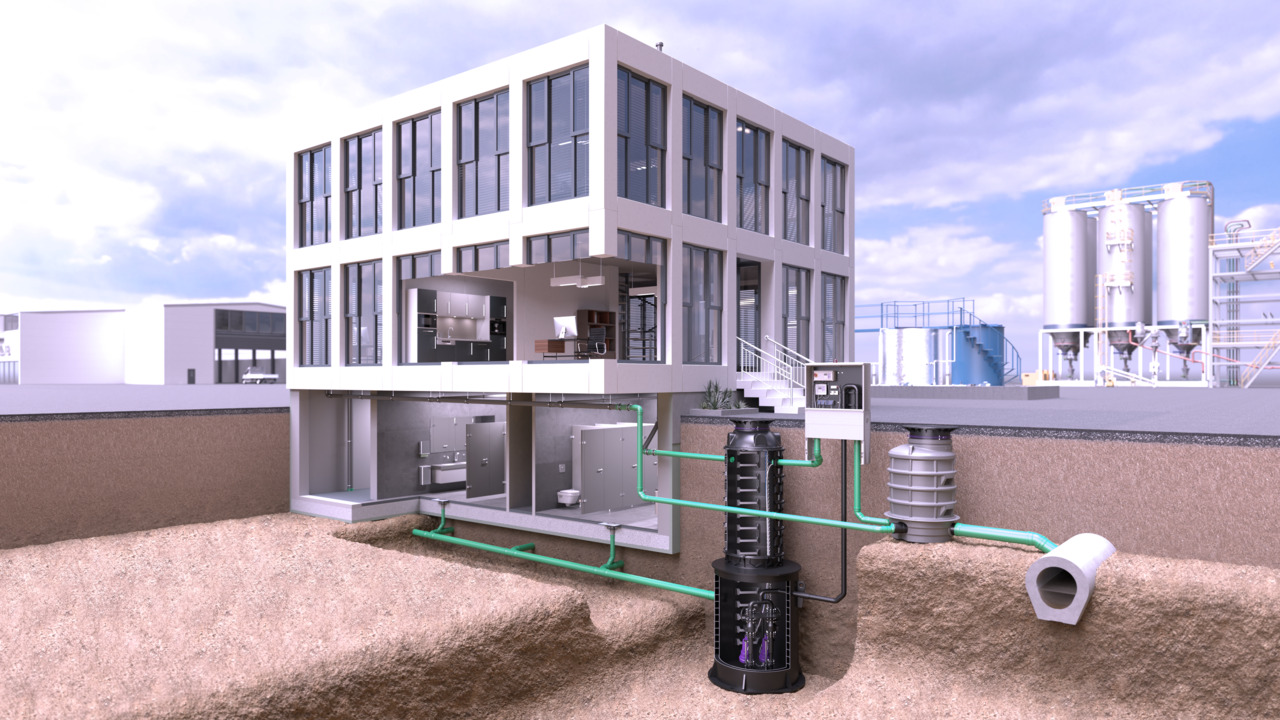

Installation diagramm for Pumping station Aquapump XXL
Pumping performance diagram for pump GTF/GTK 5200
Pumping performance diagram for pump STZ 4400/5200/7500/11000

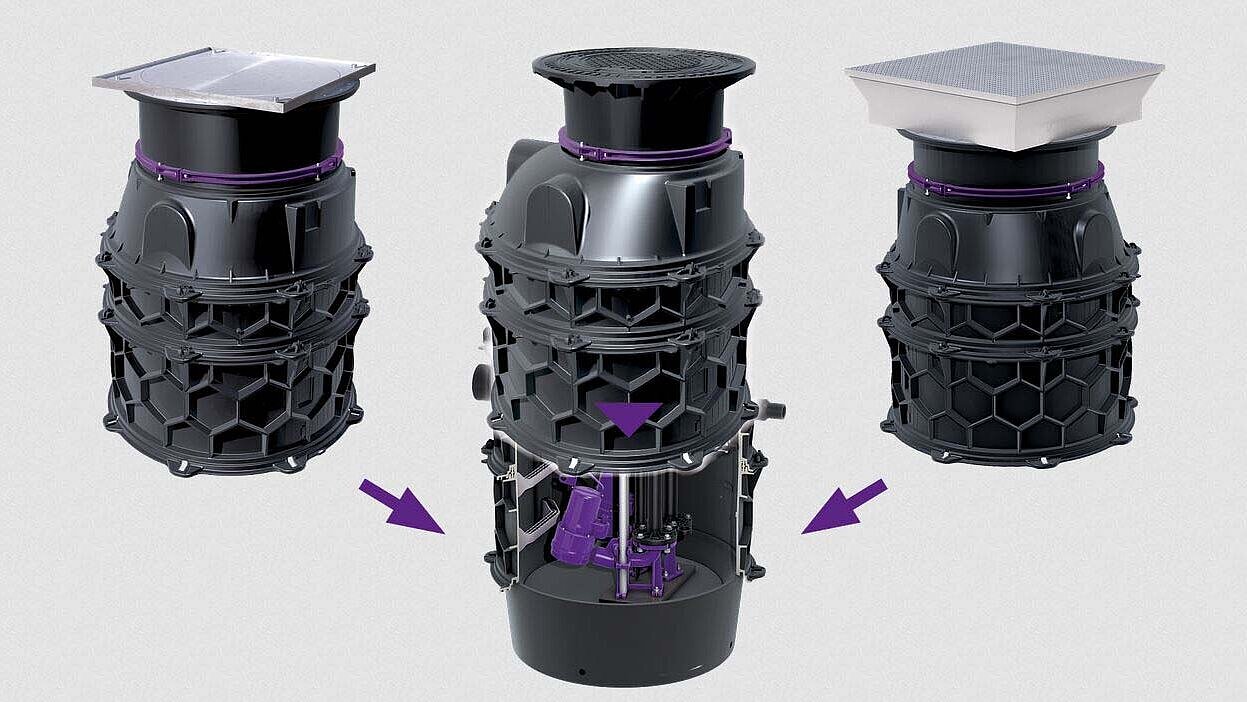

Flexible installation

Flexible installation

Thanks to the modular design with a large selection of chamber modules and upper sections, the pumping station can be installed both underground and in a floor slab. Our standard engineering chambers are groundwater-resistant up to three metres and can be built up to a height of five metres.

To the engineering chambers

Pumping station Aquapump XXL

Type of wastewater: wastewater without sewage

Pump: GTF 5200

Operating voltage Operating mode Type of system Level measurement instrument Item no.
8743043 400  VLT S1 Single station Level sensor 8743043
8743044 400  VLT S1 Twin pump station Level sensor 8743044

Pump: GTK 5200

Operating voltage Operating mode Type of system Level measurement instrument Item no.
8743045 400  VLT S1 Single station Level sensor 8743045
8743046 400  VLT S1 Twin pump station Level sensor 8743046

Type of wastewater: wastewater with sewage

Pump: STZ 4400

Operating voltage Operating mode Type of system Level measurement instrument Item no.
8743035 400  VLT S1 Single station Level sensor 8743035
8743039 400  VLT S1 Twin pump station Level sensor 8743039

Pump: STZ 5200

Operating voltage Operating mode Type of system Level measurement instrument Item no.
8743036 400  VLT S1 Single station Level sensor 8743036
8743040 400  VLT S1 Twin pump station Level sensor 8743040

Pump: STZ 7500

Operating voltage Operating mode Type of system Level measurement instrument Item no.
8743037 400  VLT S1 Single station Level sensor 8743037
8743041 400  VLT S1 Twin pump station Level sensor 8743041

Pump: STZ 11000

Operating voltage Operating mode Type of system Level measurement instrument Item no.
8743038 400  VLT S1 Single station Level sensor 8743038
8743042 400  VLT S1 Twin pump station Level sensor 8743042
Individual solutions, plant construction employees

Not found the right product?

In addition to our standard pumping stations, we develop individual solutions for special requirements – in terms of form, function and dimensioning – at the customer's request.
