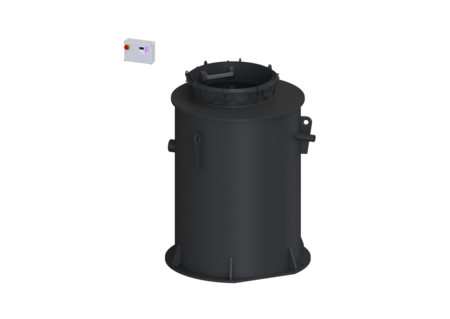

Aquapump XXL Tronic STZ4400-S1

Item no. 8743035
GTIN 4026092078020
Price group 60

Variant Note on installation depth: in combination with a chamber module Type of system: Single unit Shut-off valve: Shut-off valve made of cast iron Passage seal for conduit pipe (DN): 100 Access steps: yes Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Chamber system: Twin walled re-enforced pipe chamber General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Tronic ATEX: yes Dimensions Net weight: 609,7 kg Gross weight: 677,7 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1880 mm Width: 1880 mm Height: 2440 mm Packaging dimension: length: 3200 mm Packaging dimension: width: 1800 mm Packaging dimension: height: 1760 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Distance from centre of outlet pipe to tank bottom: 1735 mm Distance pipe bottom inlet to tank bottom: 1320 mm Distance from centre of inlet pipe to tank bottom: 1400 mm Distance from inlet pipe invert to top of tank: 1090 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1600 mm Clear width of entry (LW): 1000 mm Pumping volume: 820 l Pumping device Pump: STZ 4400 Number of pumps: 1 Weight, pump: 56 kg Connection type: Direct connection Rated current: 7,5 A Length of mains cable for pump: 10 m Protection class: I Insulation class: H Cos phi - power factor: 0,89 Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 21,3 m³/h Max. pumping height: 46,7 m Speed: 2840 U/min Power P1: 4,4 kW Power P2: 3,7 kW Operating mode: S1 Type of pump connection cable: H07RN8-F PLU 7G 1.5 mm² Impeller type: Macerator Control Control unit: Comfort Plus Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 7,5 A
  Title Item no.
Chamber module LW 1000 floor slab Access LW 600, 380-629 mm, Class A/B 8740000 Show
Chamber module LW 1000 floor slab Access LW 600, 380-629 mm, Class D 8740001 Show
Chamber module LW 1000 floor slab Access LW 800, 411-660 mm, Class K 3 8740002 Show
Chamber module LW 1000 floor slab Access LW 800, 668-917 mm, Class K 3 8740003 Show
Chamber module LW 1000 floor slab Access LW 800, 396-645 mm, Class A 15 8740004 Show
Chamber module LW 1000 floor slab Access LW 800, 653-902 mm, Class L 15 8740005 Show
Chamber module LW 1000 floor slab Access LW 600, 630-879 mm, Class A/B 8740006 Show
Chamber module LW 1000 floor slab Access LW 600, 630-879 mm, Class D 8740007 Show
Chamber module LW 1000 floor slab Access LW 800, 661-910 mm, Class K 3 8740008 Show
Chamber module LW 1000 floor slab Access LW 800, 918-1167 mm, Class K 3 8740009 Show
Chamber module LW 1000 floor slab Access LW 800, 646-895 mm, Class A 15 8740010 Show
Chamber module LW 1000 floor slab Access LW 800, 903-1152 mm, Class L 15 8740011 Show
Chamber module LW 1000 floor slab Access LW 600, 880-1129 mm, Class A/B 8740012 Show
Chamber module LW 1000 floor slab Access LW 600, 880-1129 mm, Class D 8740013 Show
Chamber module LW 1000 floor slab Access LW 800, 911-1160 mm, Class K 3 8740014 Show
Chamber module LW 1000 floor slab Access LW 800, 1168-1417 mm, Class K 3 8740015 Show
Chamber module LW 1000 floor slab Access LW 800, 896-1145 mm, Class A 15 8740016 Show
Chamber module LW 1000 floor slab Access LW 800, 1153-1402 mm, Class L 15 8740017 Show
Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class A/B 8740018 Show
Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class D 8740019 Show
Chamber module LW 1000 floor slab Access LW 800, 1161-1410 mm, Class K 3 8740020 Show
Chamber module LW 1000 floor slab Access LW 800, 1418-1667 mm, Class K 3 8740021 Show
Chamber module LW 1000 floor slab Access LW 800, 1146-1395 mm, Class A 15 8740022 Show
Chamber module LW 1000 floor slab Access LW 800, 1403-1652 mm, Class L 15 8740023 Show
Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class A/B 8740024 Show
Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class D 8740025 Show
Chamber module LW 1000 floor slab Access LW 800, 1411-1660 mm, Class K 3 8740026 Show
Chamber module LW 1000 floor slab Access LW 800, 1668-1917 mm, Class K 3 8740027 Show
Chamber module LW 1000 floor slab Access LW 800, 1396-1645 mm, Class A 15 8740028 Show
Chamber module LW 1000 floor slab Access LW 800, 1653-1902 mm, Class L 15 8740029 Show
Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class A/B 8740030 Show
Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class D 8740031 Show
Chamber module LW 1000 floor slab Access LW 800, 1661-1910 mm, Class K 3 8740032 Show
Chamber module LW 1000 floor slab Access LW 800, 1646-1895 mm, Class A 15 8740034 Show
Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class A/B 8740036 Show
Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class D 8740037 Show
Chamber module LW 1000 floor slab Access LW 800, 1911-2160 mm, Class K 3 8740038 Show
Chamber module LW 1000 floor slab Access LW 800, 1896-2145 mm, Class A 15 8740040 Show
Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class A/B 8740042 Show
Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class D 8740043 Show
Chamber module LW 1000 floor slab Access LW 800, 2161-2410 mm, Class K 3 8740044 Show
Chamber module LW 1000 floor slab Access LW 800, 2146-2395 mm, Class A 15 8740046 Show
Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class A/B 8740048 Show
Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class D 8740049 Show
Chamber module LW 1000 floor slab Access LW 800, 2411-2660 mm, Class K 3 8740050 Show
Chamber module LW 1000 floor slab Access LW 800, 2396-2645 mm, Class A 15 8740052 Show
Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class A/B 8740054 Show
Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class D 8740055 Show
Chamber module LW 1000 floor slab Access LW 800, 2661-2910 mm, Class K 3 8740056 Show
Chamber module LW 1000 floor slab Access LW 800, 2646-2895 mm, Class A 15 8740058 Show
Chamber module LW 1000 floor slab Access LW 800, 375-624 mm, Class K 3 8740122 Show
Chamber module LW 1000 floor slab Access LW 800, 625-874 mm, Class K 3 8740123 Show
Chamber module LW 1000 floor slab Access LW 800, 875-1124 mm, Class K 3 8740124 Show
Chamber module LW 1000 floor slab Access LW 800, 1125-1374 mm, Class K 3 8740125 Show
Chamber module LW 1000 floor slab Access LW 800, 1375-1624 mm, Class K 3 8740126 Show
Chamber module LW 1000 floor slab Access LW 800, 1625-1874 mm, Class K 3 8740127 Show
Chamber module LW 1000 floor slab Access LW 800, 1875-2124 mm, Class K 3 8740128 Show
Chamber module LW 1000 floor slab Access LW 800, 2125-2374 mm, Class K 3 8740129 Show
Chamber module LW 1000 floor slab Access LW 800, 2375-2624 mm, Class K 3 8740130 Show
Chamber module LW 1000 floor slab Access LW 800, 2625-2874 mm, Class K 3 8740131 Show
Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class B 8740141 Show
Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class B 8740142 Show
Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class B 8740143 Show
Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class D 8740158 Show
Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class D 8740159 Show
Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class D 8740160 Show
Chamber module LW 1000 floor slab Access LW 800, 638-887 mm, K 3, wa.co. 8740222 Show
Chamber module LW 1000 floor slab Access LW 800, 888-1137 mm, K 3, wa.co. 8740223 Show
Chamber module LW 1000 floor slab Access LW 800, 1138-1387 mm, K 3, wa.co. 8740224 Show
Chamber module LW 1000 floor slab Access LW 800, 1388-1637 mm, K 3, wa.co. 8740225 Show
Chamber module LW 1000 floor slab Access LW 800,1638-1887 mm, K 3, wa.co. 8740226 Show
  Title Item no.
  Title Item no.
Basic alarm unit with electronic probe 20222 Show
Basic alarm unit with optical probe 20223 Show
Basic alarm unit with optical probe 10 m 20224 Show
Compressor set for air bubbling 28048 Show
Cable fastener Set for engineering chamber 28076 Show
Retrofit kit equipoten. bonding Rail for Mono systems 28088 Show
Retrofit kit equipoten. bonding Rail for Duo systems 28089 Show
TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
Aerial with magnetic base for TeleControl Modem, Cable 2.5 m 28793 Show
Extension cable for aerial with magnetic base, L: 2 m 28794 Show
Connection box for level sensor extension 28799 Show
Pressure hose Sold by the metre, 6x4 mm 100 680071 Show
Seal for intermediate section 680125 Show
Intermediate section 250 mm, for chamber module LW 1000 680370 Show
Intermediate section 500 mm, for chamber module LW 1000 680371 Show
Connecting bolt set Set of 10 680373 Show
Replacement chain pumping statio. Stainless steel, length 2 m 680528 Show
Replacement chain pumping statio. Stainless steel, length 3 m 680529 Show
Replacement chain for pump statns Stainless steel, length 4 m 680530 Show
Replacement chain, pumping stat. Stainless steel, length 5 m 680531 Show
Potential-free contact Extension set for control units Basic 80074 Show
Cable accessories 80889 Show
Cable accessories Extension for pump 80891 Show
Installation set Thermostat, Hygrostat 97713 Show
Outdoor Cabinet W: 590 mm,for installation control units 97714 Show
Warning beacon for outdoor cabinet 97715 Show
Outdoor Cabinet W: 460 mm, for installation control unit 97716 Show
Outdoor cabinet W: 785 mm,for installation control units 97723 Show
Outdoor Cabinet W: 1115mm,for installation control units 97724 Show
  Title Item no.
  • Control unit (schaltgeraet): Comfort Plus
  • ATEX (atex): yes
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): underground installation
  • Type of wastewater (abwasserart_de): with sewage
  • Alarm sensor (alarmgeber): Level sensor
  • Pump (pumpe): STZ 4400
  • Impeller type (laufrad_typ): Macerator
  • Operating voltage (betriebsspannung): 400  V
  • Type of system (anlagenart): Single unit
