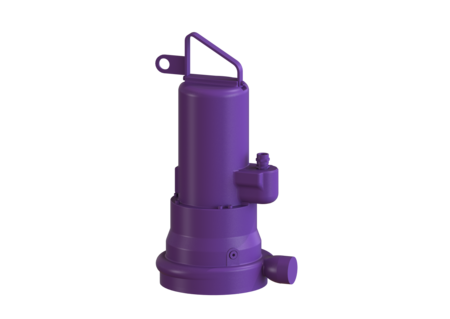

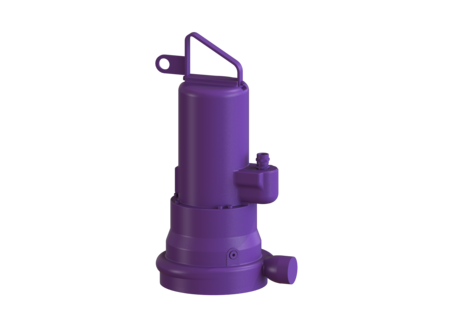

Replacement pump STZ 4400

without float switch, ATEX

680703
PDF product data sheet

Replacement pump without float switch for pumping station, wet installation

Item no. 680703
GTIN 4026092081983
Price group 90

    Replacement pump STZ 4400 without float switch, ATEX
    Replacement pump without float switch for pumping station, wet installation Variant Pump control: Control unit General characteristics Type of wastewater: for wastewater with and without sewage ATEX: yes Dimensions Net weight: 55 kg Gross weight: 57 kg Packaging dimension: length: 380 mm Packaging dimension: width: 260 mm Packaging dimension: height: 600 mm Pumping device Pump: STZ 4400 Weight, pump: 56 kg Connection type: Direct connection Rated current: 7,5 A Protection class: I Insulation class: H Cos phi - power factor: 0,89 Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 46,7 m Speed: 2840 U/min Power P1: 4,4 kW Power P2: 3,7 kW Operating mode: S1 Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN8-F PLU 7G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 10 m Control Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Rated current: 7,5 A Type of fuse required (electrical protection): Fuse protection through control unit 400 V
      Title Item no.
      Title Item no.
      Title Item no.
    680528 Replacement chain pumping statio. Stainless steel, length 2 m 680528 Show
    680529 Replacement chain pumping statio. Stainless steel, length 3 m 680529 Show
    680530 Replacement chain for pump statns Stainless steel, length 4 m 680530 Show
    680531 Replacement chain, pumping stat. Stainless steel, length 5 m 680531 Show
      Title Item no.
    • ATEX (atex): yes
    • Type of wastewater (abwasserart_de): for wastewater with and without sewage
