Shell Kit

for Pumpfix F, without nozzles, bl.cover

24000S-RBK
24000S-RBK
PDF product data sheet

KESSEL Shell Kit for Pumpfix F, without nozzles, bl.cover, wastewater with sewage, floor slab installation, with submersible pumps, type of cover Cover plate with slotted cover

Item no. 24000S-RBK
GTIN 4026092097069
Price group 30

    Shell Kit for Pumpfix F, without nozzles, bl.cover

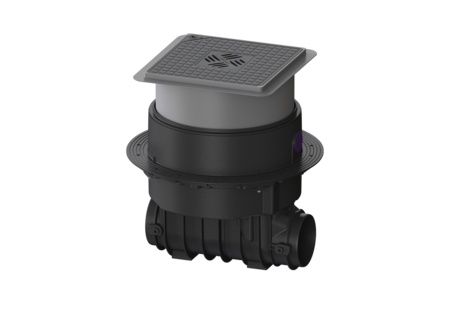

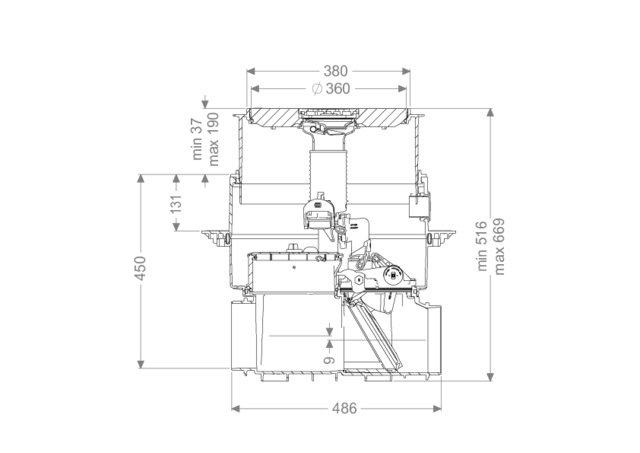

    KESSEL shell kit for Pumpfix F, without sockets, black cover Shell kit consisting of a drain body, upper section and flange for joint sealing. The inlet and outlet sockets are not included. For combination with a KESSEL technology kit for creating a Pumpfix F backwater pumping station. General characteristics Colour: black Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-388 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Dimensions Net weight: 15,2 kg Gross weight: 18 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Packaging dimension: length: 785 mm Packaging dimension: width: 615 mm Packaging dimension: height: 550 mm Tank/drain body Socket version: optional Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: L 15 (EN 1253-1) :
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Type of cover (abdeckungsart): Cover plate with slotted cover
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): floor slab installation
    • Type of wastewater (abwasserart_de): with sewage
