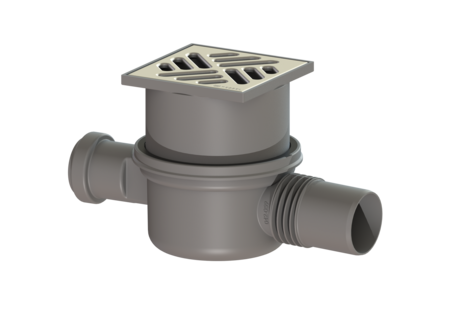

The Superflat bathroom drain

DN 50, Slotted grating

The Superflat bathroom drain is suitable for indoor floor drainage. The drain made of PP is equipped with a secure, reliably installed seal as well as a removable odour trap.

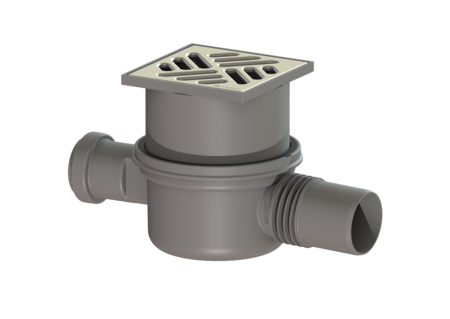

Item no. 42701.20
GTIN 4026092028537
Price group 10

    The Superflat bathroom drain DN 50, Slotted grating
    The Superflat bathroom drain is suitable for indoor floor drainage. The drain made of PP is equipped with a secure, reliably installed seal as well as a removable odour trap. Version: Odour trap: included Position of lateral connection: Type II Sealing water height: 30 mm General characteristics: Nominal size (DN): 50 Outer diameter (OD): 50 Dimensions: Length: 250 mm Width: 110 mm Min. design height: 90 mm Cutout dimension, length: 260 mm Cutout dimension, width: 180 mm Tank: Number of inlets: 1 ST Inlet nominal size (DN): 40 Number of outlets: 1 ST Drain body: Material of drain body: PP Vertical adjustment: vertically adjustable upper section Vertical adjustment: 10 - 60 mm Coverage features: Type of cover: Slotted cover Cover material: 304 stainless steel Colour of cover: silver Load class: K 3 (EN 1253-1) Length: 100 mm Width: 100 mm Surface: Polished SST Locking: placed Grating: Rim length: 107 mm Rim width: 107 mm Rim material: PP Shape of upper section: square Upper section material: PP Discharge rate (l/s) with 20 mm backwater: 0.8 l/s
      Title Item no.
      Title Item no.
      Title Item no.
    Adapter DN 50/40 27118 Show
    Adapter DN 50/70 27126 Show
    Extension section System 100, H: 161 mm 27146 Show
    Extension section System 100, with pressure sealing flange 27198 Show
    Extension section System 100, with glued flange 27199 Show
      Title Item no.
    Slotted cover 100x100 mm, SST 27150 Show
    • Complete article (ATTR-254): yes
    • Electrical connection available (ATTR-256): no
    • Connection to the BCS, BAC (ATTR-257): no
    • Shape of upper section (ATTR-259): square
    • Type of drainage (ATTR-260): Point drain
    • Grating/channel shape (ATTR-261): square
    • Type of drainage (ATTR-263): open channel
    • - (ATTR-340):
    • Country of origin (ATTR-322): DE
    • Rim material (ATTR-111): PP
    • Rim length (ATTR-111B): 107  MMT
    • Rim width (ATTR-111C): 107  MMT
    • Vertical adjustment (ATTR-226_VB): 10  MMT
    • Odour trap (ATTR-115): included
    • Position of lateral connection (ATTR-228): Type II
    • Length (ATTR-A6A): 250  MMT
    • Width (ATTR-A6B): 110  MMT
    • Cutout dimension, length (ATTR-160): 260  MMT
    • Cutout dimension, width (ATTR-161): 180  MMT
    • Min. design height (ATTR-229): 90  MMT
    • Volume (ATTR-320): 0.0  MTQ
    • Packaging dimension: length (ATTR-325): 250  MMT
    • Packaging dimension: width (ATTR-326): 107  MMT
    • Packaging dimension: height (ATTR-327): 140  MMT
    • Dimensions (ATTR-323): 600X400X300MM 10STK/KARTON
    • Number of packages (ATTR-321): 0
    • Type of cover (ATTR-A21): Slotted cover
    • Colour of cover (ATTR-A2A): silver
    • Load class (ATTR-A2B): K 3 (EN 1253-1)
    • Locking (ATTR-A2D): placed
    • Cover material (ATTR-A2E): 304 stainless steel
    • Surface (ATTR-A2F): Polished SST
    • Length (ATTR-A2M): 100  MMT
    • Width (ATTR-A2N): 100  MMT
    • Number of inlets (ATTR-B1B): 1  PCE
    • Inlet nominal size (DN) (ATTR-B1CA): 40  MMT
    • Number of outlets (ATTR-B15B): 1  PCE
    • Material of drain body (ATTR-232): PP
    • Net weight (ATTR-A3A): 0.4  KGM
    • Gross weight (ATTR-A3B): 0.5  KGM
    • Nominal size (DN) (ATTR-118): 50
    • Outer diameter (OD) (ATTR-147): 50
    • Sealing water height (ATTR-128): 30  MMT
    • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 0.8  LTS
    • Vertical adjustment (ATTR-177): vertically adjustable upper section
    • Upper section material (ATTR-231): PP
    • NDOP (ATTR-304): 009-061
    • Product class, temperature rating (ATTR-223): A
    • Brand (M-ATTR-001): KESSEL
    • Product group (M-ATTR-002): Drains
    • Product type (M-ATTR-003): Bathroom drain
    • Product family (M-ATTR-004): The Superflat
    • Product name (M-ATTR-005): The Superflat
    • Temperature class (ATTR-253): A
