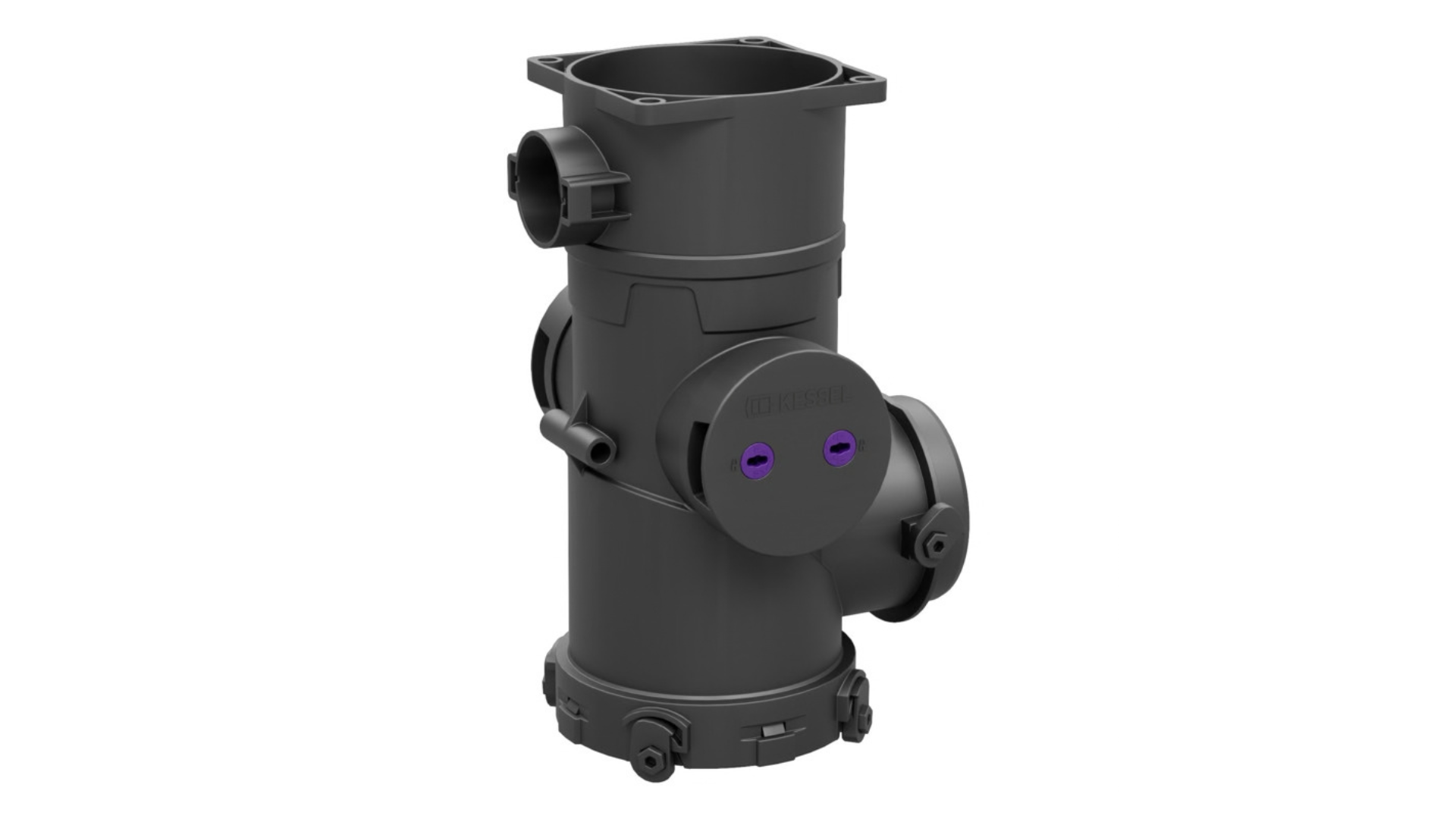

System isolator CleverLoop
The revolution without breaking through the ceiling
If the sewer is higher than the drainage fixture, the wastewater must be pumped to the sewer via a backwater loop using a lifting station. Until now, expensive, complex and space-consuming ceiling penetrations were often unavoidable – until now! The CleverLoop system isolator is a revolutionary product for new builds and renovations that requires no additional construction work: affordable, clean, sustainable and quick.

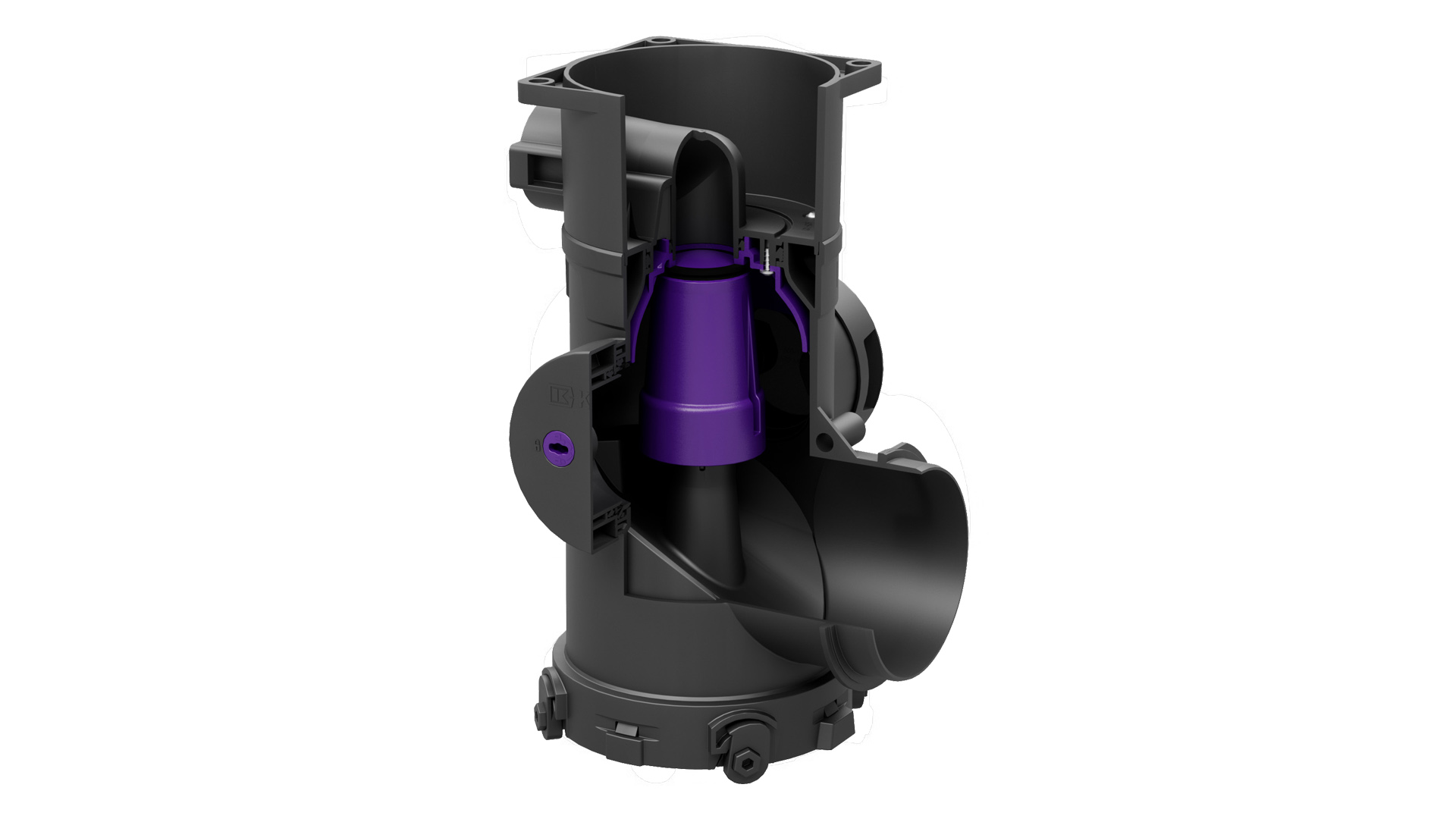

And this is how it works: thanks to its completely innovative design, the CleverLoop no longer requires water to be lifted above the backwater level. Nevertheless, when closed, the internal mechanism provides reliable protection against backwater. CleverLoop is available with KESSEL pressure connections in nominal sizes DN 50, DN 80 and DN 100 with a click system.
If a lifting station is retrofitted and the basement ceiling is below the backwater level, the CleverLoop system separator can prevent the need for costly ceiling penetration work.

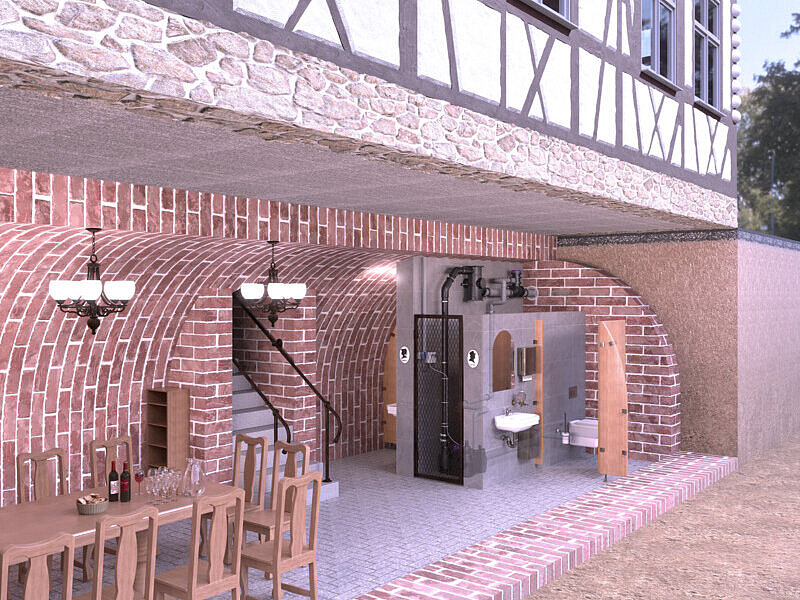

In the case of historic or listed buildings, cutting through the ceiling is usually neither desirable nor permitted. This is where CleverLoop and CleverVent come in!
Total commitment in every situation
Applications

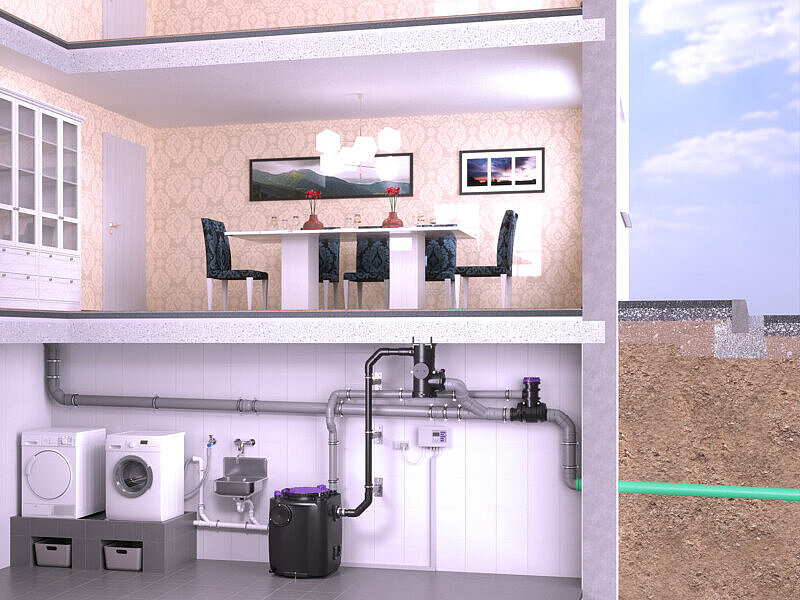

A lifting station is to be installed in the basement, but as the basement ceiling is below the backwater level, a hole would need to be drilled through the ceiling for the pressure pipe. Thanks to the CleverLoop system separator, there is now a solution that avoids drilling through the ceiling!
Unbelievably cheap
If local conditions require the installation of a backwater loop, the costs of building drainage often skyrocket in line with the size of the property: however, in a detached house, using CleverLoop can save around 50% of the costs compared to a conventional installation.
The benefit is even more pronounced in larger properties: in a multi-storey commercial or multi-family building, where a ventilation pipe is also required, costs can be reduced by up to 70% by using the CleverLoop system isolator in combination with the CleverVent ventilation valve.
Revolutionarily resource-efficient
Fewer pipes, less installation material, no fire protection collars: choosing the CleverLoop system isolator means you need significantly fewer building materials. This significantly reduces the carbon footprint. This conscious use of valuable resources sends a clear signal in favour of sustainable construction. An added bonus: the CleverLoop itself is made from 66 per cent recycled material.
Revolutionarily efficient
Wasting an unnecessary amount of space on a backwater loop is a real waste, and not just in areas where property prices are high. CleverLoop is the space-saving solution that completely eliminates the need for a breakthrough into a second room above the lifting station. A welcome bonus: thanks to optimal sound insulation, there is no nuisance from disruptive noise either.
