System separator

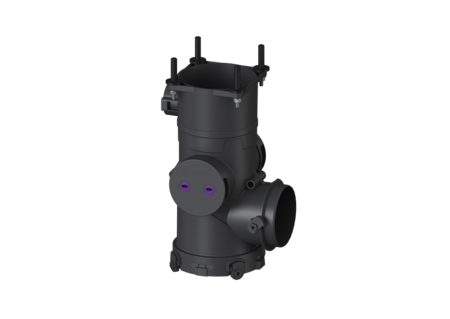

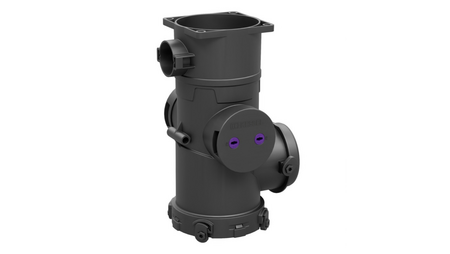

CleverLoop L

23000
23000

The innovative system separator for lifting stations – safe, flexible and easy to maintain Our system isolator for the pressure pipe of lifting stations impresses with a mechanical closure that only opens during pump operation and then closes automatically. The innovative closure therefore provides maximum safety against unwanted backflow – without additional power requirements or complicated technology. Thanks to the integrated maintenance opening(s), you have quick and easy access – for effortless maintenance. Maintenance interval: 100,000 switching cycles at the latest every 5 years, the major maintenance must be done even with fewer switching cycles CleverLoop can be easily adapted to different pressure connections (DN 50-100) below the backwater level in the free-flow drainage system with sleeve and socket dimensions (DN 90-200) (Sleeve, socket and pressure pipe connection not included).

Item no. 23000
GTIN 4026092111161
Price group 20

    System separator CleverLoop L
    The innovative system separator for lifting stations – safe, flexible and easy to maintain Our system isolator for the pressure pipe of lifting stations impresses with a mechanical closure that only opens during pump operation and then closes automatically. The innovative closure therefore provides maximum safety against unwanted backflow – without additional power requirements or complicated technology. Thanks to the integrated maintenance opening(s), you have quick and easy access – for effortless maintenance. Maintenance interval: 100,000 switching cycles at the latest every 5 years, the major maintenance must be done even with fewer switching cycles CleverLoop can be easily adapted to different pressure connections (DN 50-100) below the backwater level in the free-flow drainage system with sleeve and socket dimensions (DN 90-200) (Sleeve, socket and pressure pipe connection not included). General characteristics Colour: black Material: PP Type of wastewater: for wastewater with and without sewage Installation situation: exposed drainage pipe, gravity drainage Delivery state: Modular set for assembly on site Power limit: Size L up to 9 l/sec Fixing: Supplied with soundproofed dowels for load-bearing walls Dimensions Net weight: 5,7 kg Gross weight: 7 kg Length: 293 mm Width: 315 mm Height: 495 mm Packaging dimension: length: 378 mm Packaging dimension: width: 378 mm Packaging dimension: height: 515 mm Tank/drain body Socket version: optional Pumping device Free passage: 48 mm
      Title Item no.
      Title Item no.
      Title Item no.
    83081 Spigot DN 100, with seal 83081 Show
    83082 Spigot DN 125, with seal 83082 Show
    83083 Spigot DN 150, with seal 83083 Show
    83084 Spigot DN 200, with seal 83084 Show
      Title Item no.
    • Type of wastewater (abwasserart_de): for wastewater with and without sewage
    • Material (material): PP
    • (nennweite):
    • Length (laenge): 293  mm
    • Width (breite): 315  mm
