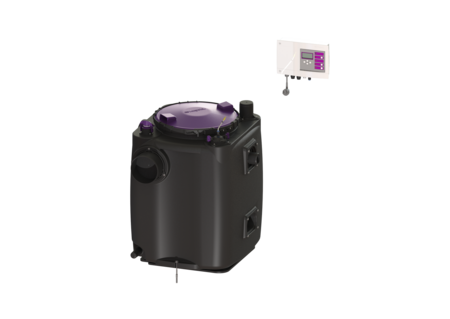

Lifting station Aqualift S 200

Duo, GTF 1250, Free-standing set-up

KESSEL Lifting station Aqualift S 200 Duo, wastewater without sewage, coded plug, pump control by Control unit, control unit Comfort, with 2 submersible GTF 1250 pumps, operating mode S1

  • Easy tool-free maintenance
  • Tank made of PE, resistant to aggressive wastewater
  • Including backflow preventer for the pressure pipe
Item no. 28518
GTIN 4026092092941
Price group 20

Lifting station Aqualift S 200 Duo, GTF 1250, Free-standing set-up
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: duo pump Pump control: Control unit Backwater protection: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: free-standing installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Duo Dimensions Net weight: 42 kg Gross weight: 49 kg Length: 670 mm Width: 655 mm Height: 815 mm Packaging dimension: length: 900 mm Packaging dimension: width: 900 mm Packaging dimension: height: 939 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet nominal size (DN): 100 mm Pumping volume: 100 l Tank volume: 220 l Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Pumping device Pump: GTF 1250 Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,4 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 20 m³/h Max. pumping height: 11 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Rated current: 5,4 A
  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162 Show
Retrofit kit Alarm float switch 28016 Show
Hole saw for DN 100/125/150 500100 Show
Hole saw for DN 50/70/100 500101 Show
Potential-free contact Additio. circuit board for control units 80072 Show
Cable accessories 80889 Show
Cable accessories 80891 Show
Seal for pipe penetration, DN 50 850114 Show
Seal for pipe penetration, DN 70 850116 Show
Seal for pipe penetration, DN 100 850117 Show
Seal for pipe penetration, DN 125 850118 Show
Seal for pipe penetration, DN 150 850119 Show
  Title Item no.
Control unit Comfort Duo 230V 28746 Show
One-handed closure for backflow preventer 680018 Show
Battery 9 V block 680034 Show
Seal for pressure pipe connection 680067 Show
Cover with seal 680076 Show
Seal for upper section, from 07/2014 680150 Show
Cover d: 420 mm, up to 03/2004 680326 Show
Pump connection with seal and flap 680475 Show
Pump connection Minilift, Aqualift S 680760 Show
Turn fastener for pump connection lock 680762 Show
Flap housing Duo, with pump connector 680781 Show
Multi-vane impeller for STF 1300 680804 Show
Pump hanger GTF 1250, Duo 680974 Show
Clamp fastener for cover 450 mm 680975 Show
Replacement pump GTF 1250 without float switch, 5 m 680979 Show
Blind plug for Aqualift S 100/200 lifting station 680980 Show
Cable gland for Aqualift S 100/200 680981 Show
Inlet socket DN 100 for Aqualift S 100/200 680986 Show
Inlet socket DN 150 for Aqualift S 100/200 680987 Show
Immersion pipe for Aqualift S 100 lifting station 680988 Show
Sound absorption mat for Aqualift S 100 lifting station 680990 Show
Pressure pipe DN 32 for Aqualift S 200 GTF 600 680992 Show
Venting socket DN 70 for Aqualift S 200 680994 Show
Connector for Aqualift S 200 immersion pipe 680995 Show
Hose connection set for immersion pipes, length 5 m 680996 Show
Seal DN65, for backflow preventer 680999 Show
  • Control unit (schaltgeraet): Comfort
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Pump (pumpe): GTF 1250
  • (ausfuehrung):
  • Type of system (anlagenart): duo pump
