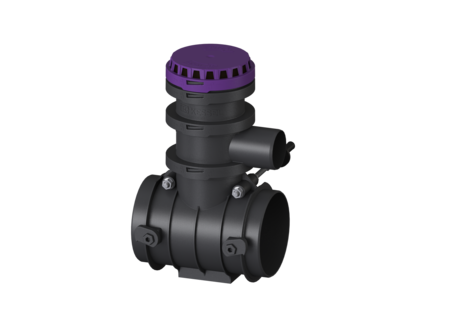

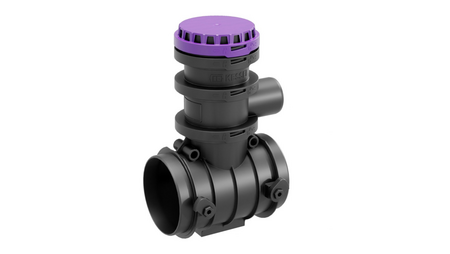

Ventilation switch
CleverVent


The ventilation switch for safe aeration and ventilation – innovative, reliable, flexible Our alternative aeration and ventilation unit sets new standards for the aeration and ventilation pipe of lifting stations and grease separators. With state-of-the-art technology and a clever design, it ensures safe operation – even in the case of backwater. Automatic safety: Equipped with two float closures that close automatically in the case of backwater and therefore reliably protect your system. Dual functionality: The aeration and ventilation is carried out directly in normal operation through the sewer system. In the case of backwater, an activated carbon filter takes over, ensuring ventilation across the room. The filter remains dry during normal operation, extending its service life. Easy maintenance without tools: The modular design allows quick and convenient access to the inside of the unit. Maximum flexibility: CleverVent can be easily adapted below the backwater level - in the free-flow drainage system with different sleeve and socket dimensions (DN 90-200) (accessories not included).
| Item no. | 23001 |
|---|---|
| GTIN | 4026092111178 |
| Price group | 20 |
Ventilation switch CleverVent
The ventilation switch for safe aeration and ventilation – innovative, reliable, flexible Our alternative aeration and ventilation unit sets new standards for the aeration and ventilation pipe of lifting stations and grease separators. With state-of-the-art technology and a clever design, it ensures safe operation – even in the case of backwater. Automatic safety: Equipped with two float closures that close automatically in the case of backwater and therefore reliably protect your system. Dual functionality: The aeration and ventilation is carried out directly in normal operation through the sewer system. In the case of backwater, an activated carbon filter takes over, ensuring ventilation across the room. The filter remains dry during normal operation, extending its service life. Easy maintenance without tools: The modular design allows quick and convenient access to the inside of the unit. Maximum flexibility: CleverVent can be easily adapted below the backwater level - in the free-flow drainage system with different sleeve and socket dimensions (DN 90-200) (accessories not included). General characteristics Colour: black Material: PP Type of wastewater: for wastewater with and without sewage Installation situation: exposed drainage pipe, gravity drainage Delivery state: Modular set for assembly on site Fixing: Supplied with soundproofed dowels for load-bearing walls Air exchange rate: 15 l/s Dimensions Net weight: 2,92 kg Gross weight: 4,42 kg Length: 250 mm Width: 221 mm Height: 422 mm Packaging dimension: length: 378 mm Packaging dimension: width: 378 mm Packaging dimension: height: 515 mm Tank/drain body Venting connection (DN): 70 Socket version: optional
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
![]() | Spigot DN 100, with seal | 83081 | Show |
![]() | Spigot DN 125, with seal | 83082 | Show |
![]() | Spigot DN 150, with seal | 83083 | Show |
![]() | Spigot DN 200, with seal | 83084 | Show |
![]() | Socket DN 100, with seal | 83085 | Show |
![]() | Socket DN 125, with seal | 83086 | Show |
![]() | Socket DN 150, with seal | 83087 | Show |
![]() | Socket DN 200, with seal | 83088 | Show |
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data |
- Type of wastewater (abwasserart_de):
for wastewater with and without sewage
- Material (material):
PP
- (nennweite):
