Pumping station Aquapump XL

Tronic, STZ 3700-S1, AX

8743016
8743016

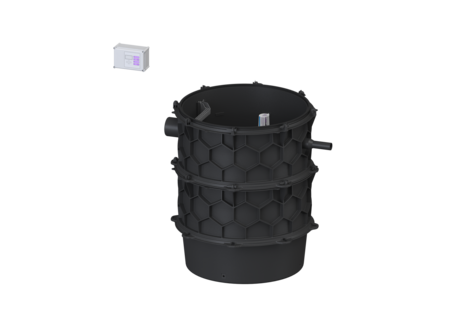

KESSEL Pumping station Aquapump XL, Tronic, wastewater with sewage, underground installation, pump control by Control unit, with a submersible STZ 3700 pump, operating mode S1, level measurement hydrostatic

  • Maximum safety
  • Flexible installation
  • Suitable for potentially explosive atmospheres
Item no. 8743016
GTIN 4026092075708
Price group 60

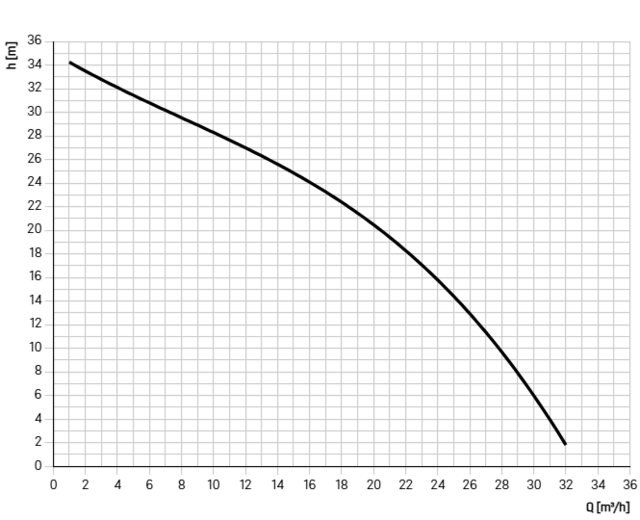

Pumping station Aquapump XL Tronic, STZ 3700-S1, AX
The pumping station for wastewater with and without sewage is equipped with one or two submersible pumps, a backflow preventer and a shut-off valve for the pressure pipe. The collection tank made of permanently resistant polymer (PE) has an open pump tank (wet installation) with universal connection options. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact. Alternatively, alarm and collective fault messages can be output via a GSM interface. The KESSEL modular system provides different engineering chamber options as accessories for the further layout. Stainless steel pump removal chain available as accessory. Art. no. 680 528 = length 2 m 680 529 = length 3 m 680 530 = length 4 m 680 531 = length 5 m Variant Note on installation depth: in combination with a chamber module Type of system: Single unit Shut-off valve: Shut-off valve made of polymer Passage seal for conduit pipe (DN): 100 Access steps: yes Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Tronic Dimensions Net weight: 168 kg Gross weight: 191 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1240 mm Width: 1240 mm Height: 1416 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 1550 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Distance from centre of outlet pipe to tank bottom: 1134 mm Distance pipe bottom inlet to tank bottom: 1054 mm Distance from centre of inlet pipe to tank bottom: 1134 mm Distance from inlet pipe invert to top of tank: 330 mm Inlet max. scoring (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Pumping volume: 310 l Pumping device Pump: STZ 3700 Number of pumps: 1 Weight, pump: 44 kg Connection type: Direct connection Rated current: 6,4 A Protection class: I Insulation class: H Cos phi - power factor: 0,82 Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 28 m³/h Max. pumping height: 35 m Speed: 2900 U/min Power P1: 3,7 kW Power P2: 3,1 kW Operating mode: S1 Type of pump connection cable: H07RN8-F 6G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 10 m Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
  Title Item no.
8740002 Chamber module LW 1000 floor slab Access LW 800, 411-660 mm, Class K 3 8740002 Show
8740003 Chamber module LW 1000 floor slab Access LW 800, 668-917 mm, Class K 3 8740003 Show
8740004 Chamber module LW 1000 floor slab Access LW 800, 396-645 mm, Class A 15 8740004 Show
8740005 Chamber module LW 1000 floor slab Access LW 800, 653-902 mm, Class L 15 8740005 Show
8740008 Chamber module LW 1000 floor slab Access LW 800, 661-910 mm, Class K 3 8740008 Show
8740009 Chamber module LW 1000 floor slab Access LW 800, 918-1167 mm, Class K 3 8740009 Show
8740010 Chamber module LW 1000 floor slab Access LW 800, 646-895 mm, Class A 15 8740010 Show
8740011 Chamber module LW 1000 floor slab Access LW 800, 903-1152 mm, Class L 15 8740011 Show
8740014 Chamber module LW 1000 floor slab Access LW 800, 911-1160 mm, Class K 3 8740014 Show
8740015 Chamber module LW 1000 floor slab Access LW 800, 1168-1417 mm, Class K 3 8740015 Show
8740016 Chamber module LW 1000 floor slab Access LW 800, 896-1145 mm, Class A 15 8740016 Show
8740017 Chamber module LW 1000 floor slab Access LW 800, 1153-1402 mm, Class L 15 8740017 Show
8740018 Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class A/B 8740018 Show
8740019 Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class D 8740019 Show
8740020 Chamber module LW 1000 floor slab Access LW 800, 1161-1410 mm, Class K 3 8740020 Show
8740021 Chamber module LW 1000 floor slab Access LW 800, 1418-1667 mm, Class K 3 8740021 Show
8740022 Chamber module LW 1000 floor slab Access LW 800, 1146-1395 mm, Class A 15 8740022 Show
8740023 Chamber module LW 1000 floor slab Access LW 800, 1403-1652 mm, Class L 15 8740023 Show
8740024 Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class A/B 8740024 Show
8740025 Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class D 8740025 Show
8740026 Chamber module LW 1000 floor slab Access LW 800, 1411-1660 mm, Class K 3 8740026 Show
8740027 Chamber module LW 1000 floor slab Access LW 800, 1668-1917 mm, Class K 3 8740027 Show
8740028 Chamber module LW 1000 floor slab Access LW 800, 1396-1645 mm, Class A 15 8740028 Show
8740029 Chamber module LW 1000 floor slab Access LW 800, 1653-1902 mm, Class L 15 8740029 Show
8740030 Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class A/B 8740030 Show
8740031 Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class D 8740031 Show
8740032 Chamber module LW 1000 floor slab Access LW 800, 1661-1910 mm, Class K 3 8740032 Show
8740034 Chamber module LW 1000 floor slab Access LW 800, 1646-1895 mm, Class A 15 8740034 Show
8740036 Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class A/B 8740036 Show
8740037 Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class D 8740037 Show
8740038 Chamber module LW 1000 floor slab Access LW 800, 1911-2160 mm, Class K 3 8740038 Show
8740040 Chamber module LW 1000 floor slab Access LW 800, 1896-2145 mm, Class A 15 8740040 Show
8740042 Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class A/B 8740042 Show
8740043 Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class D 8740043 Show
8740044 Chamber module LW 1000 floor slab Access LW 800, 2161-2410 mm, Class K 3 8740044 Show
8740046 Chamber module LW 1000 floor slab Access LW 800, 2146-2395 mm, Class A 15 8740046 Show
8740048 Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class A/B 8740048 Show
8740049 Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class D 8740049 Show
8740050 Chamber module LW 1000 floor slab Access LW 800, 2411-2660 mm, Class K 3 8740050 Show
8740052 Chamber module LW 1000 floor slab Access LW 800, 2396-2645 mm, Class A 15 8740052 Show
8740054 Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class A/B 8740054 Show
8740055 Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class D 8740055 Show
8740056 Chamber module LW 1000 floor slab Access LW 800, 2661-2910 mm, Class K 3 8740056 Show
8740058 Chamber module LW 1000 floor slab Access LW 800, 2646-2895 mm, Class A 15 8740058 Show
8740060 Chamber module LW 1000 floor slab Access LW 600, 2880-3129 mm, Class A/B 8740060 Show
8740061 Chamber module LW 1000 floor slab Access LW 600, 2880-3129 mm, Class D 8740061 Show
8740062 Chamber module LW 1000 floor slab Access LW 800, 2911-3160 mm, Class K 3 8740062 Show
8740064 Chamber module LW 1000 floor slab Access LW 800, 2896-3145 mm, Class A 15 8740064 Show
8740066 Chamber module LW 1000 floor slab Access LW 600, 3130-3379 mm, Class A/B 8740066 Show
8740067 Chamber module LW 1000 floor slab Access LW 600, 3130-3379 mm, Class D 8740067 Show
8740068 Chamber module LW 1000 floor slab Access LW 800, 3161-3410 mm, Class K 3 8740068 Show
8740070 Chamber module LW 1000 floor slab Access LW 800, 3146-3395 mm, Class A 15 8740070 Show
8740072 Chamber module LW 1000 floor slab Access LW 600, 3380-3629 mm, Class A/B 8740072 Show
8740073 Chamber module LW 1000 floor slab Access LW 600, 3380-3629 mm, Class D 8740073 Show
8740074 Chamber module LW 1000 floor slab Access LW 800, 3411-3660 mm, Class K 3 8740074 Show
8740076 Chamber module LW 1000 floor slab Access LW 800, 3396-3645 mm, Class A 15 8740076 Show
8740078 Chamber module LW 1000 floor slab Access LW 600, 3630-3879 mm, Class A/B 8740078 Show
8740079 Chamber module LW 1000 floor slab Access LW 600, 3630-3879 mm, Class D 8740079 Show
8740080 Chamber module LW 1000 floor slab Access LW 800, 3661-3910 mm, Class K 3 8740080 Show
8740082 Chamber module LW 1000 floor slab Access LW 800, 3646-3895 mm, Class A 15 8740082 Show
8740084 Chamber module LW 1000 floor slab Access LW 600, 3880-4129 mm, Class A/B 8740084 Show
8740085 Chamber module LW 1000 floor slab Access LW 600, 3880-4129 mm, Class D 8740085 Show
8740086 Chamber module LW 1000 floor slab Access LW 800, 3911-4160 mm, Class K 3 8740086 Show
8740088 Chamber module LW 1000 floor slab Access LW 800, 3896-4145 mm, Class A 15 8740088 Show
8740122 Chamber module LW 1000 floor slab Access LW 800, 375-624 mm, Class K 3 8740122 Show
8740123 Chamber module LW 1000 floor slab Access LW 800, 625-874 mm, Class K 3 8740123 Show
8740124 Chamber module LW 1000 floor slab Access LW 800, 875-1124 mm, Class K 3 8740124 Show
8740125 Chamber module LW 1000 floor slab Access LW 800, 1125-1374 mm, Class K 3 8740125 Show
8740126 Chamber module LW 1000 floor slab Access LW 800, 1375-1624 mm, Class K 3 8740126 Show
8740127 Chamber module LW 1000 floor slab Access LW 800, 1625-1874 mm, Class K 3 8740127 Show
8740128 Chamber module LW 1000 floor slab Access LW 800, 1875-2124 mm, Class K 3 8740128 Show
8740129 Chamber module LW 1000 floor slab Access LW 800, 2125-2374 mm, Class K 3 8740129 Show
8740130 Chamber module LW 1000 floor slab Access LW 800, 2375-2624 mm, Class K 3 8740130 Show
8740131 Chamber module LW 1000 floor slab Access LW 800, 2625-2874 mm, Class K 3 8740131 Show
8740132 Chamber module LW 1000 floor slab Access LW 800, 2875-3124 mm, Class K 3 8740132 Show
8740133 Chamber module LW 1000 floor slab Access LW 800, 3125-3374 mm, Class K 3 8740133 Show
8740134 Chamber module LW 1000 floor slab Access LW 800, 3375-3624 mm, Class K 3 8740134 Show
8740135 Chamber module LW 1000 floor slab Access LW 800, 3625-3874 mm, Class K 3 8740135 Show
8740136 Chamber module LW 1000 floor slab Access LW 800, 3875-4124 mm, Class K 3 8740136 Show
8740141 Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class B 8740141 Show
8740142 Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class B 8740142 Show
8740143 Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class B 8740143 Show
8740158 Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class D 8740158 Show
8740159 Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class D 8740159 Show
8740160 Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class D 8740160 Show
  Title Item no.
  Title Item no.
20222 Basic alarm unit with electronic probe 20222 Show
20223 Basic alarm unit with optical probe 20223 Show
28048 Compressor set for air bubbling 28048 Show
28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
28799 Connection box for level sensor extension 28799 Show
680370 Intermediate section 250 mm, for chamber module LW 1000 680370 Show
680371 Intermediate section 500 mm, for chamber module LW 1000 680371 Show
80888 Spare part set, optical probe 5 m cable 80888 Show
80889 Cable accessories Extension for probe 80889 Show
80891 Cable accessories Extension for pump 80891 Show
97713 Installation set Thermostat, Hygrostat 97713 Show
97714 Outdoor Cabinet W: 590 mm,for installation control units 97714 Show
97715 Warning beacon for outdoor cabinet 97715 Show
97716 Outdoor Cabinet W: 460 mm, for installation control unit 97716 Show
Outdoor cabinet W: 785 mm,for installation control units 97723 Show
97724 Outdoor Cabinet W: 1115mm,for installation control units 97724 Show
  Title Item no.
  • ATEX (atex): yes
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): underground installation
  • Alarm sensor (alarmgeber): Level sensor
  • Pump (pumpe): STZ 3700
  • (einbautiefe):
  • Impeller type (laufrad_typ): Macerator
  • Operating voltage (betriebsspannung): 400  V
