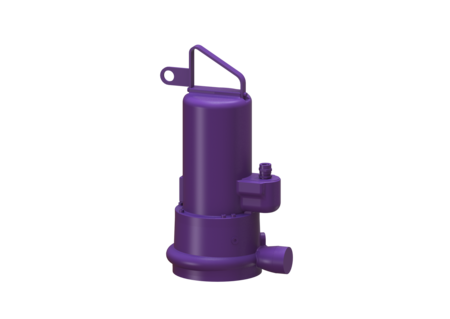

Replacement pump Aquadive STZ3700

without float switch, 10 m, ATEX

Replacement pump, Aquadive, STZ 3700, ATEX, without floater, for pumping station, wet installation

Item no. 680606
GTIN 4026092078501
Price group 90

    Replacement pump Aquadive STZ3700 without float switch, 10 m, ATEX
    Replacement pump, Aquadive, STZ 3700, ATEX, without floater, for pumping station, wet installation Variant Rim width: Control unit General characteristics Cable length: 10 m Dimensions Net weight: 43 kg Gross weight: 46 kg Packaging dimension: width: 370 mm Packaging dimension: height: 610 mm Packaging dimension: length: 260 mm Pumping device Pump control: STZ 3700 Weight: 44 kg Connection type: Direct connection Rated current: 6,4 A Length of mains cable for pump: 10 m Self-diagnosis system (SDS): I Insulation class: H Cos phi - power factor: 0,82 Protection class control unit: IP 68 DSC: controlled via control unit Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 35 m Speed: 2900 U/min Power P1: 3,7 kW Power P2: 3,1 kW Operating mode: S1 Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN8-F 6G 1.5 mm² Impeller type: Macerator Control Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection
      Title Item no.
      Title Item no.
      Title Item no.
    Replacement chain pumping statio. Stainless steel, length 2 m 680528 Show
    Replacement chain pumping statio. Stainless steel, length 3 m 680529 Show
    Chain for KESSEL pumpstations 4m 680530 Show
    Replacement chain, pumping stat. Stainless steel, length 5 m 680531 Show
      Title Item no.
    • ATEX (atex): yes
