Pumping station Aquapump XL

Duo, GTF 600-S1, Subm. pressure switch

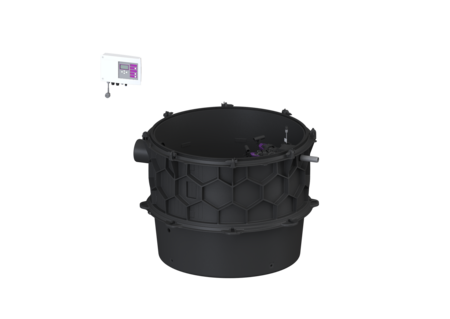

KESSEL Pumping station Aquapump XL, Duo, wastewater without sewage, underground installation, pump control by Control unit, with 2 submersible GTF 600 pumps, operating mode S1, level measurement pneumatic

  • Maximum safety
  • Flexible installation
  • Also handles large quantities of wastewater
Item no. 8743007
GTIN 4026092075630
Price group 60

Pumping station Aquapump XL Duo, GTF 600-S1, Subm. pressure switch
The pumping station without sewage wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank with universal connection options. Quick-release closures enable the integrated components to be removed easily. The KESSEL modular system provides different engineering chamber options as accessories for the further layout. Variant Note on installation depth: in combination with a chamber module Type of system: duo pump Shut-off valve: without shut-off valve Passage seal for conduit pipe (DN): 100 Access steps: yes Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Duo Dimensions Net weight: 97 kg Gross weight: 120 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1330 mm Width: 1240 mm Height: 914 mm Packaging dimension: length: 1300 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 1050 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Distance from centre of outlet pipe to tank bottom: 780 mm Distance pipe bottom inlet to tank bottom: 607 mm Distance from centre of inlet pipe to tank bottom: 687 mm Distance from inlet pipe invert to top of tank: 281 mm Inlet max. scoring (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Pumping volume: 90 l Pumping device Pump: GTF 600 Number of pumps: 2 Weight, pump: 6 kg Connection type: coded plug Rated current: 2,7 A Length of mains cable for pump: 10 m Protection class: I Insulation class: F Cos phi - power factor: 0,91 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 12 m³/h Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: Submersible pressure switch Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 2,7 A
