Pumping station Aquapump XL

Duo, GTF 1600-S1

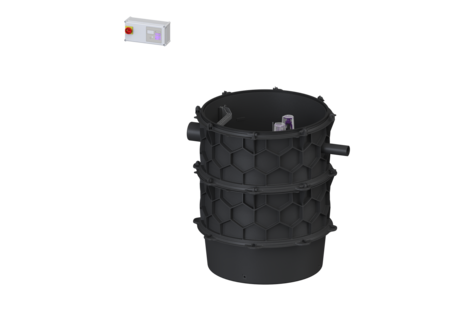

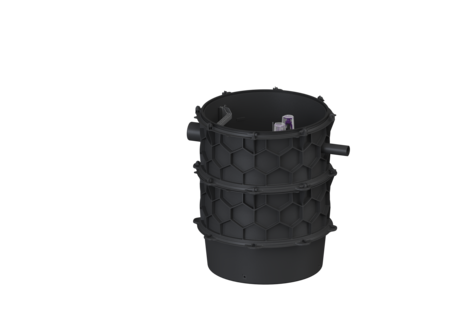

KESSEL Pumping station Aquapump XL, Duo, wastewater for wastewater with or without sewage (in installation situations without ATEX requirements), underground installation, pump control by Control unit, with 2 submersible GTF 1600 pumps, operating mode S1

  • Maximum safety
  • Flexible installation
  • Also handles large quantities of wastewater
Item no. 8743023
GTIN 4026092075777
Price group 60

Pumping station Aquapump XL Duo, GTF 1600-S1
The pumping station is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank with universal connection options. Quick-release closures enable the integrated components to be removed easily. The KESSEL modular system provides different engineering chamber options as accessories for the further layout. Stainless steel pump removal chains available as accessory for each installation depth - Article number: 680528 = Length 2 m 680529 = Length 3 m 680530 = Length 4 m 680531 = Length 5 m Variant Note on installation depth: in combination with a chamber module Type of system: duo pump Shut-off valve: Shut-off valve made of polymer Passage seal for conduit pipe (DN): 100 Access steps: yes Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with or without sewage (in installation situations without ATEX requirements) Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Duo ATEX: no Dimensions Net weight: 224 kg Gross weight: 248 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1370 mm Width: 1240 mm Height: 1416 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 1550 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Distance from centre of outlet pipe to tank bottom: 1134 mm Distance pipe bottom inlet to tank bottom: 1054 mm Distance from centre of inlet pipe to tank bottom: 1134 mm Distance from inlet pipe invert to top of tank: 330 mm Inlet max. scoring (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Pumping volume: 340 l Pumping device Pump: GTF 1600 Number of pumps: 2 Weight, pump: 27 kg Connection type: Direct connection Rated current: 2,9 A Protection class: I Insulation class: H Cos phi - power factor: 0,72 Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 49 m³/h Max. pumping height: 9,3 m Speed: 2900 U/min Power P1: 1,6 kW Power P2: 1,2 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 2,9 A
