Pumping station Aquapump XL

Duo, GTF1400-S1, 400V

8743048
8743048
PDF product data sheet

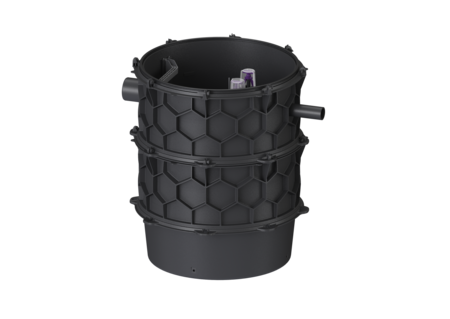

KESSEL Pumping station Aquapump XL, Duo, wastewater for wastewater with and without sewage, floor slab installation, pump control by, with 2 submersible GTF 1400 pumps, operating mode S1

  • Maximum safety
  • Flexible installation
  • Also handles large quantities of wastewater
Item no. 8743048
Price group 60

Pumping station Aquapump XL Duo, GTF1400-S1, 400V
The pumping station is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank with universal connection options. Quick-release closures enable the integrated components to be removed easily. The KESSEL modular system provides different engineering chamber options as accessories for the further layout. Stainless steel pump removal chains available as accessory for each installation depth - Article number: 680528 = Length 2 m 680529 = Length 3 m 680530 = Length 4 m 680531 = Length 5 m Variant Type of system: duo pump Passage seal for conduit pipe (DN): 63 Passage seal for ventilation pipe (DN): 50 Installation: Wet installation Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with and without sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Duo Dimensions Net weight: 192 kg Gross weight: 213 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1300 mm Width: 1300 mm Height: 1416 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 Number of inlets: 1 Pumping volume: 350 l Pumping device Pump: GTF 1400 Number of pumps: 2 Weight, pump: 22 kg Connection type: Direct connection Protection class: I Insulation class: H Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 31 m³/h Max. pumping height: 10,5 m Speed: 2900 U/min Power P1: 1,5 kW Power P2: 1,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 4G 1.5 mm² mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Rated current: 6,5 A Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Type of fuse required (control unit): C 16 A
