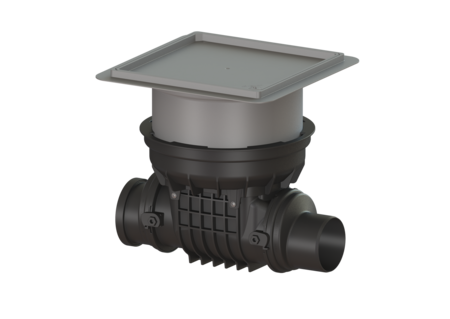

Backwater valve Staufix

DN 125, Floor slab, tileable, Type 2

730125.10X
730125.10X

KESSEL Backwater valve Staufix, nominal size (DN) 125, wastewater without sewage, locking Lock & Lift, floor slab installation, type of cover tileable cover plate, no

  • Optional rat protection flap for additional safety
  • Flexible installation, various covers available for floor slab installation
  • Alternatively available as a module set
Item no. 730125.10X
GTIN 4026092076446
Price group 10

Backwater valve Staufix DN 125, Floor slab, tileable, Type 2
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve. Variant Stainless steel flap as rat protection: no Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 125 Outer diameter (OD): 125 mm Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Backwater protection: Type 2 Dimensions Net weight: 7,8 kg Gross weight: 10,4 kg Groundwater resistant from lower edge of base section: 3 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 8 mm Installation depth: 341 - 464 mm Type of height adjustability: vertically adjustable upper section Length: 511 mm Width: 444 mm Packaging dimension: length: 586 mm Packaging dimension: width: 486 mm Packaging dimension: height: 496 mm Coverage features Type of cover: tileable cover plate Cover material: Polymer Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: K 3 (EN 1253-1) Tightness: surface water resistant Max. flooring height: 16 mm
  Title Item no.
  Title Item no.
  Title Item no.
72222 Remote signal generator optical/acoustic. signal in backwater 72222 Show
72223 Radio receiver as switched socket 72223 Show
72224 StaufixContr. lockable cover DN 90-100 72224 Show
72225 StaufixContr. lockable cover DN125-200 72225 Show
830070 Extension section deeper installation, with flange 830070 Show
830073 Extension section deeper installation,Flange/mating flange 830073 Show
830075 Extension section Floor slab, for waterproof concrete 830075 Show
  Title Item no.
680665 Battery 3 V for control unit 680665 Show
686113 Seal Cover seal for Staufix, DN 125-200 686113 Show
686114 Seal for cover plate, System 330 mm 686114 Show
686115 Seal Lip seal, System 330 mm 686115 Show
70214 Testing funnel with seal 70214 Show
70232 Backwater flap DN 125/150 70232 Show
70242 Slide-in flap housing DN 125/150, with seal 70242 Show
72230 Lockable cover DN125-200, with emergency closure 72230 Show
830050 Cover plate surface water resistant, black 366x366mm 830050 Show
83082 Spigot DN 125, with seal 83082 Show
83086 Socket DN 125, with seal 83086 Show
Manuals
CAD Data
Test Reports and Certificates
Declaration of Performance
  • Nominal size (DN) (nennweite): 125
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Backwater protection (rueckstauschutz): Type 2
  • Stainless steel flap as rat protection (edelstahlklappe_rattenschutz): no
  • Length (laenge): 511  mm
  • Width (breite): 444  mm
