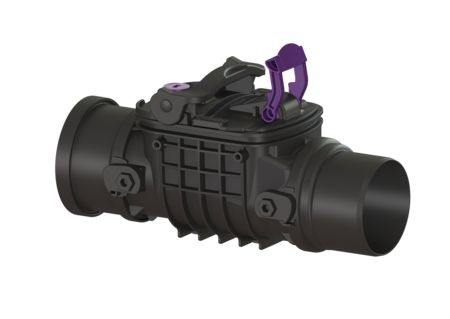

Backwater valve Staufix

DN 100, exposed, Type 2 R

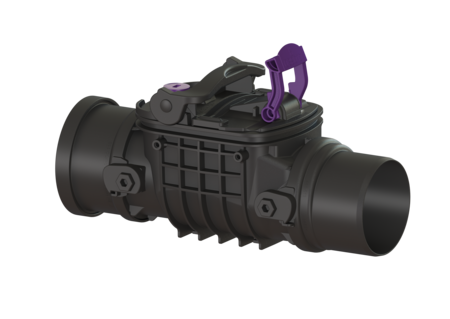

730100R

KESSEL Backwater valve Staufix, nominal size (DN) 100, wastewater without sewage, cover locking One-handed closure, exposed drainage pipe, type of cover Lockable cover, yes

  • Optional rat protection flap for additional safety
  • Flexible installation, various covers available for floor slab installation
  • Alternatively available as a module set
Item no. 730100R
GTIN 4026092076408
Price group 10

Backwater valve Staufix DN 100, exposed, Type 2 R
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve. Variant Stainless steel flap as rat protection: yes Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 2 Dimensions Net weight: 1,4 kg Gross weight: 4 kg Vertical drop between inlet and outlet: 8 mm Length: 389 mm Width: 167 mm Height: 230 mm Packaging dimension: length: 386 mm Packaging dimension: width: 163 mm Packaging dimension: height: 198 mm Coverage features Type of cover: Lockable cover Cover locking: One-handed closure
  Title Item no.
  Title Item no.
  Title Item no.
72222 Remote signal generator optical/acoustic. signal in backwater 72222 Show
72223 Radio receiver as switched socket 72223 Show
72224 StaufixContr. lockable cover DN 90-100 72224 Show
72225 StaufixContr. lockable cover DN125-200 72225 Show
  Title Item no.
680665 Battery 3 V for control unit 680665 Show
686112 Seal Cover seal for Staufix DN 90-110 686112 Show
70214 Testing funnel with seal 70214 Show
70231 Backwater flap DN 100 70231 Show
70233 Backwater flap DN 100, with stainless steel attachment 70233 Show
70241 Slide-in flap housing DN 100, with seal 70241 Show
72229 Lockable cover DN 90-100, with emergency closure 72229 Show
830100 Spigot DN 100 830100 Show
830101 Socket DN 100 830101 Show
  • Nominal size (DN) (nennweite): 100
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Length (laenge): 389  mm
  • Width (breite): 167  mm
  • Backwater protection (rueckstauschutz): Type 2
  • Stainless steel flap as rat protection (edelstahlklappe_rattenschutz): yes
