Backwater valve Staufix
DN 90, Floor slab, black, Type 2 R
KESSEL Backwater valve Staufix, nominal size (DN) 90, wastewater without sewage, locking Lock & Lift, floor slab installation, type of cover Cover plate, yes
- Optional rat protection flap for additional safety
- Flexible installation, various covers available for floor slab installation
- Alternatively available as a module set
Item no. | 730090.10SR |
---|---|
GTIN | 4026092076316 |
Price group | 10 |

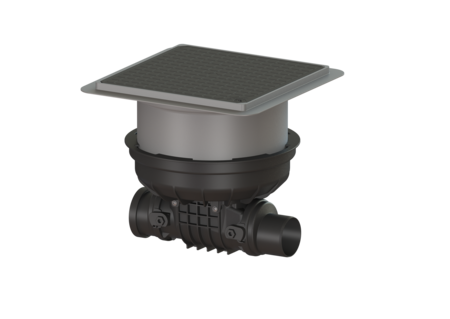

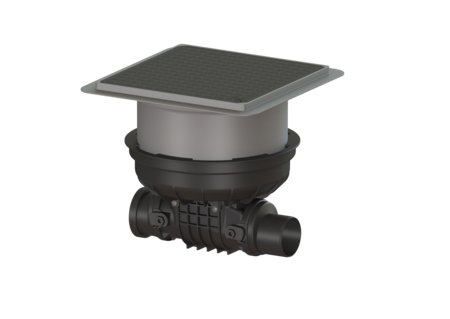

Backwater valve Staufix DN 90, Floor slab, black, Type 2 R
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve. Variant Stainless steel flap as rat protection: yes Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 90 Outer diameter (OD): 90 mm Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Backwater protection: Type 2 Dimensions Net weight: 6,5 kg Gross weight: 9,1 kg Groundwater resistant from lower edge of base section: 3 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 8 mm Installation depth: 287 - 410 mm Type of height adjustability: vertically adjustable upper section Length: 444 mm Width: 444 mm Packaging dimension: length: 586 mm Packaging dimension: width: 486 mm Packaging dimension: height: 496 mm Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: L 15 (EN 1253-1) Tightness: surface water resistant
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Remote signal generator | 72222 | Show | |
Radio receiver as switched socket | 72223 | Show | |
StaufixContr. lockable cover DN 90-100 | 72224 | Show | |
StaufixContr. lockable cover DN125-200 | 72225 | Show | |
Extension section deeper installation, with flange | 830070 | Show | |
Extension section deeper installation,Flange/mating flange | 830073 | Show | |
Extension section Floor slab, for waterproof concrete | 830075 | Show |
Title | Item no. | ||
---|---|---|---|
Battery 3 V for control unit | 680665 | Show | |
Seal Cover seal for Staufix DN 90-110 | 686112 | Show | |
Seal for cover plate, System 330 mm | 686114 | Show | |
Seal Lip seal, System 330 mm | 686115 | Show | |
Testing funnel with seal | 70214 | Show | |
Backwater flap DN 100 | 70231 | Show | |
Backwater flap | 70233 | Show | |
Slide-in flap housing DN 100, with seal | 70241 | Show | |
Lockable cover DN 90-100, with emergency closure | 72229 | Show | |
Cover plate surface water resistant, tileable | 830052 | Show | |
Spigot DN 90 | 83090 | Show | |
Socket DN 90 | 83091 | Show |
Manuals | |
---|---|
CAD Data | |
Declaration of Performance |
- Nominal size (DN) (nennweite): 90
- Cover material (abdeckung_material): Polymer
- Installation situation (einbausituation): floor slab installation
- CE marking (ce_kennzeichnung): yes
- Type of wastewater (abwasserart_de): without sewage
- Backwater protection (rueckstauschutz): Type 2
- Stainless steel flap as rat protection (edelstahlklappe_rattenschutz): yes
- Length (laenge): 444 mm
- Width (breite): 444 mm
