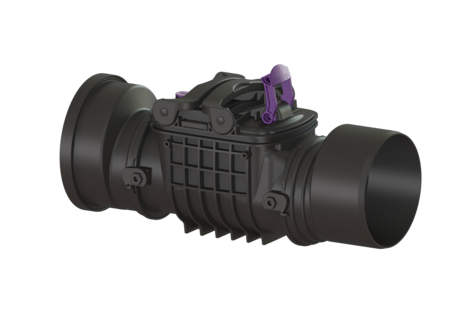

Backwater valve Staufix
DN 200, exposed, Type 2
KESSEL Backwater valve Staufix, nominal size (DN) 200, wastewater for wastewater with or without sewage (ÖNORM Austria), cover locking One-handed closure, exposed drainage pipe, type of cover Lockable cover, no
- Optional rat protection flap for additional safety
- Flexible installation, various covers available for floor slab installation
- Alternatively available as a module set
| Item no. | 730200 |
|---|---|
| GTIN | 4026092076538 |
| Price group | 10 |
Backwater valve Staufix DN 200, exposed, Type 2
The backwater valve for wastewater with and without sewage (ÖNORM Austria) is equipped with two mechanical flaps that close automatically in the event of backwater. One flap also serves as a manually lockable emergency closure. Thanks to the modular KESSEL system, existing systems can be easily converted to the StaufixControl backwater valve. Variant Stainless steel flap as rat protection: no Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 200 Outer diameter (OD): 200 mm Note on nominal size: Hydraulics correspond to DN 150 Type of wastewater: for wastewater with or without sewage (ÖNORM Austria) Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 2 Dimensions Net weight: 3,75 kg Gross weight: 4,66 kg Vertical drop between inlet and outlet: 8 mm Length: 586 mm Width: 233 mm Height: 306 mm Packaging dimension: length: 524 mm Packaging dimension: width: 222 mm Packaging dimension: height: 26 mm Coverage features Type of cover: Lockable cover Cover locking: One-handed closure
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Battery 3 V for control unit | 680665 | Show |
 | Seal Cover seal for Staufix, DN 125-200 | 686113 | Show |
 | Testing funnel with seal | 70214 | Show |
 | Backwater flap DN 125/150 | 70232 | Show |
 | Slide-in flap housing DN 125/150, with seal | 70242 | Show |
 | Lockable cover DN125-200, with emergency closure | 72230 | Show |
 | Spigot DN 200, with seal | 83084 | Show |
 | Socket DN 200, with seal | 83088 | Show |
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 200
- Installation situation (einbausituation):
exposed drainage pipe
- CE marking (ce_kennzeichnung):
yes
- Length (laenge): 586 mm
- Width (breite): 233 mm
- Backwater protection (rueckstauschutz): Type 2
- Stainless steel flap as rat protection (edelstahlklappe_rattenschutz): no
