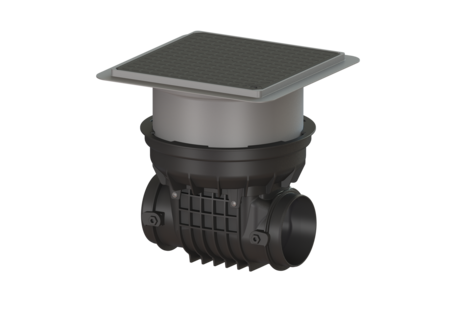

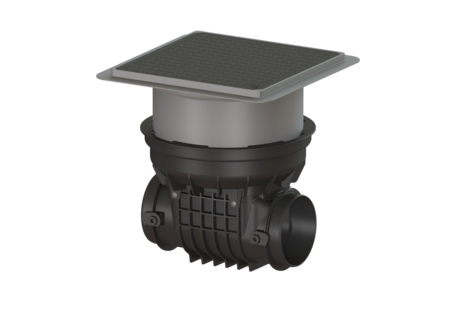

Staufix drain body type 2

DN 125-200, Floor slab, black

730000.15S
730000.15S

KESSEL Staufix drain body type 2, nominal size (DN) 125-200, tightness surface water resistant, floor slab installation, type of cover Cover plate, no

  • Easy conversion to StaufixControl
  • Flexible installation
  • Various covers available for floor slab installation
Item no. 730000.15S
GTIN 4026092076279
Price group 10

Staufix drain body type 2 DN 125-200, Floor slab, black
The Staufix drain body for faecal-free wastewater is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Spigot and socket in the required dimension are available as an option. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve. Variant Stainless steel flap as rat protection: no Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 125-200 Note on nominal size: Hydraulics correspond to DN 150 Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Backwater protection: Type 2 Dimensions Net weight: 7,6 kg Gross weight: 10,2 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 8 mm Installation depth: 341 - 464 mm Type of height adjustability: vertically adjustable upper section Length: 444 mm Width: 444 mm Packaging dimension: length: 586 mm Packaging dimension: width: 486 mm Packaging dimension: height: 496 mm Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 368 mm Height of cover: 43 mm Length of cover: 368 mm Locking: locked Load class: L 15 (EN 1253-1) Tightness: surface water resistant
  Title Item no.
83082 Spigot DN 125, with seal 83082 Show
83083 Spigot DN 150, with seal 83083 Show
83084 Spigot DN 200, with seal 83084 Show
83086 Socket DN 125, with seal 83086 Show
83087 Socket DN 150, with seal 83087 Show
83088 Socket DN 200, with seal 83088 Show
  Title Item no.
  Title Item no.
830070 Extension section deeper installation, with flange 830070 Show
830073 Extension section deeper installation,Flange/mating flange 830073 Show
830075 Extension section Floor slab, for waterproof concrete 830075 Show
  Title Item no.
680665 Battery 3 V for control unit 680665 Show
686113 Seal Cover seal for Staufix, DN 125-200 686113 Show
686114 Seal for cover plate, System 330 mm 686114 Show
686115 Seal Lip seal, System 330 mm 686115 Show
70214 Testing funnel with seal 70214 Show
70232 Backwater flap DN 125/150 70232 Show
70242 Slide-in flap housing DN 125/150, with seal 70242 Show
72230 Lockable cover DN125-200, with emergency closure 72230 Show
830052 Cover plate surface water resistant, tileable 830052 Show
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Nominal size (DN) (nennweite): 125-200
  • Length (laenge): 444  mm
  • Width (breite): 444  mm
  • Backwater protection (rueckstauschutz): Type 2
  • Stainless steel flap as rat protection (edelstahlklappe_rattenschutz): no
