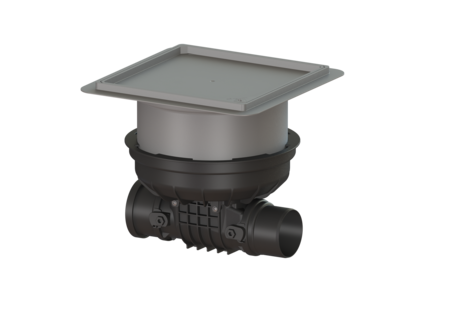

Backwater valve Staufix

DN 100, Floor slab, tileable, Type 2 R

730100.10XR
730100.10XR

KESSEL Backwater valve Staufix, nominal size (DN) 100, wastewater without sewage, locking Lock & Lift, floor slab installation, type of cover tileable cover plate, yes

  • Optional rat protection flap for additional safety
  • Flexible installation, various covers available for floor slab installation
  • Alternatively available as a module set
Item no. 730100.10XR
GTIN 4026092076392
Price group 10

Backwater valve Staufix DN 100, Floor slab, tileable, Type 2 R
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve. Variant Stainless steel flap as rat protection: yes Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Backwater protection: Type 2 Dimensions Net weight: 6 kg Gross weight: 8,6 kg Groundwater resistant from lower edge of base section: 3 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 8 mm Installation depth: 287 - 410 mm Type of height adjustability: vertically adjustable upper section Length: 444 mm Width: 444 mm Packaging dimension: length: 586 mm Packaging dimension: width: 486 mm Packaging dimension: height: 496 mm Coverage features Type of cover: tileable cover plate Cover material: Polymer Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: K 3 (EN 1253-1) Tightness: surface water resistant Max. flooring height: 16 mm
  Title Item no.
  Title Item no.
  Title Item no.
72222 Remote signal generator optical/acoustic. signal in backwater 72222 Show
72223 Radio receiver as switched socket 72223 Show
72224 StaufixContr. lockable cover DN 90-100 72224 Show
72225 StaufixContr. lockable cover DN125-200 72225 Show
830070 Extension section deeper installation, with flange 830070 Show
830073 Extension section deeper installation,Flange/mating flange 830073 Show
830075 Extension section Floor slab, for waterproof concrete 830075 Show
  Title Item no.
680665 Battery 3 V for control unit 680665 Show
686112 Seal Cover seal for Staufix DN 90-110 686112 Show
686114 Seal for cover plate, System 330 mm 686114 Show
686115 Seal Lip seal, System 330 mm 686115 Show
70214 Testing funnel with seal 70214 Show
70231 Backwater flap DN 100 70231 Show
70233 Backwater flap DN 100, with stainless steel attachment 70233 Show
70241 Slide-in flap housing DN 100, with seal 70241 Show
72229 Lockable cover DN 90-100, with emergency closure 72229 Show
830050 Cover plate surface water resistant, black 366x366mm 830050 Show
830100 Spigot DN 100 830100 Show
830101 Socket DN 100 830101 Show
  • Nominal size (DN) (nennweite): 100
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Backwater protection (rueckstauschutz): Type 2
  • Stainless steel flap as rat protection (edelstahlklappe_rattenschutz): yes
  • Length (laenge): 444  mm
  • Width (breite): 444  mm
