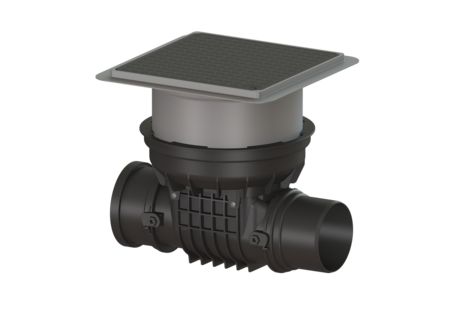

Backwater valve Staufix

DN 150, Floor slab, black, Type 2 R

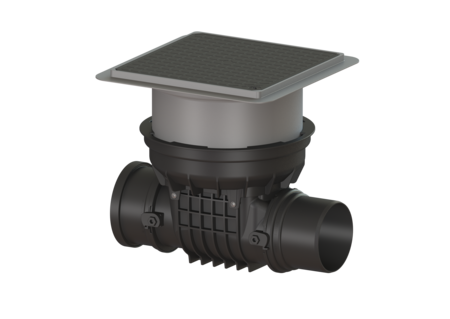

730150.10SR
730150.10SR

KESSEL Backwater valve Staufix, nominal size (DN) 150, wastewater without sewage, locking Lock & Lift, floor slab installation, type of cover Cover plate, yes

  • Optional rat protection flap for additional safety
  • Flexible installation, various covers available for floor slab installation
  • Alternatively available as a module set
Item no. 730150.10SR
GTIN 4026092076491
Price group 10

Backwater valve Staufix DN 150, Floor slab, black, Type 2 R
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve. Variant Stainless steel flap as rat protection: yes Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 150 Outer diameter (OD): 160 mm Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Backwater protection: Type 2 Dimensions Net weight: 8,5 kg Gross weight: 11,1 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 8 mm Installation depth: 341 - 464 mm Type of height adjustability: vertically adjustable upper section Length: 523 mm Width: 444 mm Packaging dimension: length: 586 mm Packaging dimension: width: 486 mm Packaging dimension: height: 496 mm Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: L 15 (EN 1253-1) Tightness: surface water resistant
  Title Item no.
  Title Item no.
  Title Item no.
72222 Remote signal generator optical/acoustic. signal in backwater 72222 Show
72223 Radio receiver as switched socket 72223 Show
72224 StaufixContr. lockable cover DN 90-100 72224 Show
72225 StaufixContr. lockable cover DN125-200 72225 Show
830070 Extension section deeper installation, with flange 830070 Show
830073 Extension section deeper installation,Flange/mating flange 830073 Show
830075 Extension section Floor slab, for waterproof concrete 830075 Show
  Title Item no.
680665 Battery 3 V for control unit 680665 Show
686113 Seal Cover seal for Staufix, DN 125-200 686113 Show
686114 Seal for cover plate, System 330 mm 686114 Show
686115 Seal Lip seal, System 330 mm 686115 Show
70214 Testing funnel with seal 70214 Show
70232 Backwater flap DN 125/150 70232 Show
70234 Backwater flap DN 125/150, with stainl steel attachment 70234 Show
70242 Slide-in flap housing DN 125/150, with seal 70242 Show
72230 Lockable cover DN125-200, with emergency closure 72230 Show
830052 Cover plate surface water resistant, tileable 830052 Show
83083 Spigot DN 150, with seal 83083 Show
83087 Socket DN 150, with seal 83087 Show
  • Nominal size (DN) (nennweite): 150
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Backwater protection (rueckstauschutz): Type 2
  • Stainless steel flap as rat protection (edelstahlklappe_rattenschutz): yes
  • Length (laenge): 523  mm
  • Width (breite): 444  mm
