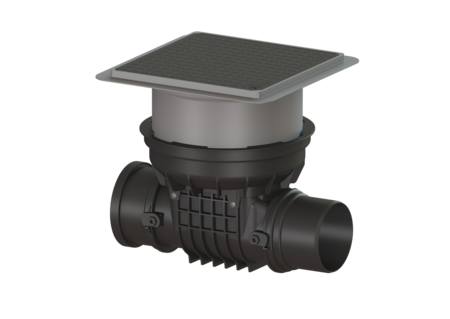

Backwater valve Staufix

DN 150, Floor slab, black, Type 1

KESSEL Backwater valve Staufix, wastewater without sewage, nominal size (DN) 150, floor slab installation, type of cover Cover plate, a mechanical backwater flap, outside diameter (OD) 160 mm, locking Lock & Lift

  • Simple conversion to Staufix Type 2 or StaufixControl
  • Flexible installation, various covers available for floor slab installation
  • Simple, toolless maintenance and cleaning

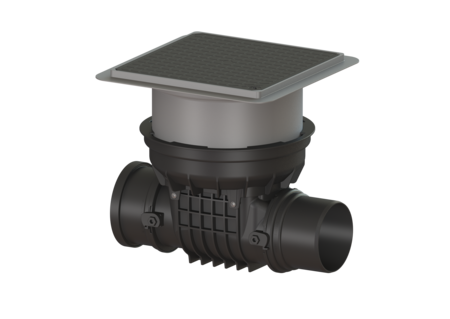

Item no. 720150.10S
GTIN 4026092076095
Price group 10

Backwater valve Staufix DN 150, Floor slab, black, Type 1
The backwater valve for wastewater without sewage is equipped with one mechanical flap which closes automatically in the event of backwater and also serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second flap or be converted to the StaufixControl backwater valve. Variant Emergency closure: yes Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 150 Outer diameter (OD): 160 mm Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Backwater protection: Type 1 Dimensions Net weight: 8,4 kg Gross weight: 11 kg Groundwater resistant from lower edge of base section: 3 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 8 mm Installation depth: 341 - 464 mm Vertical adjustment: vertically adjustable upper section Length: 523 mm Width: 444 mm Packaging dimension: length: 586 mm Packaging dimension: width: 486 mm Packaging dimension: height: 496 mm Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Cover locking: Lock & Lift Load class: L 15 (EN 1253-1) Tightness: surface water resistant
  Title Item no.
  Title Item no.
  Title Item no.
Extension section deeper installation, with flange 830070 Show
Extension section, flange & counterfl., 830073 Show
Extension section Floor slab, for waterproof concrete 830075 Show
  Title Item no.
Battery 3 V for control unit 680665 Show
Seal Cover seal for Staufix, DN 125-200 686113 Show
Seal for cover plate, System 330 mm 686114 Show
Seal Lip seal, System 330 mm 686115 Show
Staufix test funnel with seal 70214 Show
Polymer backwater flap Ø 125/160 70232 Show
Flap housing with gasket Ø 125/160 70242 Show
Lockable cover, DN125-200, emergency clo 72230 Show
Cover, watertight, tile-over 830052 Show
Staufix Premium Spigot DN 150 83083 Show
Staufix Premium Socket DN 150 83087 Show
  • Nominal size (DN) (nennweite): 150
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Type of cover (abdeckungsart): Cover plate
  • Length (laenge): 523  mm
  • Width (breite): 444  mm
  • Backwater protection (rueckstauschutz): Type 1
