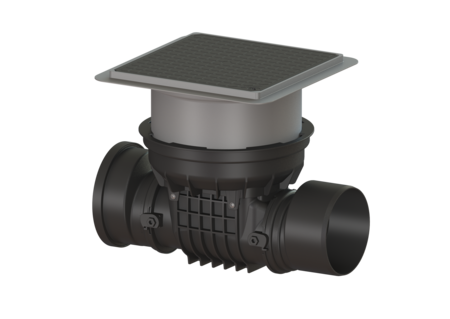

Backwater valve Staufix
DN 200, Floor slab, black, Type 1
KESSEL Backwater valve Staufix, wastewater without sewage, nominal size (DN) 200, floor slab installation, type of cover Cover plate, a mechanical backwater flap, outside diameter (OD) 200 mm, locking Lock & Lift
- Simple conversion to Staufix Type 2 or StaufixControl
- Flexible installation, various covers available for floor slab installation
- Simple, toolless maintenance and cleaning
Item no. | 720200.10S |
---|---|
GTIN | 4026092076125 |
Price group | 10 |
Backwater valve Staufix DN 200, Floor slab, black, Type 1
The backwater valve for wastewater without sewage is equipped with one mechanical flap which closes automatically in the event of backwater and also serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second flap or be converted to the StaufixControl backwater valve. Variant Emergency closure: yes Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 200 Outer diameter (OD): 200 mm Note on nominal size: Hydraulics correspond to DN 150 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Backwater protection: Type 1 Dimensions Net weight: 8,8 kg Gross weight: 11,4 kg Groundwater resistant from lower edge of base section: 3 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 8 mm Installation depth: 341 - 464 mm Type of height adjustability: vertically adjustable upper section Length: 586 mm Width: 444 mm Packaging dimension: length: 586 mm Packaging dimension: width: 486 mm Packaging dimension: height: 496 mm Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: L 15 (EN 1253-1) Tightness: surface water resistant
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Battery 3 V for control unit | 680665 | Show | |
Seal Cover seal for Staufix, DN 125-200 | 686113 | Show | |
Seal for cover plate, System 330 mm | 686114 | Show | |
Seal Lip seal, System 330 mm | 686115 | Show | |
Testing funnel with seal | 70214 | Show | |
Backwater flap DN 125/150 | 70232 | Show | |
Slide-in flap housing DN 125/150, with seal | 70242 | Show | |
Lockable cover DN125-200, with emergency closure | 72230 | Show | |
Cover plate surface water resistant, tileable | 830052 | Show | |
Spigot DN 200, with seal | 83084 | Show | |
Socket DN 200, with seal | 83088 | Show |
Manuals | |
---|---|
CAD Data | |
Test Reports and Certificates | |
Declaration of Performance |
- Nominal size (DN) (nennweite): 200
- Cover material (abdeckung_material): Polymer
- Installation situation (einbausituation): floor slab installation
- CE marking (ce_kennzeichnung): yes
- Type of wastewater (abwasserart_de): without sewage
- Type of cover (abdeckungsart): Cover plate
- Length (laenge): 586 mm
- Width (breite): 444 mm
- Backwater protection (rueckstauschutz): Type 1
