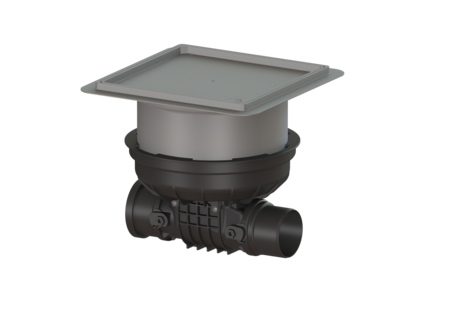

Backwater valve Staufix

DN 100, Floor slab, tileable, Type 1

KESSEL Backwater valve Staufix, wastewater without sewage, nominal size (DN) 100, floor slab installation, type of cover tileable cover plate, a mechanical backwater flap, outside diameter (OD) 110 mm, locking Lock & Lift

  • Simple conversion to Staufix Type 2 or StaufixControl
  • Flexible installation, various covers available for floor slab installation
  • Simple, toolless maintenance and cleaning
Item no. 720100.10X
GTIN 4026092076170
Price group 10

Backwater valve Staufix DN 100, Floor slab, tileable, Type 1
The backwater valve for wastewater without sewage is equipped with one mechanical flap which closes automatically in the event of backwater and also serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second flap or be converted to the StaufixControl backwater valve. Variant Emergency closure: yes Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Backwater protection: Type 1 Dimensions Net weight: 5,9 kg Gross weight: 8,5 kg Groundwater resistant from lower edge of base section: 3 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 8 mm Installation depth: 287 - 410 mm Type of height adjustability: vertically adjustable upper section Length: 444 mm Width: 444 mm Packaging dimension: length: 586 mm Packaging dimension: width: 486 mm Packaging dimension: height: 496 mm Coverage features Type of cover: tileable cover plate Cover material: Polymer Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: K 3 (EN 1253-1) Tightness: surface water resistant Max. flooring height: 16 mm
  Title Item no.
  Title Item no.
  Title Item no.
Extension section deeper installation, with flange 830070 Show
Extension section deeper installation,Flange/mating flange 830073 Show
Extension section Floor slab, for waterproof concrete 830075 Show
  Title Item no.
Battery 3 V for control unit 680665 Show
Seal Cover seal for Staufix DN 90-110 686112 Show
Seal for cover plate, System 330 mm 686114 Show
Seal Lip seal, System 330 mm 686115 Show
Staufix test funnel with seal 70214 Show
Polymer backwater flap Ø 100/110 70231 Show
Slide-in flap housing DN 100, with seal 70241 Show
Lockable cover, DN90-100, emergency clos 72229 Show
Cover plate surface water resistant, black 366x366mm 830050 Show
Spigot DN 100 830100 Show
Socket DN 100 830101 Show
  • Nominal size (DN) (nennweite): 100
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Type of cover (abdeckungsart): tileable cover plate
  • Length (laenge): 444  mm
  • Width (breite): 444  mm
  • Backwater protection (rueckstauschutz): Type 1
