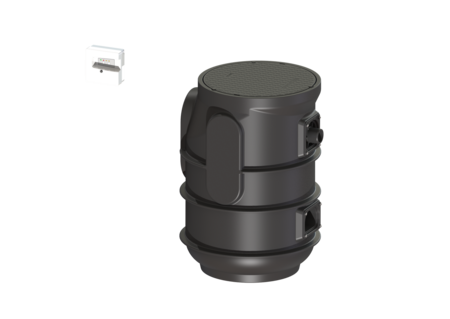

Pumping station Aquapump Small
Tronic, Basic, GTF 1250
KESSEL Pumping station Aquapump Small, Tronic, wastewater without sewage, height 830 mm, control unit function With alarm message, with a submersible GTF 1250 pump, level measurement mechanical, level measurement Float switch
- Including backflow preventer for the pressure pipe
- Including openings for inlet, ventilation and cable duct
- Easy tool-free maintenance
Item no. | 829851 |
---|---|
GTIN | 4026092092996 |
Price group | 20 |
Pumping station Aquapump Small Tronic, Basic, GTF 1250
The pumping station without sewagel wastewater is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for inlet. - tank made of PE, resistant to domestic wastewater - with a pedestrian class cover plate made of polymer - including backflow preventer for the pressure pipe - including openings for inlet, ventilation and cable duct - pump/s with multi-vane impeller for maximum operating reliability Variant Type of system: Single unit Installation: Wet installation Pump control: Control unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Tronic Dimensions Net weight: 22 kg Gross weight: 32 kg Installation depth: 0 - 830 mm Length: 590 mm Width: 590 mm Height: 830 mm Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 954 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet max. scoring (DN): 100 mm Pumping volume: 60 l Coverage features Type of cover: Round cover plate Colour of cover: black Width of cover: 600 mm Length of cover: 615 mm Locking: lockable Load class: up to 300 kg Pumping device Pump: GTF 1250 Number of pumps: 1 Weight, pump: 10 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 5,4 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3mWS) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 20 m³/h Max. pumping height: 11 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Switching level, float switch OFF: 160 Switching level, float switch ON: 260 Length of mains cable for pump: 10 m Control Control unit: Basic Control unit function: With alarm message Motor protection switch: yes Level measurement instrument: Float switch Type of level measurement: mechanical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,45 m Potential-free contact: optional Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Type of fuse required (electrical protection): C 16 A
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
One-handed closure for backflow preventer | 680018 | Show | |
Seal for pressure pipe connection | 680067 | Show | |
Seal for upper section, from 07/2014 | 680150 | Show | |
Pump connection with seal and flap | 680475 | Show | |
Pump connection Minilift, Aqualift S | 680760 | Show | |
Turn fastener for pump connection lock | 680762 | Show | |
Flap housing Duo, with pump connector | 680781 | Show | |
Cover plate round, incl. screws and seal | 680801 | Show | |
Pressure pipe DN 32, GTF 1250 | 680962 | Show | |
Replacement pump GTF 1250 without float switch, 10 m | 680966 | Show | |
Float unit Mono 2 float switches | 680970 | Show | |
Bracket for pressure pipe, Duo | 680972 | Show | |
Pump hanger GTF 1250, Duo | 680974 | Show |
Manuals | |
---|---|
CAD Data | |
Test Reports and Certificates | |
Declaration of Performance | |
Declaration of Conformity |
- CE marking (ce_kennzeichnung): yes
- Type of wastewater (abwasserart_de): without sewage
- Control unit (schaltgeraet): Basic
- TÜV test mark (pruefzeichen): ID 1111241937
- Installation situation (einbausituation): underground installation
- Load class (belastungsklasse): up to 300 kg
- Pump (pumpe): GTF 1250
- Impeller type (laufrad_typ): Multi-vane impeller
